Hot Racing X Maxx Triple Support Direct Drive Conversion, 30 to 25T M1.5

About this part

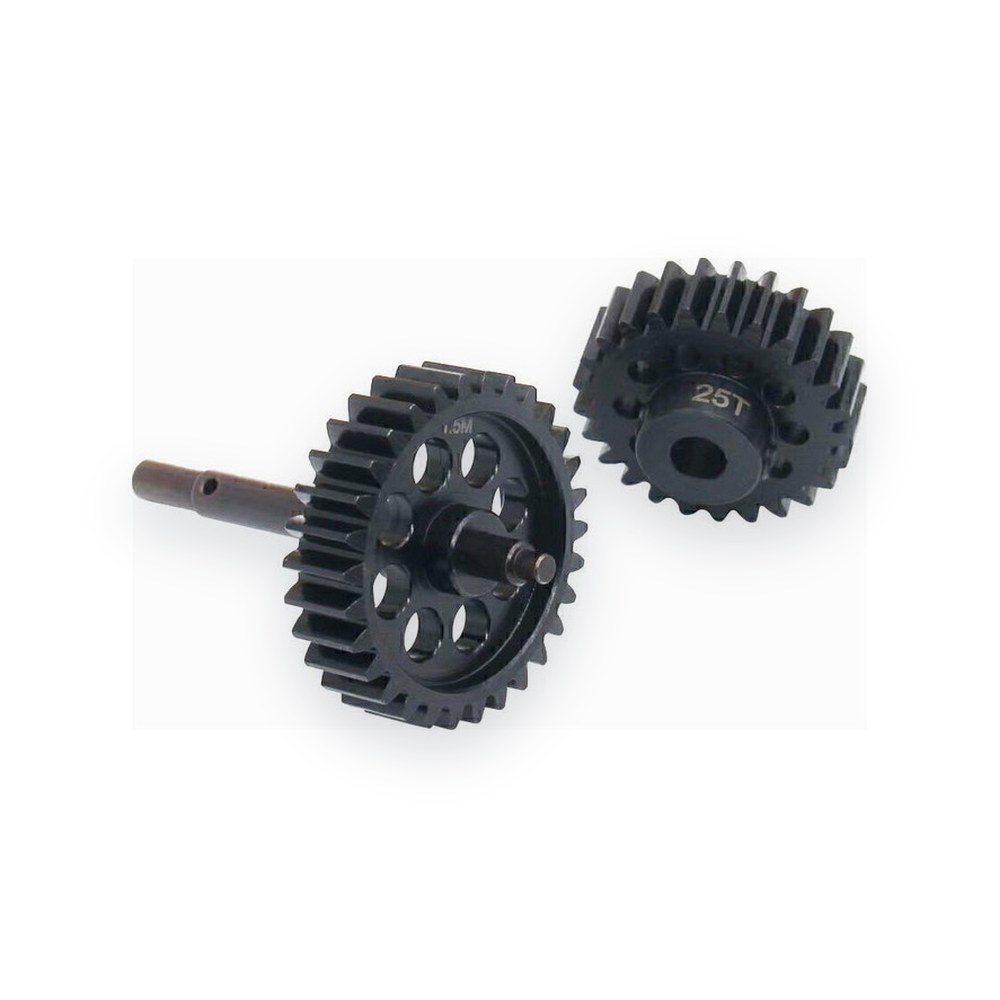

Hot Racing triple support direct drive conversion for the TRA X-Maxx. It replaces the center cush drive elastomer damper and the stock gear system for stronger acceleration. It uses an M1.5 30T spur with an M1.5 25T pinion. FITS: X-Maxx, X-Maxx 8S

Features

• Triple support gear axle
• Blue anodized aluminum bearing support
• CNC machined solid 6061-T6 aluminum
• Designed to reduce rotating mass and improve acceleration, especially on speed runs
• Triple support input shaft

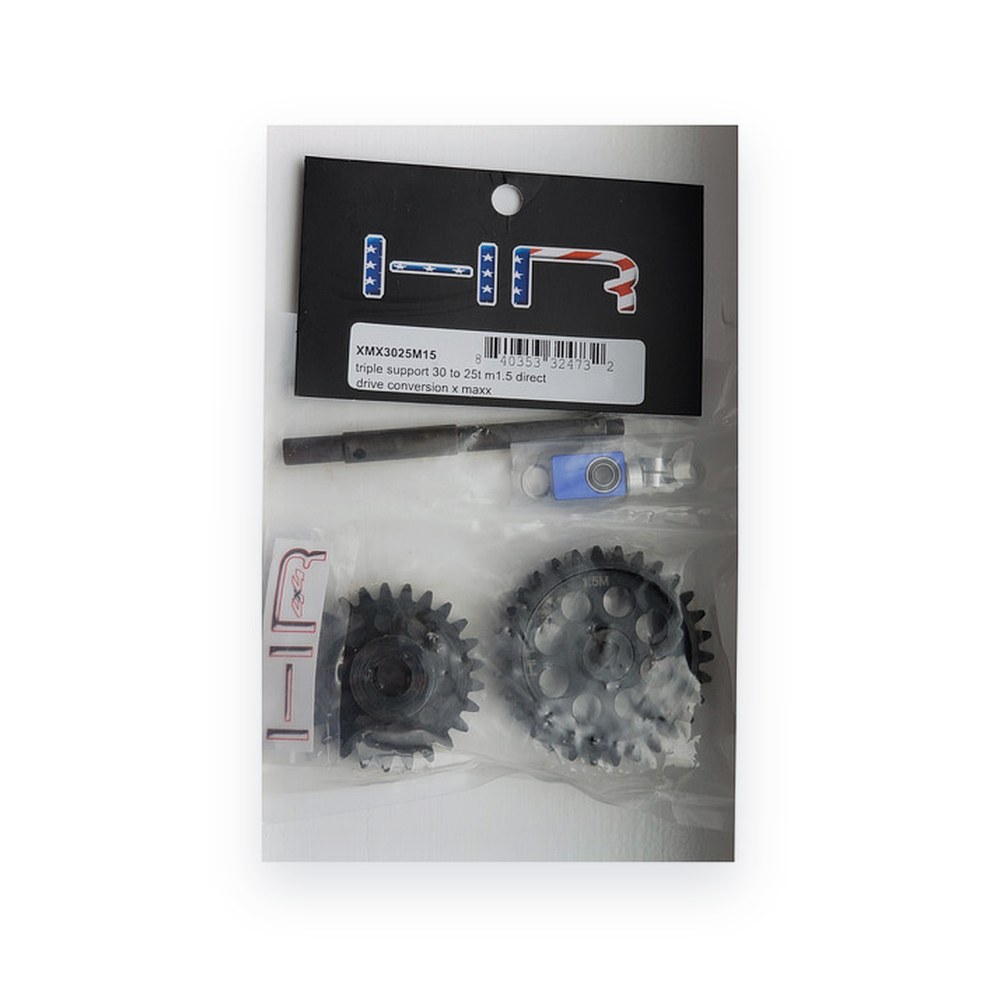

• INCLUDED:
• One (1) third bearing support with bearing
• One (1) steel triple support input shaft
• One (1) steel M1.5 30T spur gear
• One (1) steel M1.5 25T 8mm pinion gear
• Four (4) aluminum 3x6x8mm collars
• Two (2) steel 0.5mm 6x8mm shims
• REQUIRED:
• Medium threadlock (blue threadlocking compound) on the screws
• An adjustable motor mount, such as the XMX38AX01

Specifications

• Overall diameter: 48.2mm (30T spur gear), 40.7mm (25T pinion gear)
• Gear face width: 12mm

Notes

• Not recommended for high traction surfaces.
• To use the stock 5mm motor, you will need the NSG85R08.

Fits
