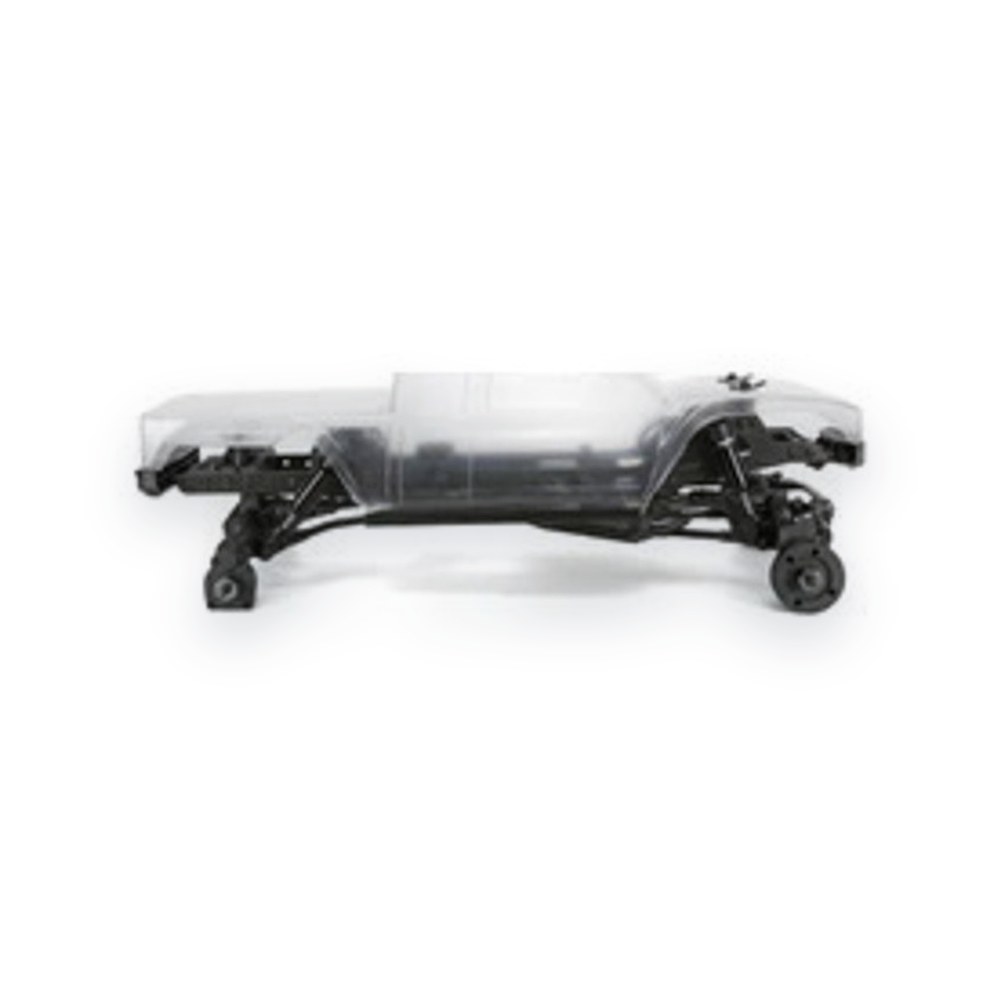

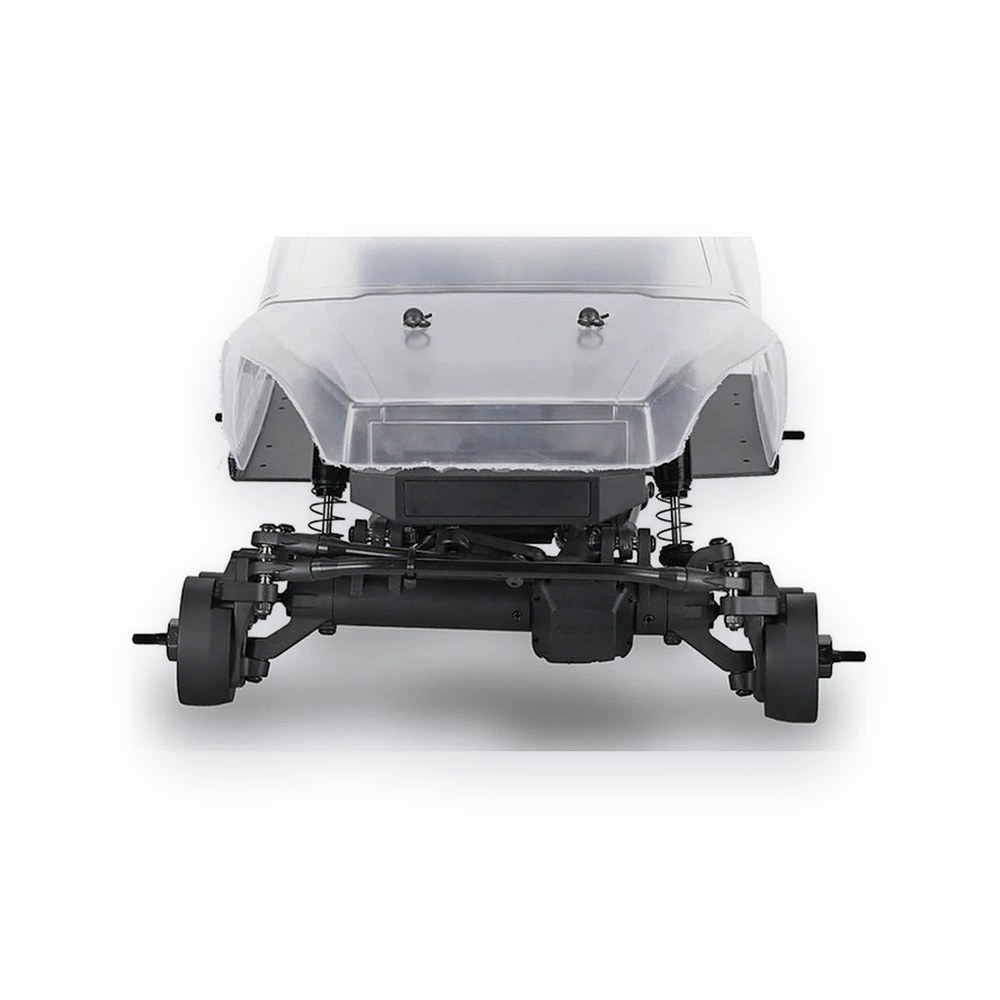

Redcat Vertex-10 Slider 1:10 Scale Pre-Assembled Crawler Chassis Kit

About this part

Fully assembled 1/10 scale rolling chassis from Redcat's Vertex-10 Slider line, built for crawler enthusiasts who want to run their own electronics and drivetrain. A 3mm carbon fiber ladder frame with a motor-forward layout, 10-degree skid angle, and several battery mounting positions allow fine balance tuning. The low-profile body sits 15mm lower than the Vertex-10 RTR for a lower center of gravity and steady handling on steep ground. INCLUDED: 3mm carbon fiber chassis rails, rear shock towers, transmission end plates, and behind-the-axle servo mounts Heavy-duty portal axles with 3:1 portal ratio, high-position hypoid-cut ring and pinion, weighted metal front portal boxes, and 20% total overdrive Steel front and aluminum rear axle tube inserts for weight bias Double-CV joints and high-steer axles (58 steering angle) Aluminum-body oil-filled air-emulsion shocks Splined metal driveshafts with angled ends Tapered links and high-clearance rear links Low-profile unpainted body with decals Fairlead and LED-ready bumper inserts

Requirements

• Outrunner-style motor (36mm diameter, 31mm max length)
• ESC
• Transmitter and receiver
• Steering servo, 25T (2024mm servo horn included)
