Hot Racing Steel Mod 0.6 Pinion Gear, 33t, 5mm

About this part

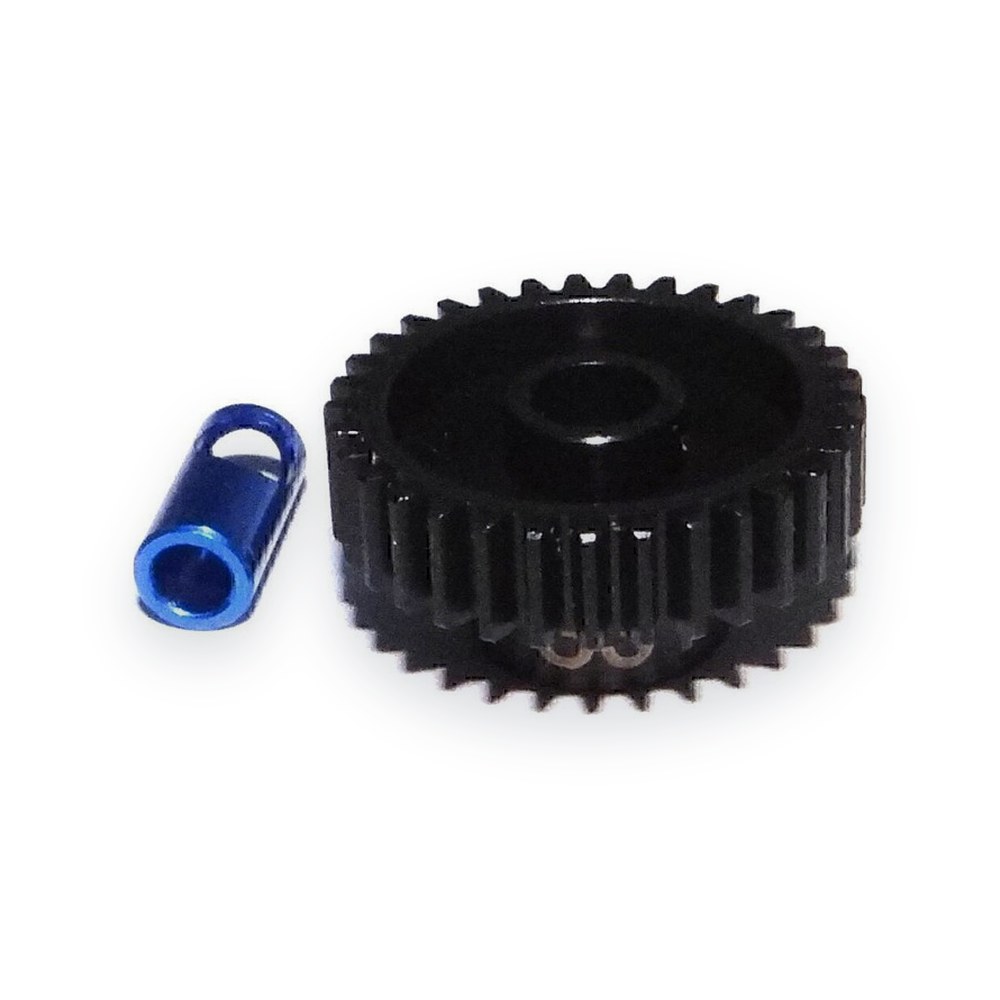

Hot Racing 33-tooth, 0.6 module (about 42P) steel pinion gear for 5mm or 1/8in motor shafts. It is CNC machined from steel with a black nitride finish, and the tooth count is laser marked. The long hub gives maximum contact with the motor shaft.

Features

• Heavy duty 4mm set screw
• Includes a 5mm to 1/8in conversion sleeve for either shaft size

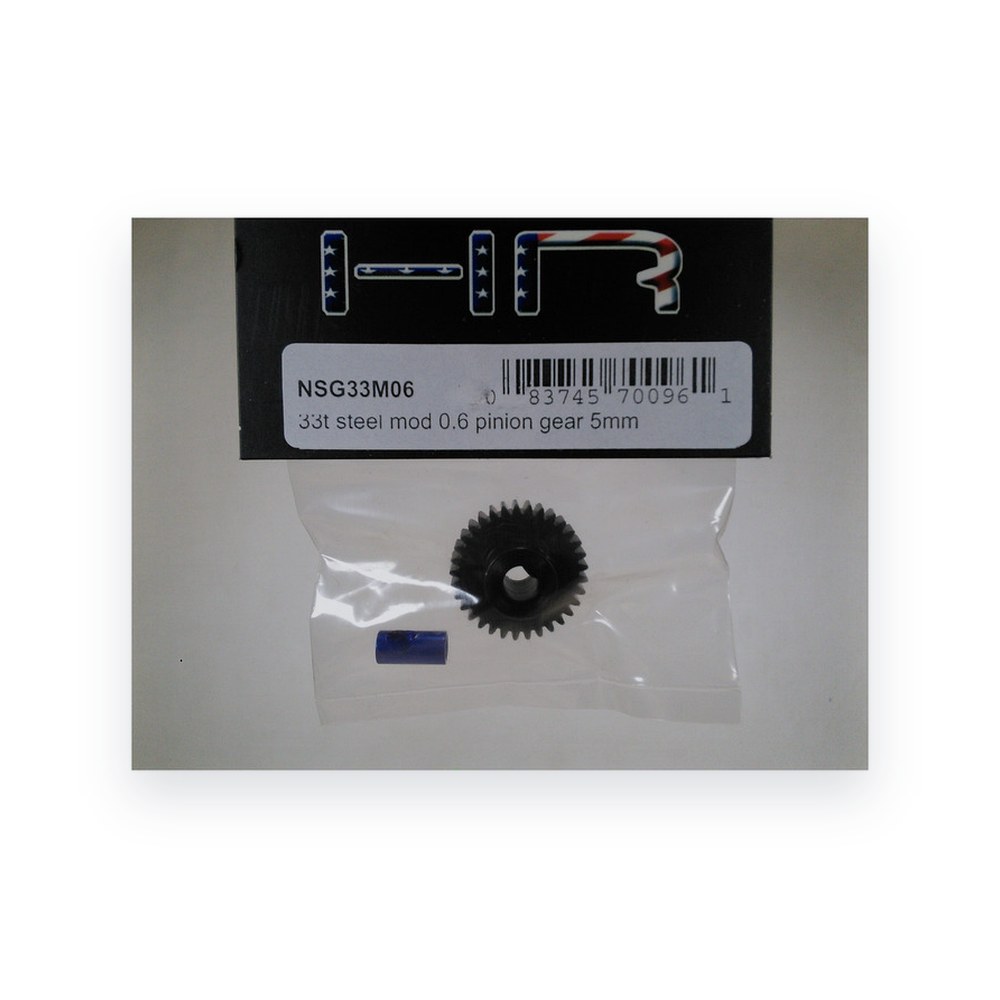

• IN THE BOX:
• One 33T, 0.6 module pinion gear, one M4x4mm set screw, and one 5mm to 1/8in conversion sleeve
• BEFORE YOU START:
• A 2mm hex wrench is needed for the set screw. A removable blue thread lock is recommended on the set screw.

Specifications

• Teeth: 33
• Pitch: 0.6 module (about 42P), length 10.5mm
• Outside diameter: 20.9mm
• Tooth face width: 5mm
• FITS:
• Tamiya TA01
• Tamiya TA02
• Tamiya TL-01
• Tamiya TA02W
• Tamiya TA03
• Tamiya TA01 FF
