Hot Racing Hard Anodized Aluminum Pinion Gear, 20t 48p, 1/8 Inch Bore

About this part

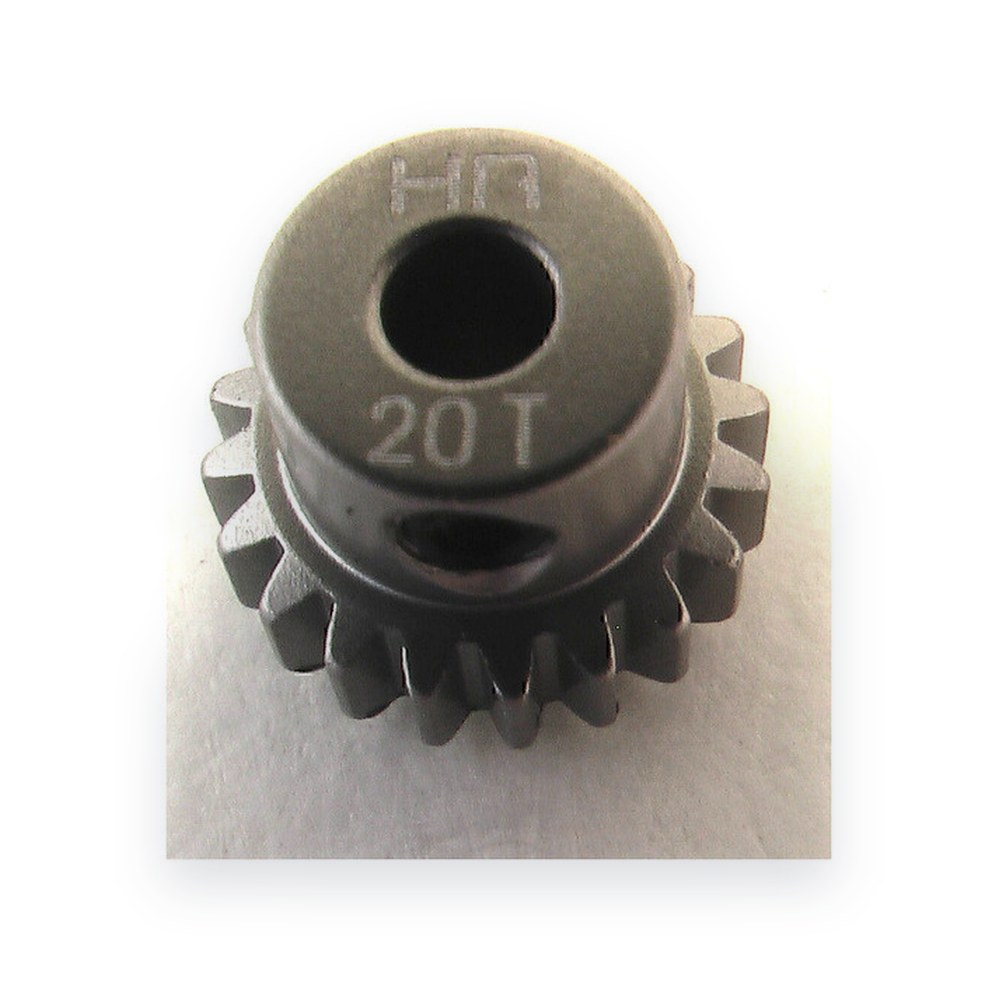

Hot Racing's 20-tooth, 48-pitch pinion gear with a 1/8 inch bore is made from hard anodized 6061 aluminum. It has a short shank, is CNC precision machined, and has its tooth count stamped on the gear for quick identification. The tooth edges are beveled.

Features

• 6061 aluminum construction
• Short shank
• CNC precision machined
• Tooth count stamped on the gear
• Beveled tooth edges

Includes

• One pinion gear
• One pinion set screw

Requirements

• An Allen wrench or ball driver is needed for mounting.

Specifications

• Tooth count: 20
• Tooth pitch: 48
• Width: 9.7mm (0.38")
• Inner diameter: 3.2mm (.125")
• FITS:
• HPI Electric RS4
• HPI Electric Pro 2
• HPI Electric Pro 4
• HPI Electric Sport
• HPI Electric Sport 2
• OFNA OB-4 Sedan

Notes

• Suited to most applications that call for a 48-pitch pinion. Hard anodizing, also called hardcoat, is an electrochemical process that forms a grey layer of hard aluminum oxide on the surface of aluminum parts.
