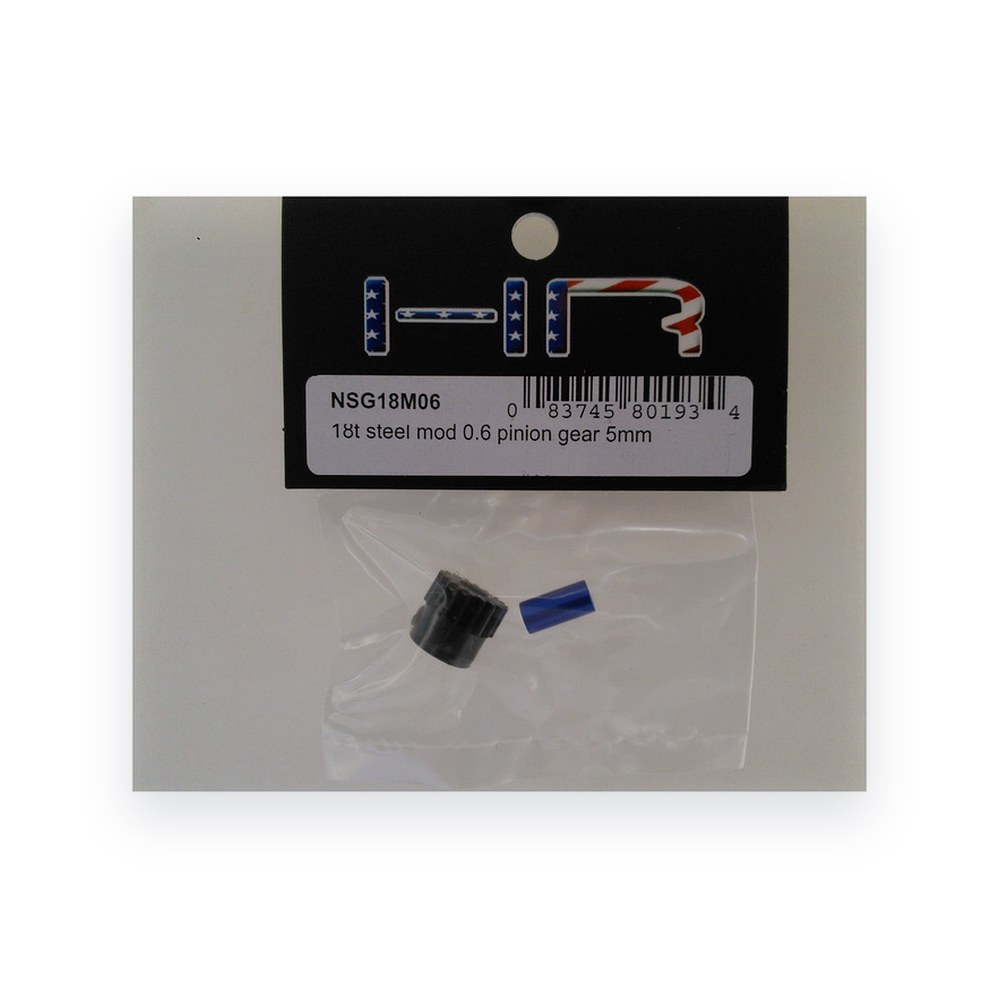

Hot Racing 18t Pinion Gear, Steel, Mod 0.6, 5mm

About this part

An 18-tooth, 0.6 module (~42P) steel pinion gear for 5mm or 1/8in motor shafts. Hot Racing CNC machined steel with a black nitride finish.

Features

• Heavy-duty 4mm set screw
• Long hub for maximum motor shaft contact
• Tooth count laser marked on the gear
• Includes a 5mm-to-1/8in shaft adapter for both shaft sizes
• INCLUDED:
• One 18T, 0.6 mod pinion gear
• One M4x4mm set screw
• One 5mm to 1/8in conversion sleeve

Requirements

• 2mm hex wrench for the set screw
• Removable blue threadlocking compound is recommended on the set screw

Specifications

• Teeth: 18
• Pitch: 0.6 module (~42P)
• Length: 10.5mm
• Outside diameter: 12mm
• Tooth face width: 5mm
• FITS:
• HPI Electric E10
• Tamiya Bruiser
• Tamiya CR-01 Crawler FJ40
• Tamiya F-150/S-10
• Tamiya FF-03
• Tamiya Hi-Lift: F350 Tundra HiLux
