Hot Racing Jato Aluminum 2nd Speed 17t Input Gear for Sjt1000xf06

About this part

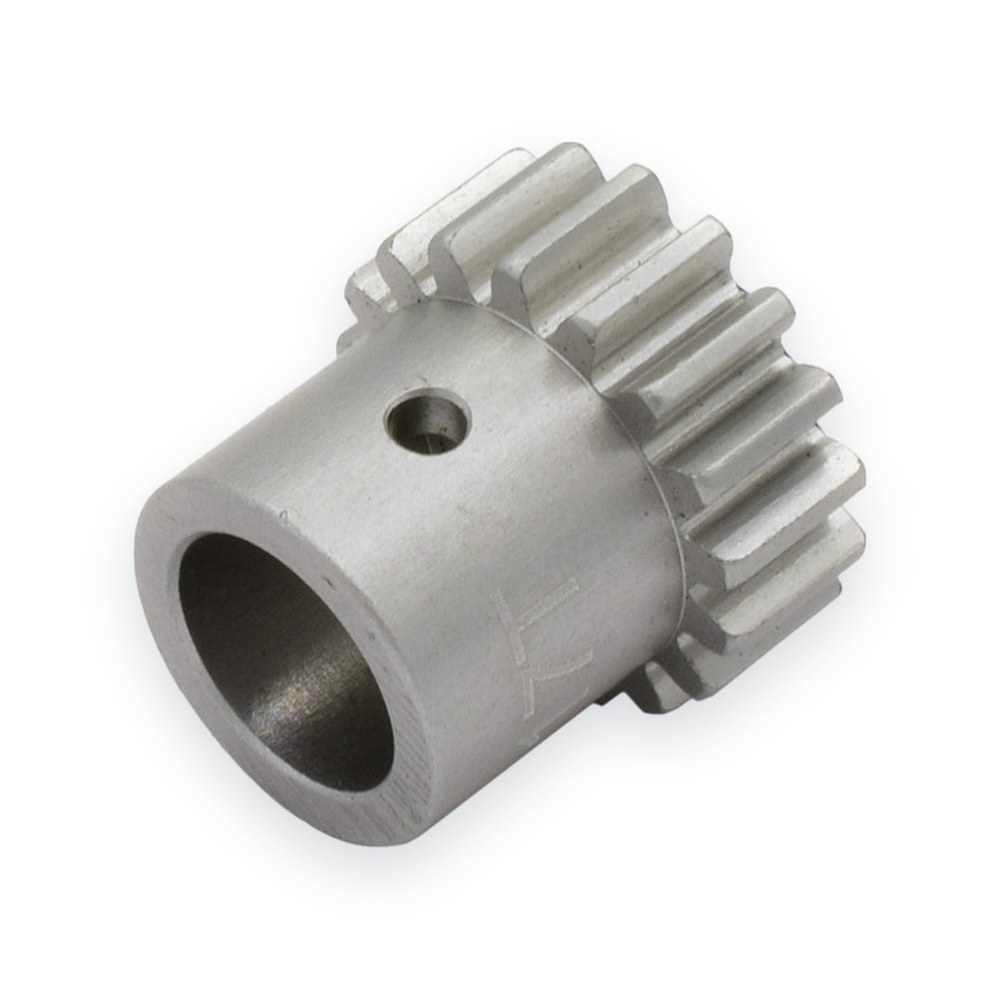

Hot Racing's aluminum second-speed 17-tooth input gear for the Traxxas Jato 2.5 and 3.3. It is made to run with the Hot Racing SJT1000XF06 hardened steel two-speed gear set. The gear is CNC machined from aluminum. One 2nd speed 17T input gear is included.

Requirements

• Hot Racing SJT1000XF06 hardened steel gear set
• Installation into vehicle
• Light coating of grease on the gears

Specifications

• Gear outside diameter: 15mm
• Cylinder outside diameter: 11.5mm
• Inside diameter: 5.1/8.1mm, length 15mm

Notes

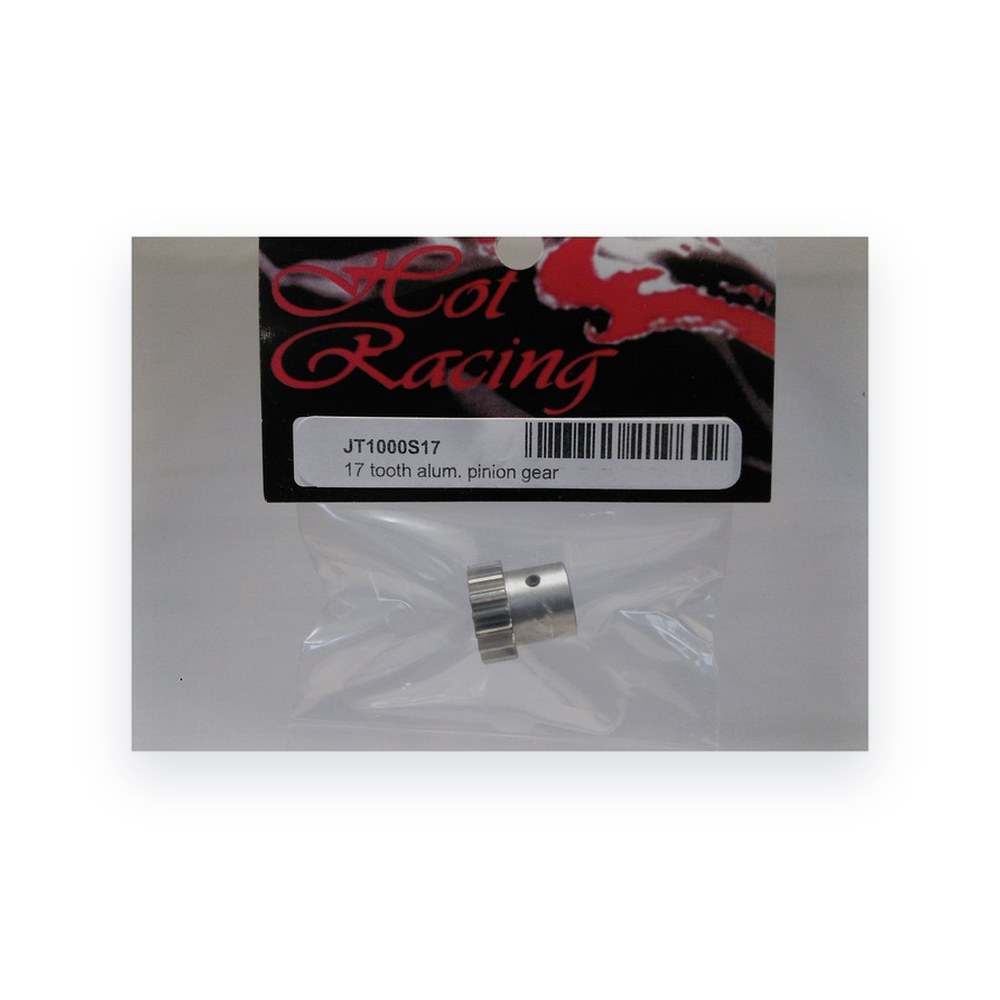

• Compatible with the SJT1000XF06 gear set and mates with Hot Racing SJT1000F14. The steel 17T gear is Hot Racing SJT1000S17.
