Hot Racing 2-Speed Transmission Conversion for SCX2

About this part

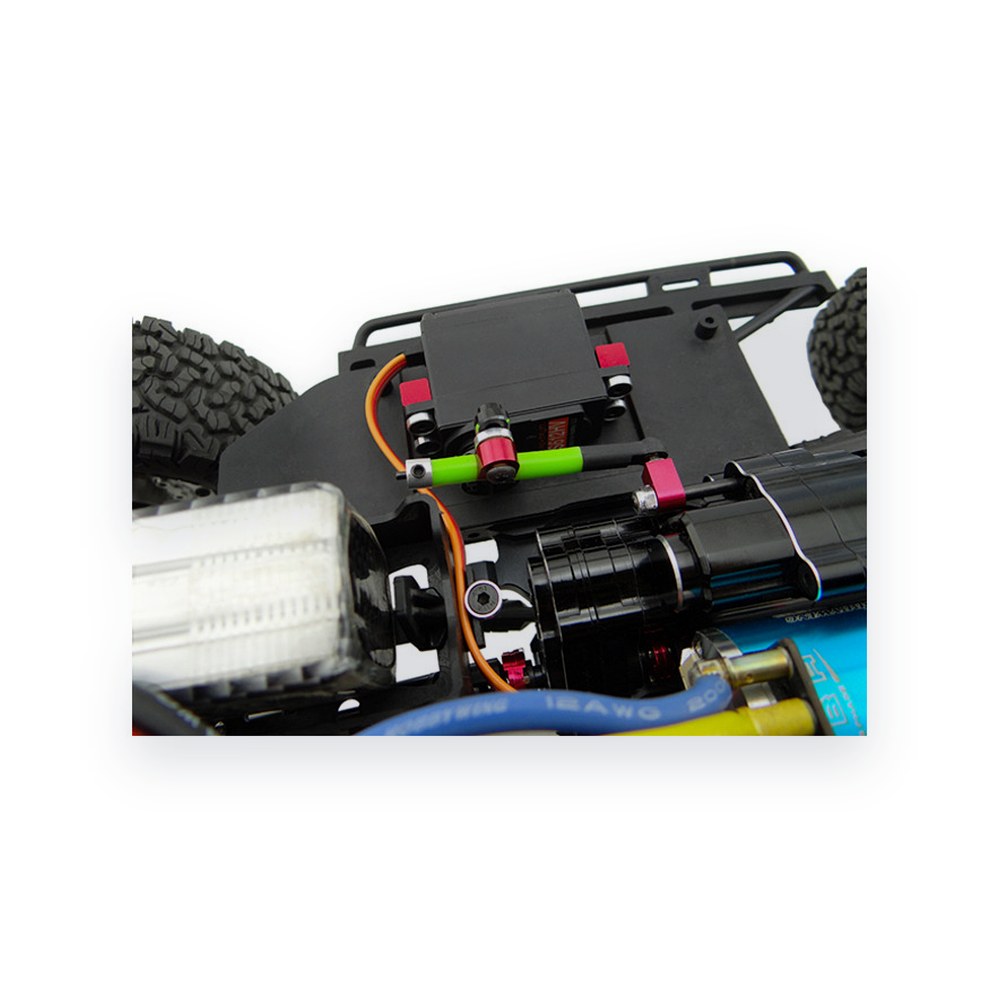

Hot Racing two speed transmission conversion kit for the Axial SCX10 II. It gives the crawler a very low first gear for slow, high torque climbing and a second gear for higher top speed. The shift is made from the transmitter, which requires a shift servo sold separately. Once a servo is fitted, the gear change can be handled from the radio.

Features

• Two speed remote shifting with a servo (sold separately)
• First speed 2:1 crawling gear
• Second speed 1.1:1 speed gear
• Hardened CNC machined steel gears and shift dog
• CNC machined aluminum servo mounts
• Sealed ball bearings
• Direct fit with an SCX10 II that uses either the Axial two speed transmission case or the Hot Racing SCXT3801 two speed aluminum case
• INCLUDED:
• One (1) 36T gear with bearings
• One (1) 28T gear with bearings
• One (1) 26T gear
• One (1) 18T gear
• One (1) sliding shift dog
• One (1) shift fork

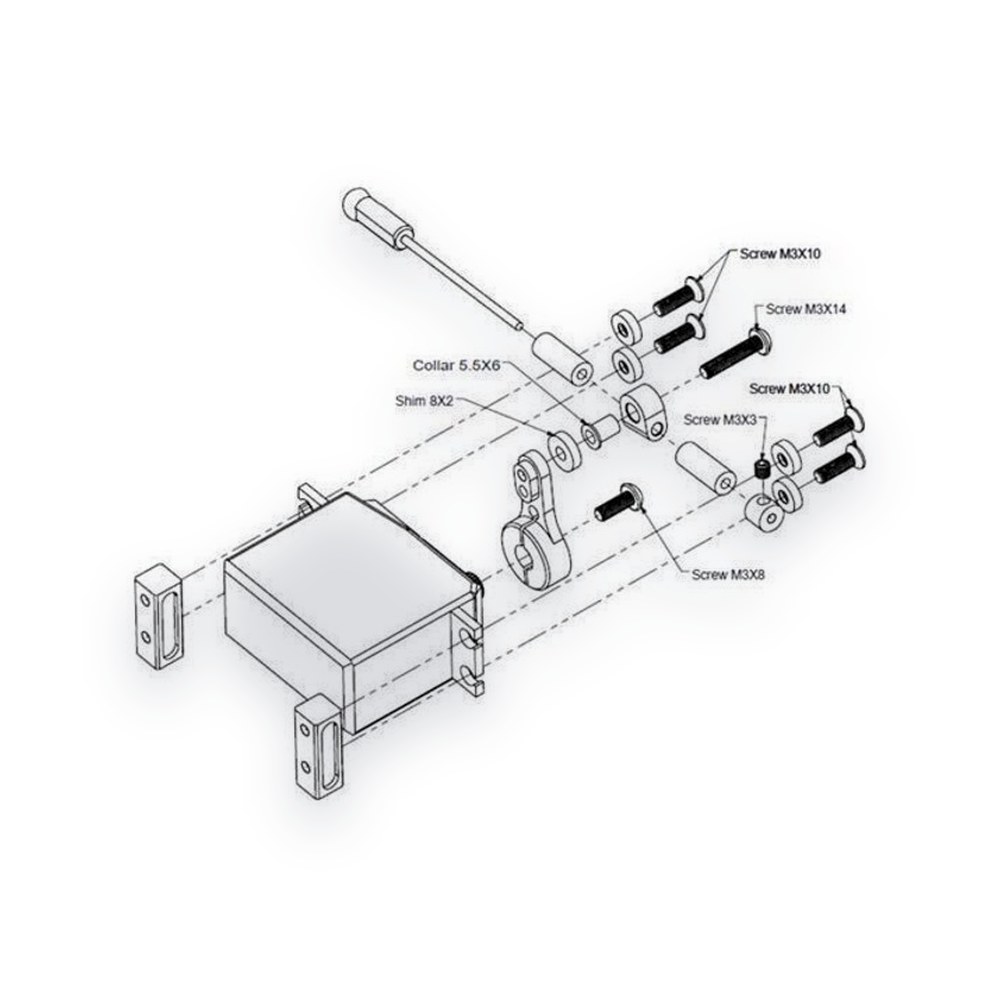

• Servo mounts
• Hardware

Specifications

• First gear ratio: 2:1 (18T to 36T)
• Second gear ratio: 1.1:1 (26T to 28T)

Requirements

• This is not an automatic transmission. The conversion needs a standard 1/10 size shift servo, a servo arm, and an extra radio channel.
• For use with an SCX10 II fitted with either the Axial two speed transmission cas

Fits
