Hot Racing ECX 1:10 2WD 4WD Aluminum Servo Arm, 23T

About this part

This single-arm aluminum servo horn from Hot Racing fits both 1/10 ECX 2WD and 1/10 ECX 4WD vehicles. It is CNC-machined from 6061-T6 aluminum and anodized blue. It works with JR KO Airtronics and Sanwa servos that have a 23-tooth spline.

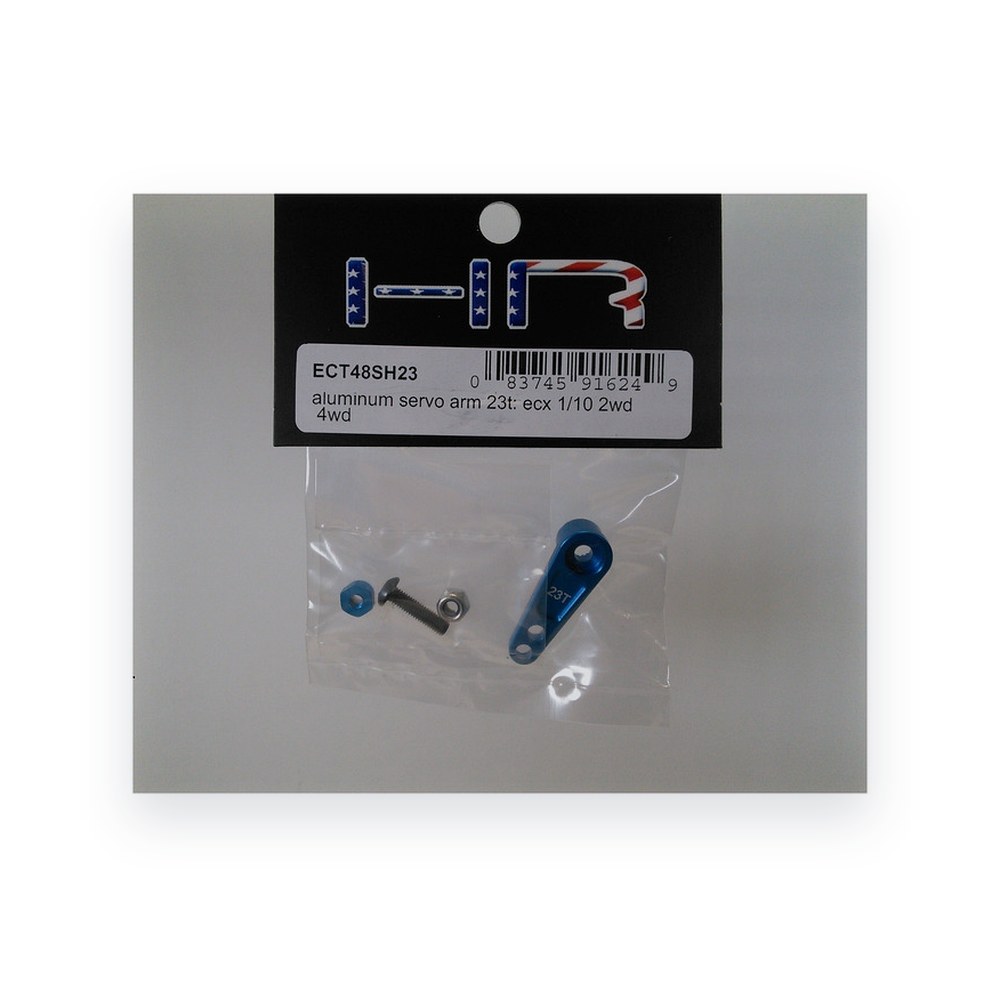

You will receive

• One blue single-arm servo horn
• One blue 4-40 mini lock nut, for 2WD
• One M3 x 12mm screw, for 4WD
• One silver M3 lock nut, for 4WD

Requirements

• A 23-spline servo.

Specifications

• Hole A distance: 18mm
• Hole B distance: 16mm
• Total thickness: 7.0mm
• Arm thickness: about 4mm
• Arm length: about 28mm
• Spline: 23T
• Material: 6061-T6 aluminum
• Two 3mm linkage holes

Notes

• Replaces part of ECX1028 or ECX 231013.
• In 4WD use, the servo saver function is not available.
• FITS:
• ECX 1:10 Circuit Stadium Truck, ECX 1:10 Ruckus Monster Tuck, ECX 1:10 Boost Buggy, ECX 1:10 Torment Short Course, ECX 1:10 4WD Circuit Stadium, and ECX 1:10 4WD Ruckus Monster.

Fits

Replaces stock part
