SH125LF01Hot Racing Double Lock Servo Horn Arm, 25T, Futaba/TRA/Savox
Hot Racing Radio Accessories
$15.52
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

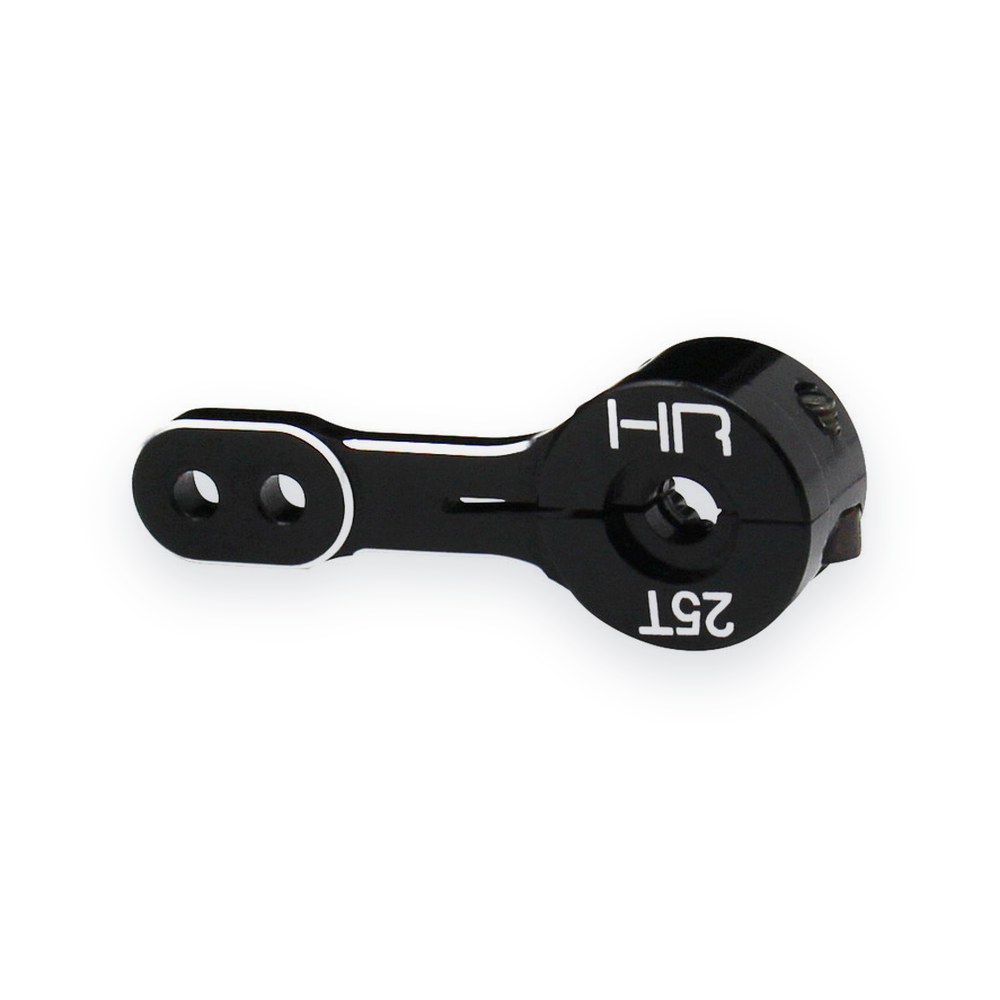

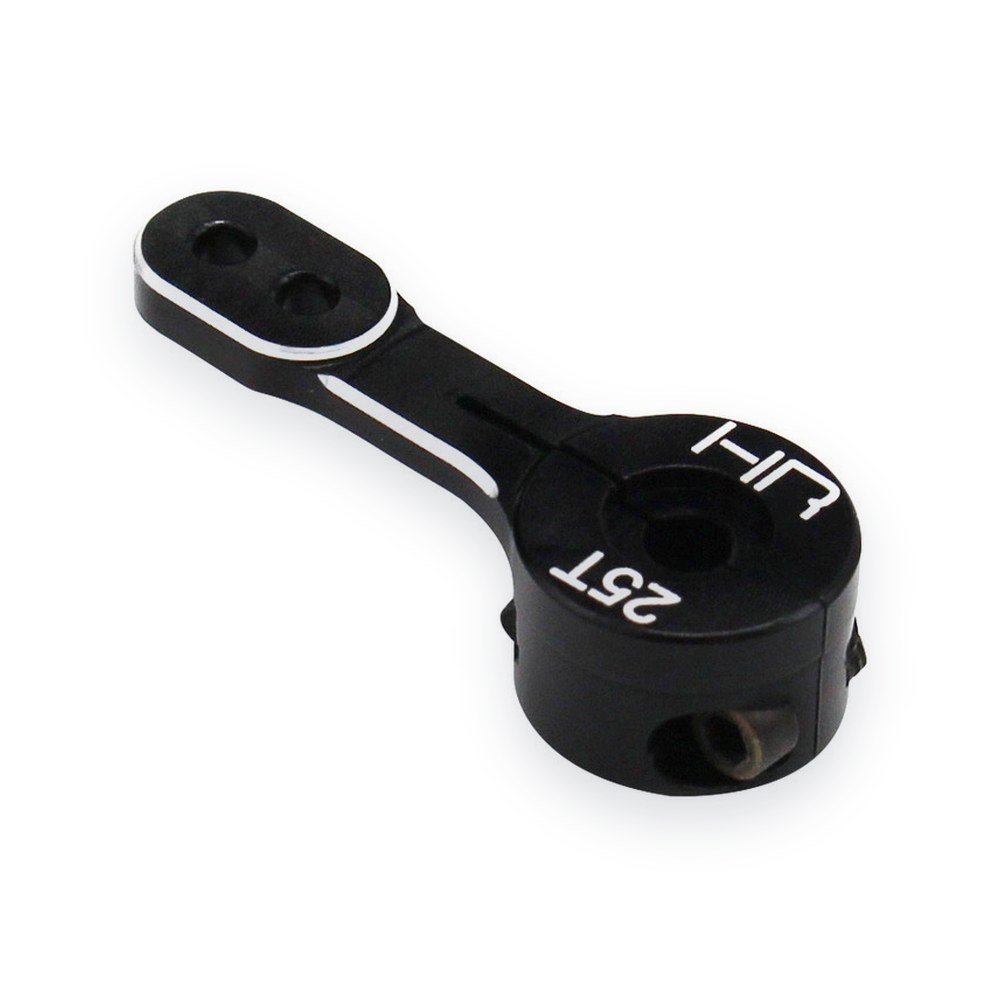

Hot Racing double clamp servo horn for 25 spline servos, including Futaba, TRA, Savox, Orion, and ProTek. The double lock clamp gives a precise, secure fit. It is CNC machined from 6061 aluminum and anodized black, with two 2mm holes that can be tapped or drilled as needed. The arm is about 31mm long and 2mm thick.
Features
- Double lock clamp for a precise, secure fit
- CNC machined 6061 aluminum, anodized black
- Two 2mm holes to be tapped or drilled as needed
You will receive
- One 25 tooth servo horn
- Two M2x4mm socket head cap screws for the clamp
Requirements
- 25 spline servo (Futaba, TRA, Savox, Orion, or ProTek)
- Servo screw
- Thread lock adhesive
Specifications
- Hole A distance: 18mm
- Hole B distance: 22mm
- Thickness, front to rear: 7.0mm
- Material: 6061-T6 aluminum
- Spline: 25T
- Arm thickness: about 2mm, length about 31mm
- FITS:
- Associated Mini MGT 3.0 RTR
- Associated MTA4, Monster GT, Monster GT 4.6
- Associated RC-10 GT Black Tub
- Associated RC-10GT Factory Team, RTR Plus
- Associated RC-10GT2
- Associated RC-8 buggy
