Hot Racing Heavy-Duty Big Bore Shocks, Aluminum 110mm (2)

About this part

Hot Racing 110mm big bore threaded aluminum shocks for TRA and other 1/10 scale off-road vehicles that use 110mm shocks. Each one ships fully assembled and only needs shock oil and bleeding.

Features

• CNC machined 6061-T6 billet aluminum bodies, collars, caps and spring retainers, with 'Big Bore' threaded bodies
• CNC machined 11mm Delrin pistons
• 3.5mm stainless steel shafts
• Gunmetal and blue anodized components
• Vented shock caps with bladder seals for consistent rebound damping
• Threaded collars with o-rings to prevent unwanted movement
• Composite lower shock ends with aluminum balls

You will receive

• Two (2) assembled shocks
• Two (2) M3x20mm flat head cap screws
• Two (2) M3x18mm button head cap screws
• Two (2) 3mm countersunk washers
• Two (2) 5.9 hollow balls
• Four (4) 1.5mm thick spacers
• Four (4) 3mm thick spacers

Requirements

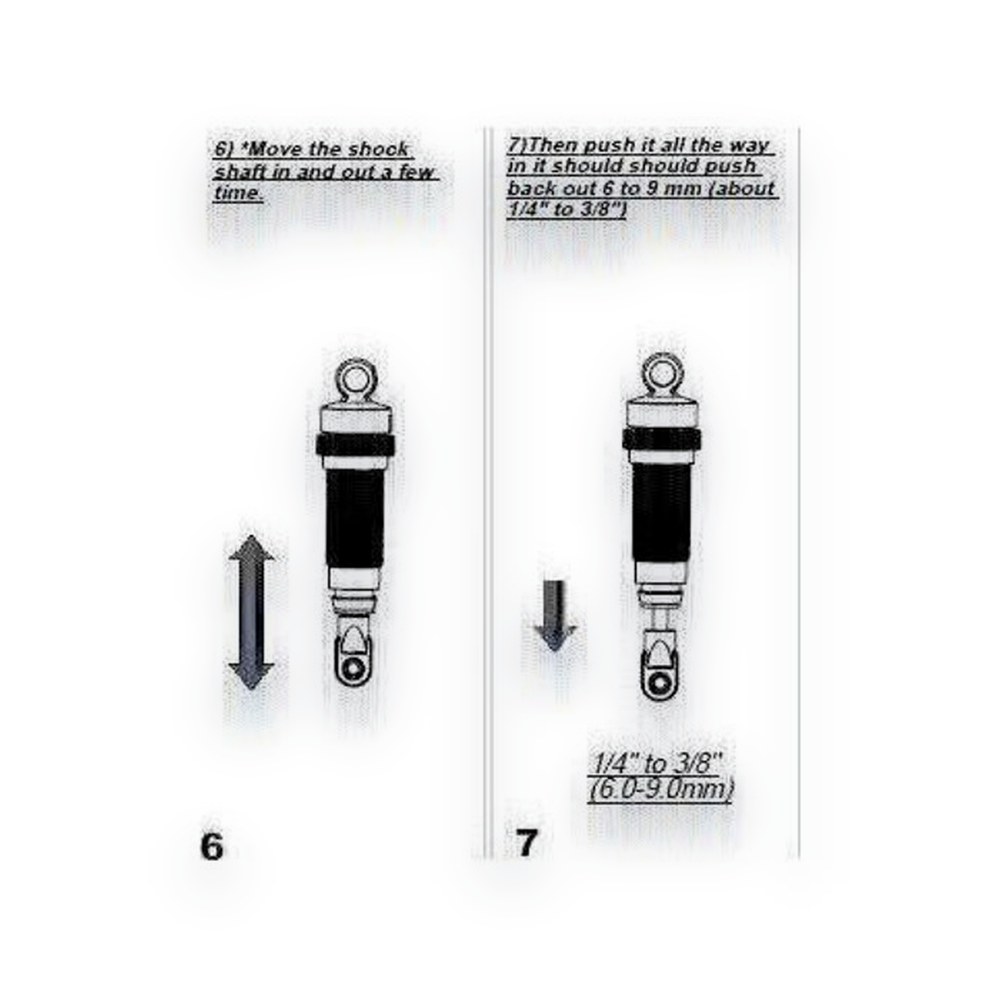

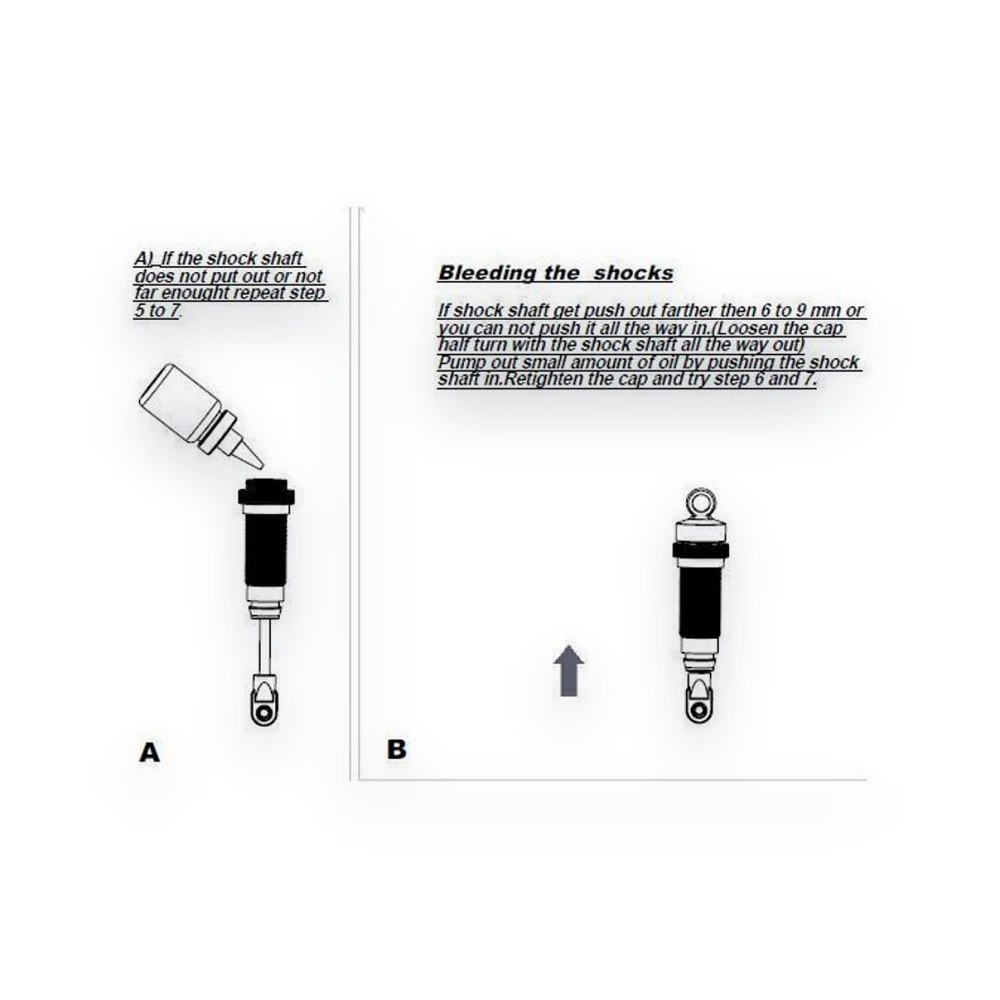

• Silicone shock oil of the modeler's choice, with bleeding done per the typical bladder shock procedure
• Team Associated Green Slime grease or shock o-ring grease is recommended when rebuilding the lower seal
• Snap ring pliers are needed to rebuild the lower seal

Specifications

• Extended length: 110mm
• Compressed length: 75mm
• FITS:
• ECX 1:10 Circuit Stadium Truck,

Fits
