Hot Racing Scale Shocks, Aluminum Internal Spring, 100mm (2)

About this part

Scale aluminum internal spring shocks for scale and rock crawling builds. The three included spring options keep the look scale while still giving working damping. They can run with or without silicone shock oil.

Features

• CNC machined aluminum bodies, lower cap and shock end
• 3mm stainless steel shafts
• Steel pivot balls with brass pivot cups
• 2-hole machined pistons

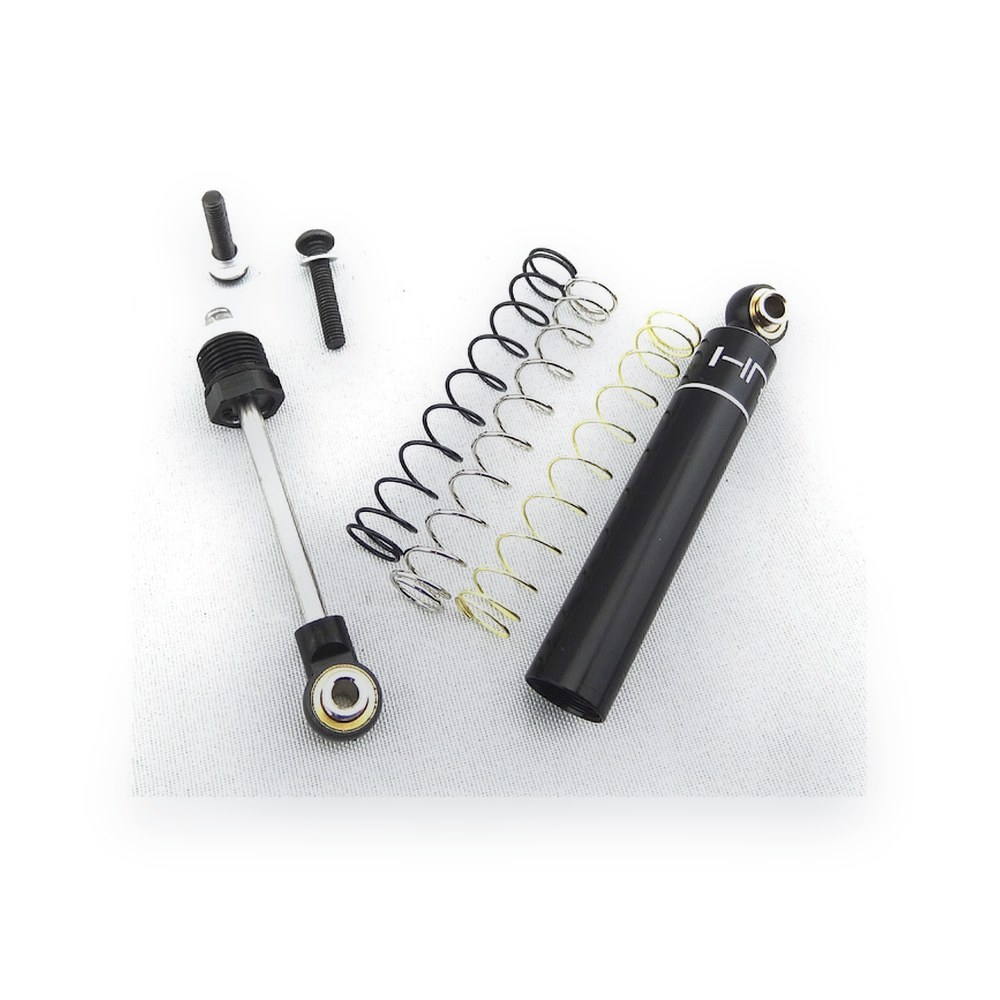

You will receive

• Two (2) shocks
• Three (3) spring options, one pre-installed
• Hardware pack

Requirements

• Installation

Specifications

• Extended length (hole to hole): 100mm
• Travel: about 29mm
• Shaft diameter: 3mm
• Shock body diameter: 10mm
• Eyelets for 3mm screws

Note

• These shocks have no bladders, so with shock oil they act as emulsion-type shocks. Leave enough free space in the shock for the oil the shaft displaces on compression.
• The 90mm version is Hot Racing TD90Z01.
• FITS:
• Axial AX-10 Scorpion Crawler, Axial SCX-10 Scale Truck, Axial XR10 Crawler, Axial Wraith 4WD Rock Racer RTR, RC 4WD 1:10 Trail Finder 2
