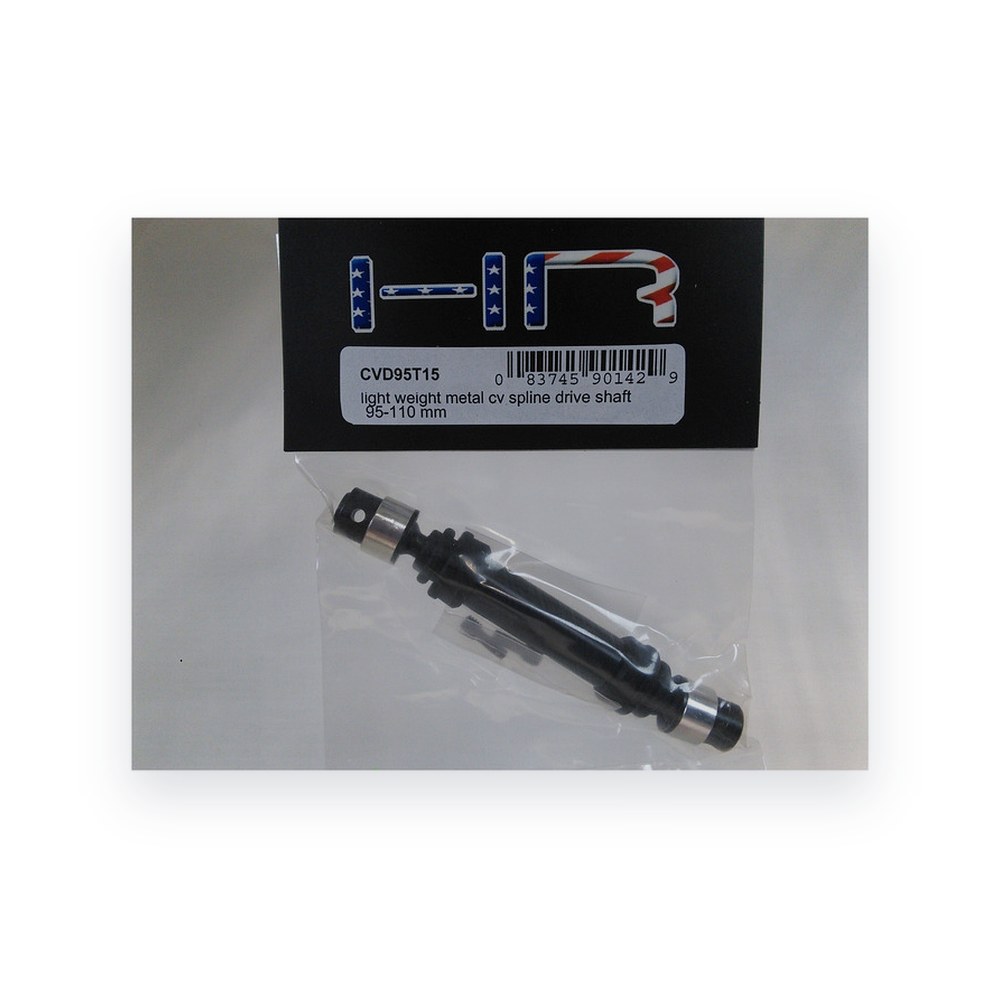

Hot Racing CV Splined Drive Shaft, Lightweight Metal, 95-110 mm

About this part

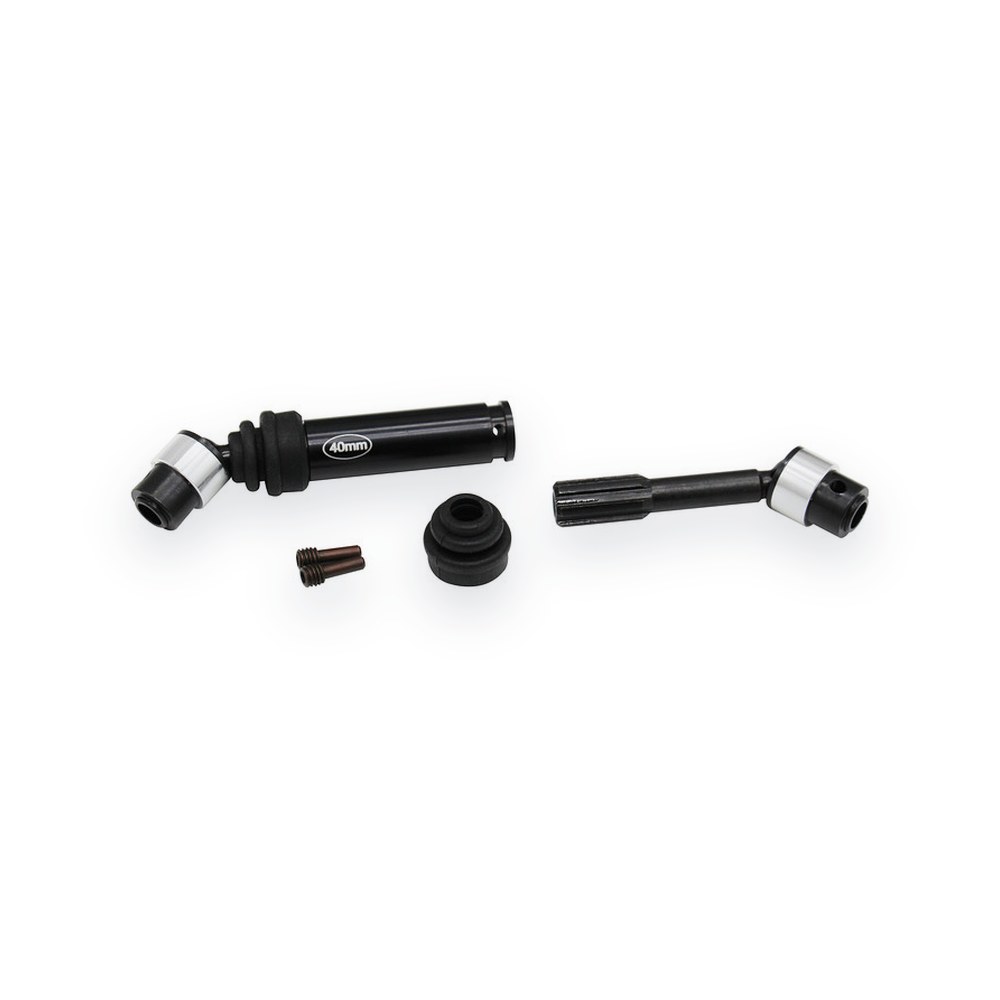

Hot Racing's heavy duty spline star drive axle kit is an upgrade for the SCX II, SCX III and TRX4. It replaces the factory plastic drive axles with CNC machined steel and aluminum parts.

Features

• CNC machined #45 hardened carbon steel and aluminum
• Hard black anodized aluminum slider
• Silver anodized aluminum pin capture rings with rubber o-rings to prevent movement
• CV pin setscrew eliminated by design
• Black #45 steel finish
• Rubber dust boot for protection from the elements
• INCLUDED:
• One rear CV splined drive shaft assembly

Requirements

• Removable blue threadlocking compound on screws that thread into metal
• Light grease on CV joints and slider splines to help them last

Specifications

• Weight: 35g
• Approximate collapsed length: 95mm
• Approximate extended length: 110mm

Notes

• For the Axial SCX 2 front, Axial SCX with Hot Racing 2 speed gearbox, Axial Wraith with Hot Racing 2 speed gearbox and TRA TRX 4 front. Replaces factory plastic parts. The listing says replacement parts are included but does not name them.
• FITS:
• Axial SCX-10 Scale Truck, Axial Wraith 4WD Rock Racer RTR, Axial SCX-10 II, Traxxas TRX-4 1:10 scale & trail crawler, Axial SCX-10 II RTR, Axial Capra
