Hot Racing Yeti XL Factory Spec Dual Spring Set

About this part

Hot Racing optional tuning spring set for dual spring coilover shocks on the 1/8 Axial Yeti XL. Each shock uses a tender spring and a main spring. The tender spring gives a soft response at the start of the stroke for small bumps, and the main spring adds stiffness for larger compression on big jumps. Together they help the tires stay in contact over uneven ground. The set allows 9 spring combinations for tuning body roll in corners and squat and dive under acceleration and braking.

Features

• Steel construction, with three colors indicating stiffness

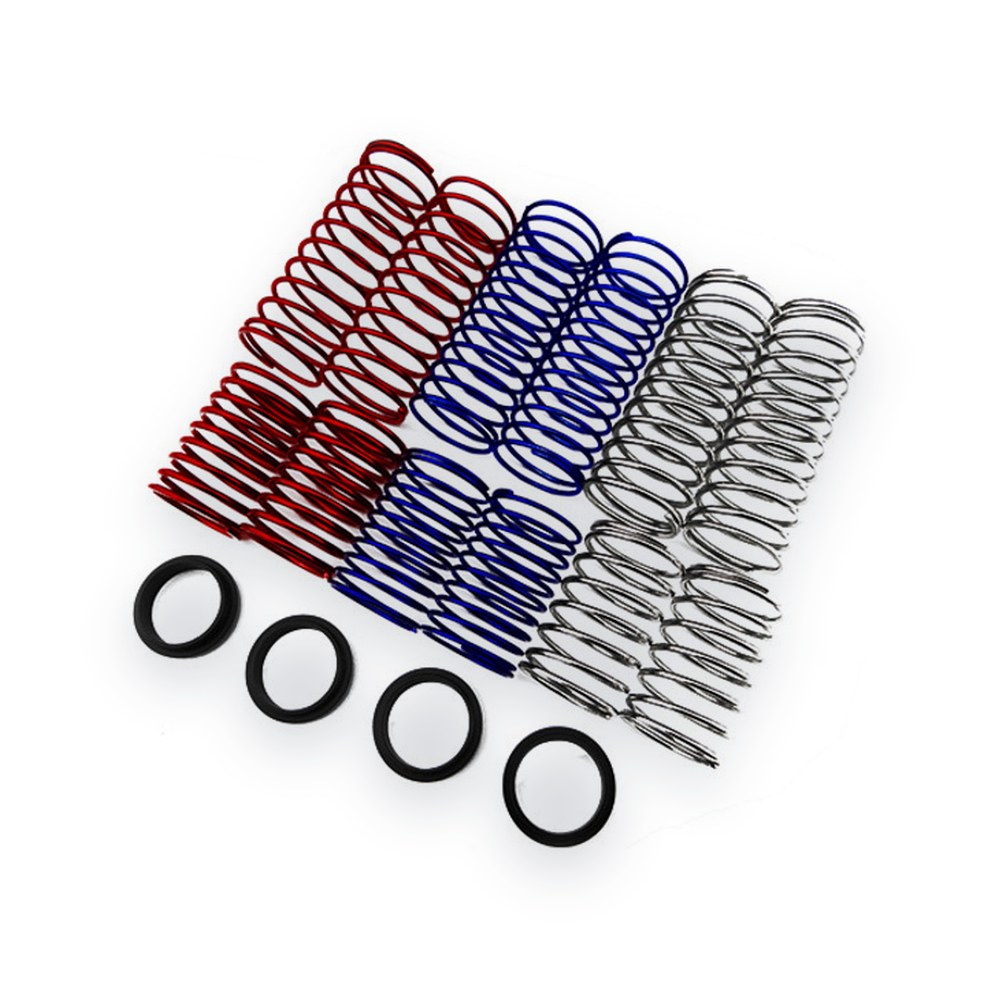

• IN THE BOX:
• Two (2) soft tender springs (blue)
• Two (2) medium tender springs (chrome)
• Two (2) hard tender springs (red)
• Two (2) soft main springs (blue)
• Two (2) medium main springs (red)
• Two (2) hard main springs (chrome)
• Four (4) machined Delrin spring collars

Requirements

• Installation

Specifications

• Tender springs: 40mm long, 23mm ID
• Blue: 10 coil, 1.4mm wire, 1.7 lb/in
• Chrome: 8 coil, 1.7mm wire, 5.2 lb/in
• Red: 11 coil, 2.0mm wire, 7.6 lb/in
• Main springs: 70mm long, 23mm ID
• Blue: 14 coil, 1.5mm wire, 1

Fits
