Hot Racing Tra 1/16 Steel Helical Spiral Gear Set, with Aluminum Cover Plate

About this part

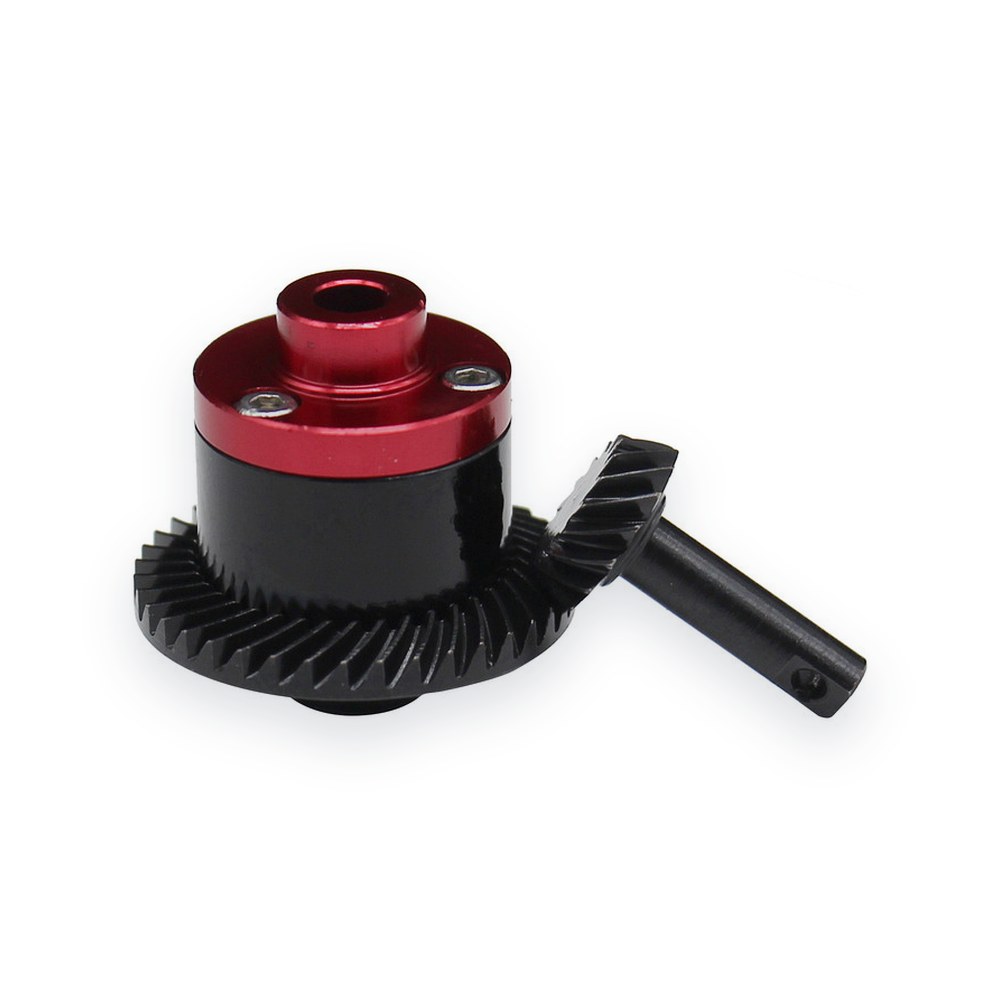

Steel helical spiral differential gear set for TRA 1/16 4x4 vehicles, including the E-Revo, Slash 4X4, and Summit. It works in the front or rear differential.

Features

• CNC machined aluminum and hardened high-carbon steel construction
• Aluminum carrier cover plate, anodized red
• Precision-machined helical spiral cut gears, stronger and smoother than factory bevel gears

You will receive

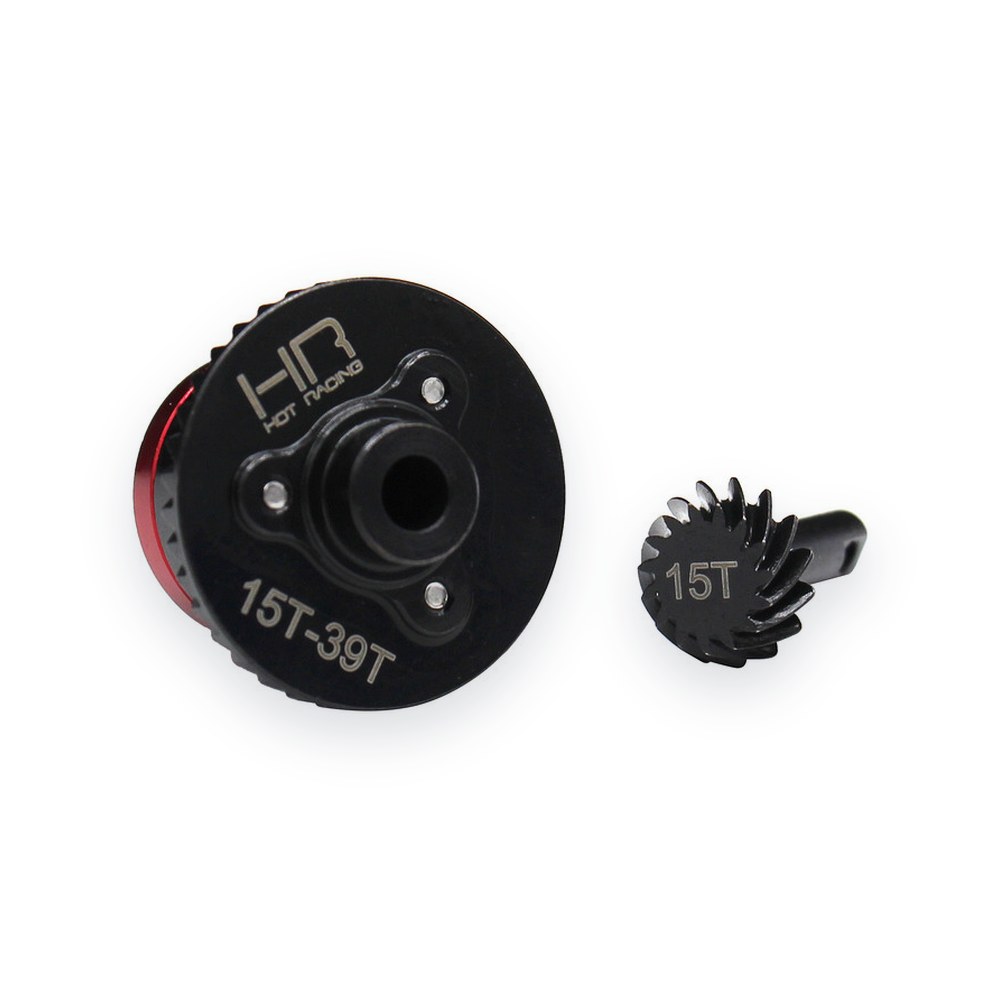

• One (1) steel 39T ring gear
• One (1) steel 15T pinion gear
• One (1) aluminum carrier
• One (1) aluminum carrier cover plate

Requirements

• Two sets per vehicle
• Reuses TRA 7082 internal spider and carrier gears, plus the output shaft seal and outdrives from the original differential
• May need shimming for proper mesh. Gears should run freely, without play or binding. If shimming is needed, use Hot Racing W4X shim.
• Removable threadlocker (blue) on carrier screws
• Differential grease (Spl10G02)

Specifications

• Carrier width: ~23mm
• Carrier bearing boss diameter: 8mm
• Pinion length: ~19.5mm

Comments

• Does not include inner differential gears.
• Replaces TRA 7

Fits

Replaces stock part
