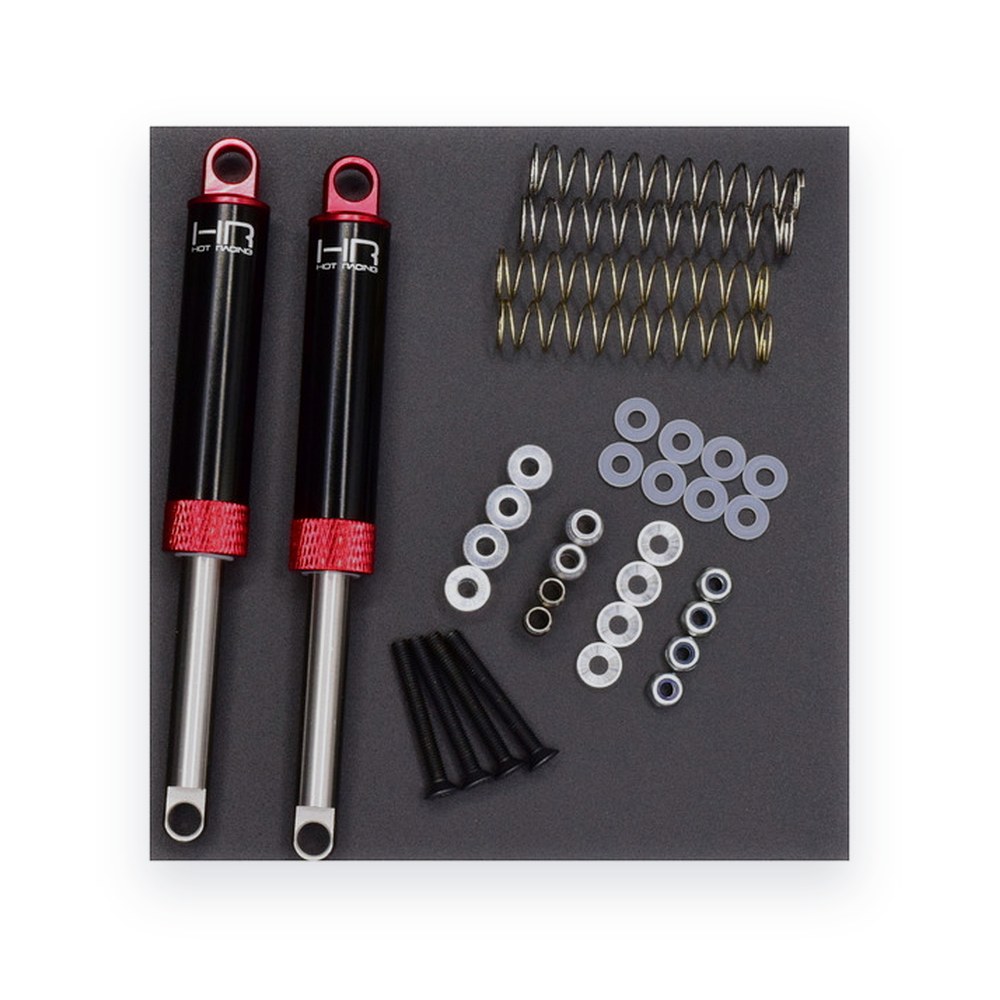

Hot Racing Air Shocks, Red Internal Spring, 100mm

About this part

A set of 100mm internal spring air shocks for rock crawlers and custom builds. These match the black shock bodies of the series, but the upper and lower caps are anodized red.

Features

• CNC machined aluminum bodies, black anodized
• Upper cap with o-ring seal, red anodized
• Lower cap with shaft guide, red anodized
• Precision machined 7mm stainless steel shaft
• Double o-ring lower shaft seal
• Air damping
• Internal springs in gold (soft), black (medium) and silver (stiff)
• All aluminum is anodized for durability and corrosion resistance

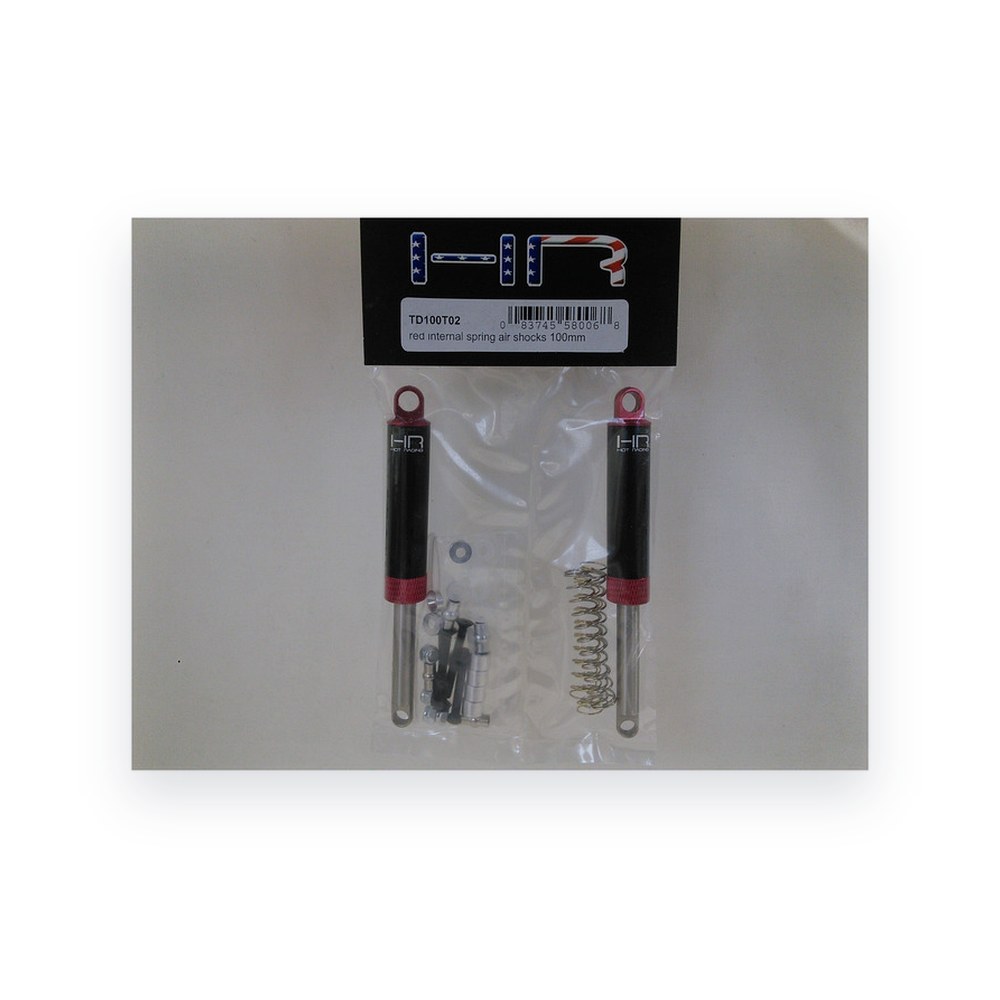

You will receive

• Two (2) assembled shocks
• Two (2) gold (soft) springs
• Two (2) black (medium) springs
• Two (2) silver (stiff) springs
• Two (2) 4.8mm ball mounts
• Two (2) 5.8mm ball mounts
• Four (4) 5x7mm offset spacers
• Four (4) 3mm countersunk washers
• Four (4) 3x25mm flat head cap screws
• Eight (8) 3mm o-rings
• Four (4) lock nuts

Requirements

• Installation on vehicle
• Team Associated Green Slime ASC1105 is recommended on the lower o-ring seals

Specifications

• Extended center to center length: 100mm (3.9 inch)
• Compressed center to center length: 68mm (2.7 inch)
• Overall length: 108m
• FITS:
• Axial AX-10 Scorpion Crawler, Axial SCX-10 Scale Truck, HPI Electric Wheely

Fits
