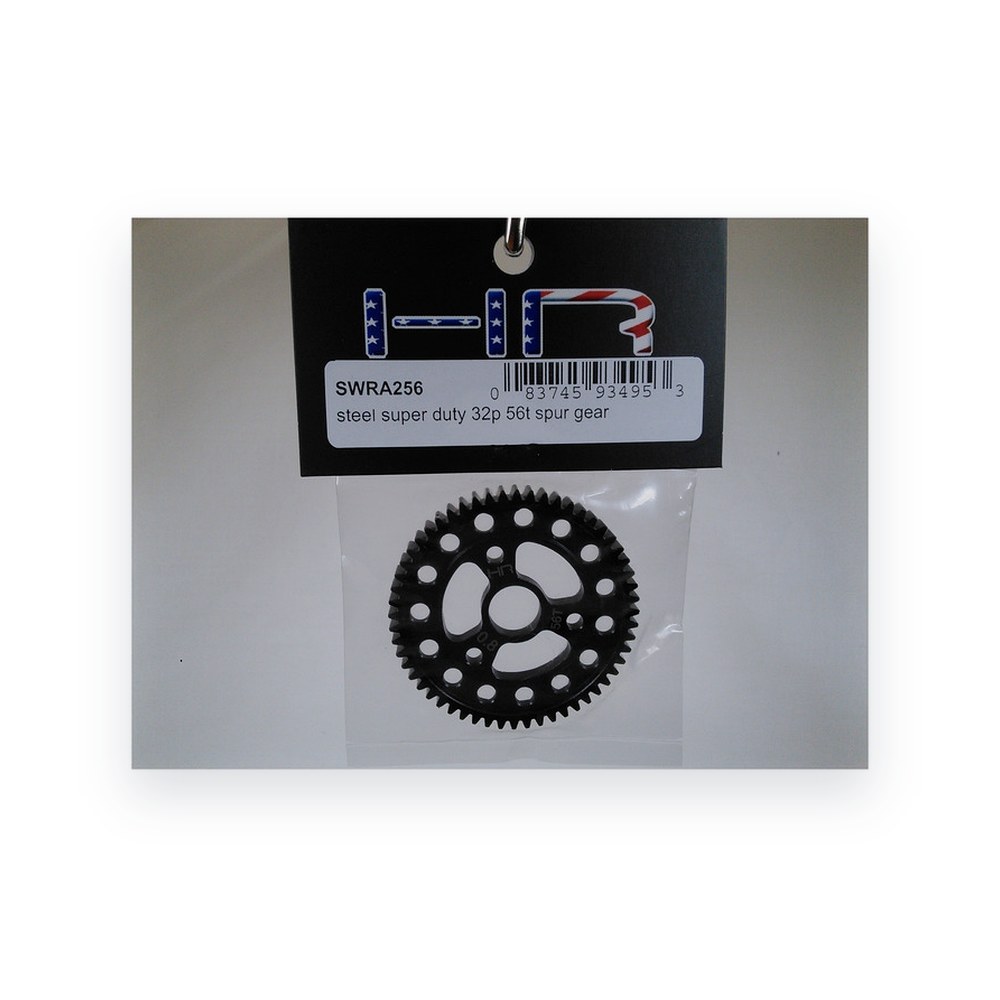

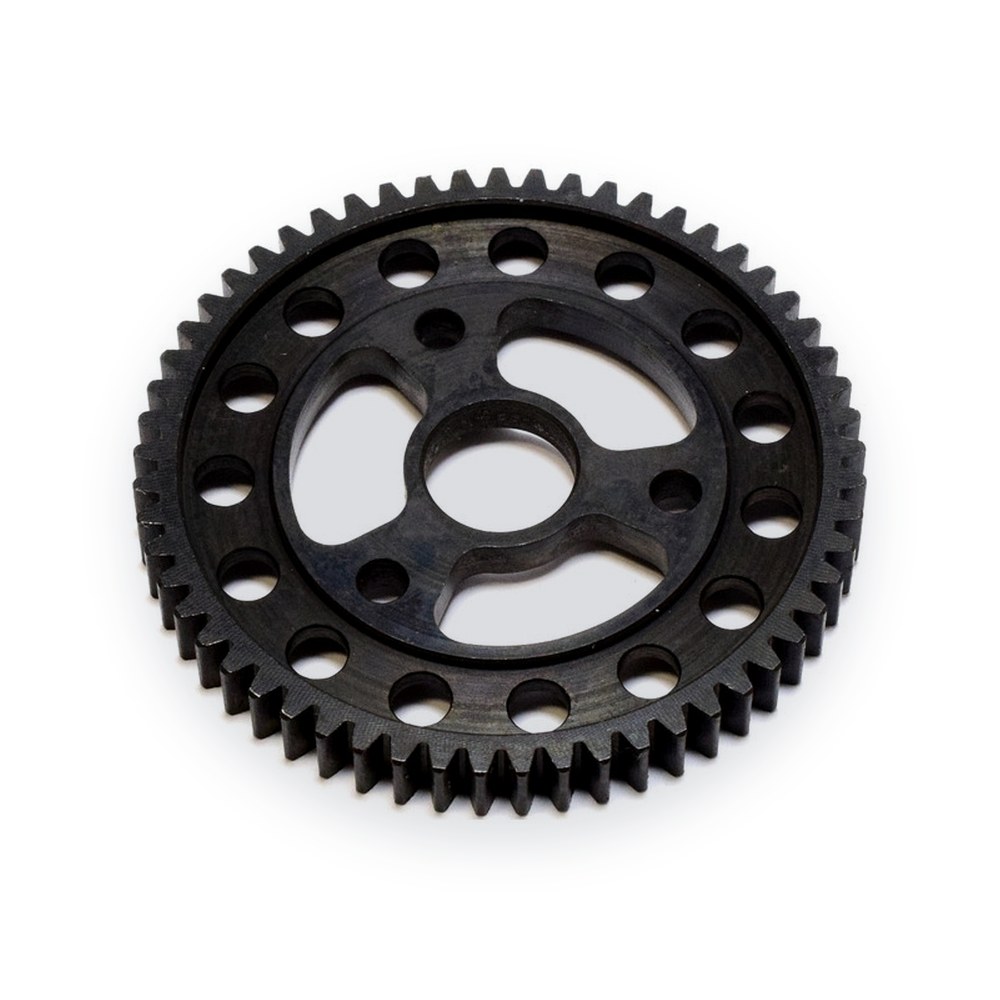

Hot Racing Steel Super Duty 32P Spur Gear, 56T

About this part

Hot Racing steel super duty spur gear with 32 pitch and 56 teeth, made for rock racing on 1/10 scale Axial trucks, including the Wraith, AX10 and SCX series.

Features

• Rugged 32 pitch (0.8 module) teeth hold up under high-power brushless systems
• CNC machined from lightweight hardened steel with a black oxide coating for wear and corrosion resistance
• Replaces the stock nylon spur gear
• Requires a matching 32 pitch (0.8 module) pinion. The stock pinion is 48 pitch.

You will receive

• One 56 tooth, 32 pitch spur gear

Specifications

• Teeth: 56
• Internal diameter: 0.39 inch (9.9mm)
• Pitch: 32 (0.8 module)
• Mounting holes: 3
• Tooth face width: 0.20 inch (5mm)

Comments

• Does not fit a vehicle with a hex slipper.
• Use only with a 32 pitch (0.8 module) pinion, since the stock pinion is 48 pitch.
• Fits: Axial AX-10 Scorpion Crawler, Axial SCX-10 Scale Truck, Axial Wraith 4WD Rock Racer RTR, Axial AX-10 Ridgecrest Crawler, Axial AX-10 Deadbolt
