Hot Racing Ep Ru St Rear Light Weight Metal Cv Splined Drive Shaft

About this part

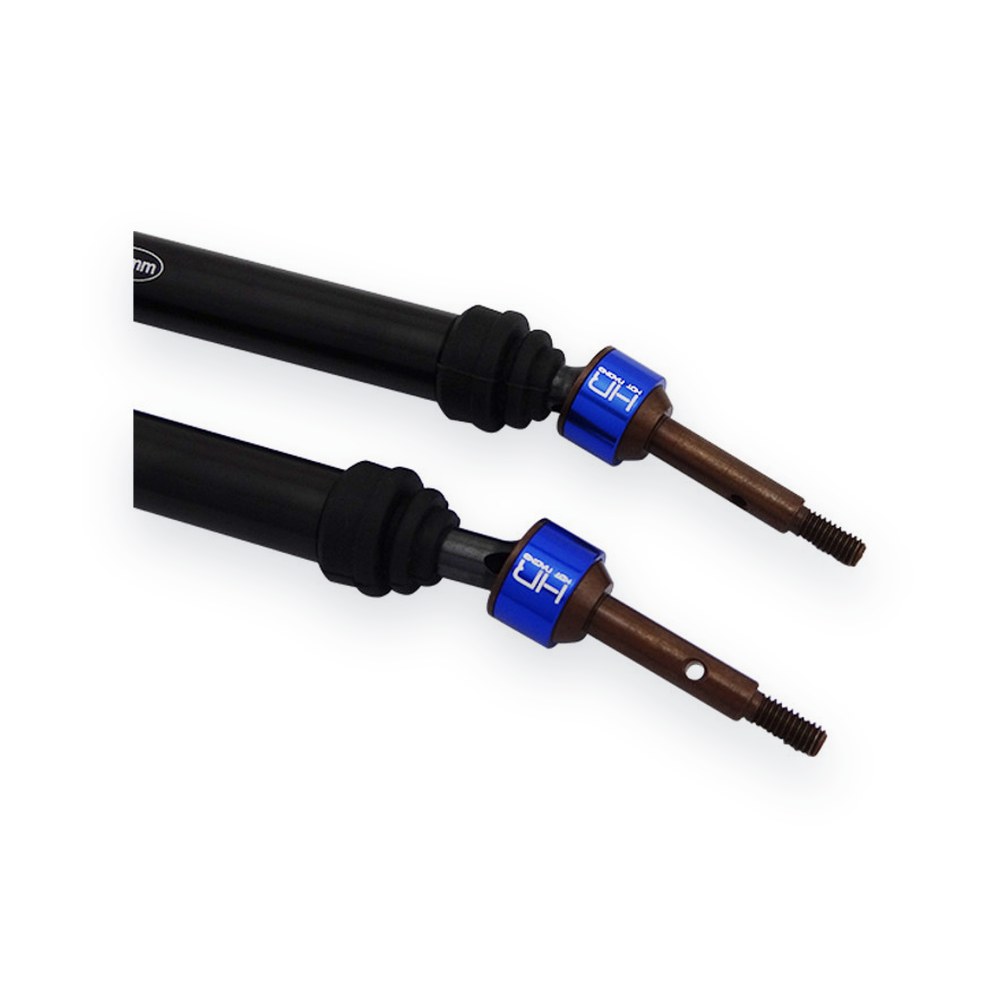

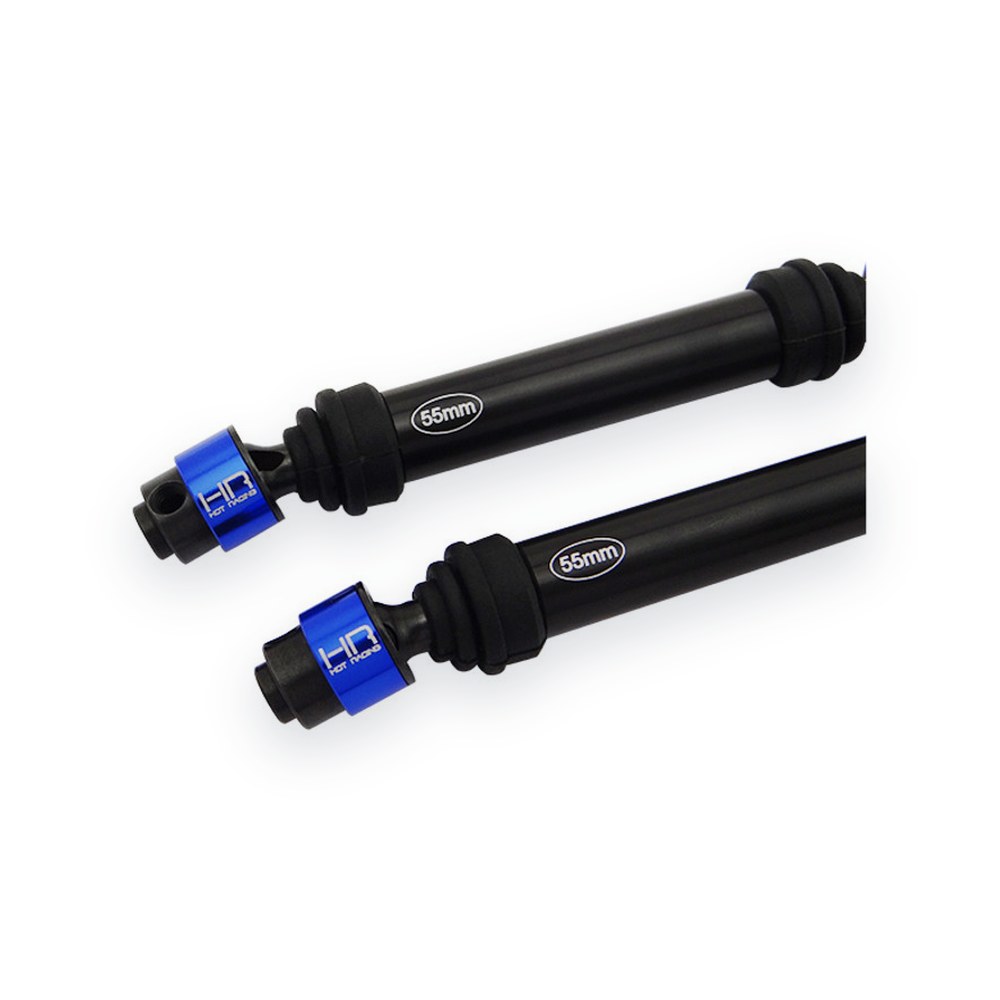

Optional heavy duty splined star drive axle kit from Hot Racing for the TRA 2WD electric Stampede and Rustler. The hardened steel slider and drive hub replace the factory plastic drive axles.

Features

• Hardened S2 spring steel stub axle
• Hardened #45 carbon steel slider and drive hub
• Hard anodized black aluminum slider
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Rubber dust boots protect the telescoping slider from debris
• No CV pin setscrew

You will receive

• Two (2) rear CV splined drive shaft assemblies
• Two (2) M4x2.5x11mm screw shafts

Requirements

• Removable blue thread lock on screws that thread into metal
• Light grease on the CV joints and slider splines to help them last

Specifications

• Approximate collapsed length: 109mm (4.3 inch)

Comments

• Replaces the factory plastic TRA1951 half shafts, TRA2753X stub axles and TRA4628 output yokes. Replacement parts include SLD425 (M4x2.5x11mm screw shafts), SLD540R, SLD11R, SLD10RSLD, 30D, SLD40D, SLD49C and SLD45T.

Fits

Replaces stock part
