Hot Racing Aluminum C-Hub Caster Blocks, TRA Ral/Rus/Sla/Sta/Tel 4x4, SLF1901

About this part

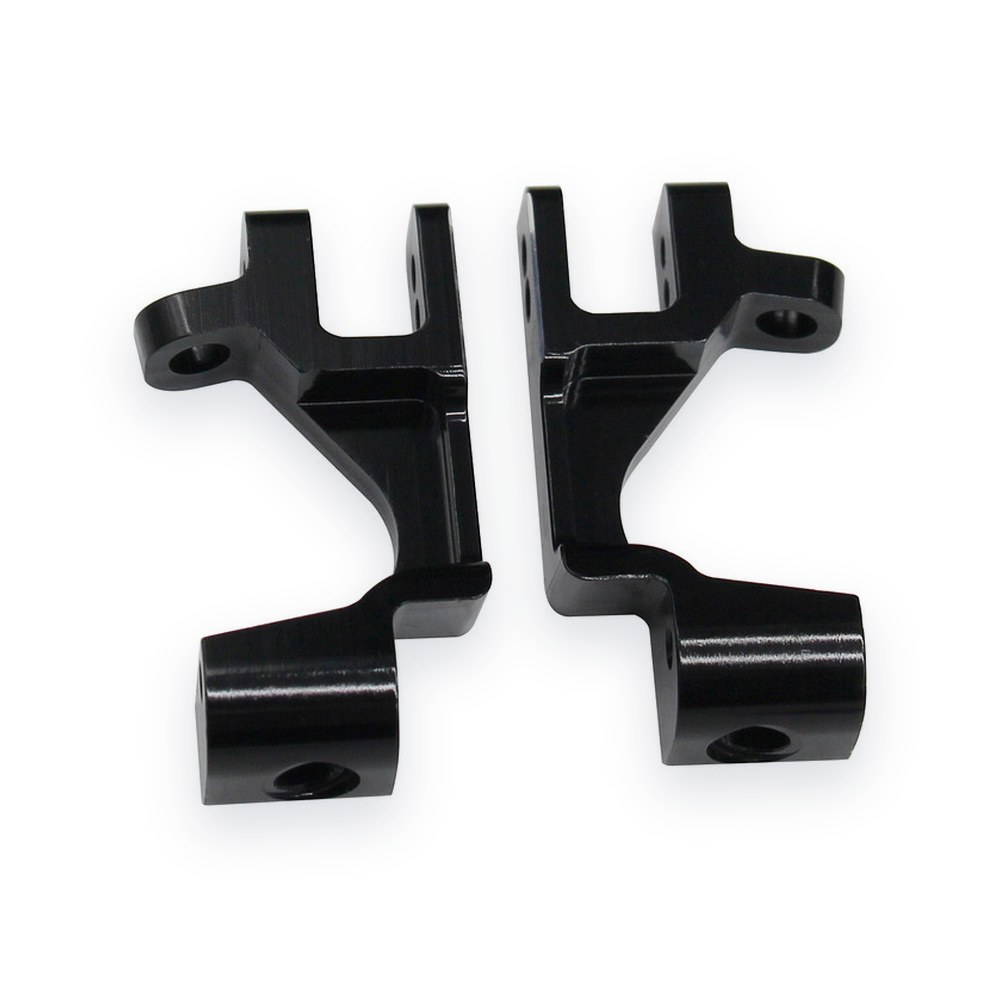

Hot Racing aluminum front caster blocks, also called c-hubs, for the 1/10 TRA Rally VXL, Rustler 4x4, Slash 4x4, Stampede 4x4 and Telluride 4x4. They replace the stock plastic steering blocks with CNC machined 6061-T6 aluminum in a black anodized finish. Brass kingpin bushings give smooth steering, and the lettering is laser etched.

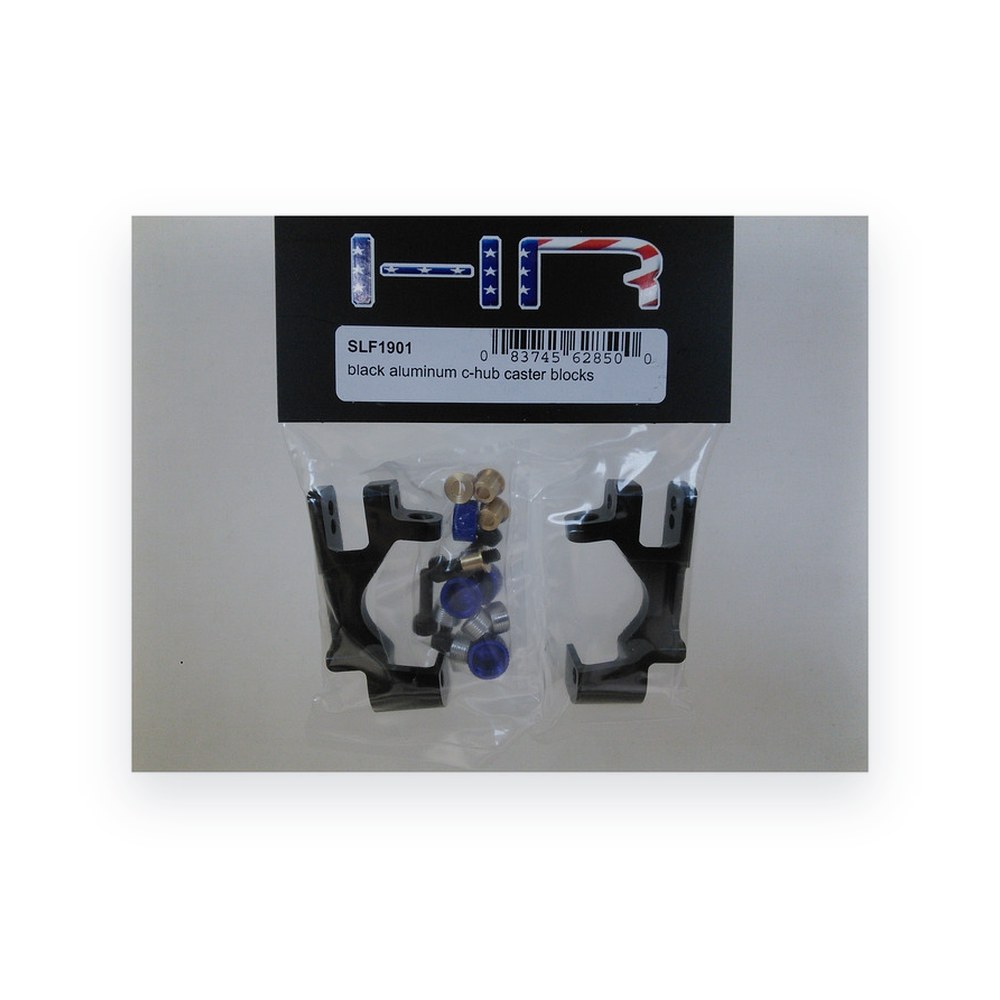

Includes

• Left and right aluminum caster blocks
• Four kingpin screws, brass bushings and blue anodized screw caps

Requirements

• Removable blue threadlocking compound is recommended on the threads

Specifications

• Brass bushing: total length 4.8mm, ID 3mm, OD 5mm, flange diameter 6.5mm, flange thickness 0.6mm

Notes

• Replaces TRA stock plastic 6832 caster blocks. Shims such as Hot Racing W3X 0.1mm can be placed between the caster blocks and steering blocks to reduce friction.
• FITS:
• Traxxas LCG Slash 4x4 or Rally, Traxxas Rustler 4x4, Traxxas Slash 4x4 (2024 and older), Traxxas Stampede 4x4 VXL, Traxxas Telluride 4X4 trail rig, Traxxas 1:10 Jato 4x4
