Hot Racing Aluminum Servo Arm, 25 Spline, 5 mm Offset

About this part

Hot Racing double clamping servo horn for 25 spline Futaba, TRA, Savox, Orion, and ProTek servos. The lock clamp gives a precise, secure fit. It is CNC machined from 6061 aluminum and anodized black, with two M3 holes. The arm is 5mm offset and about 28.5mm long.

Features

• Lock clamp for a precise, secure fit
• CNC machined 6061 aluminum, anodized black
• Two M3 holes

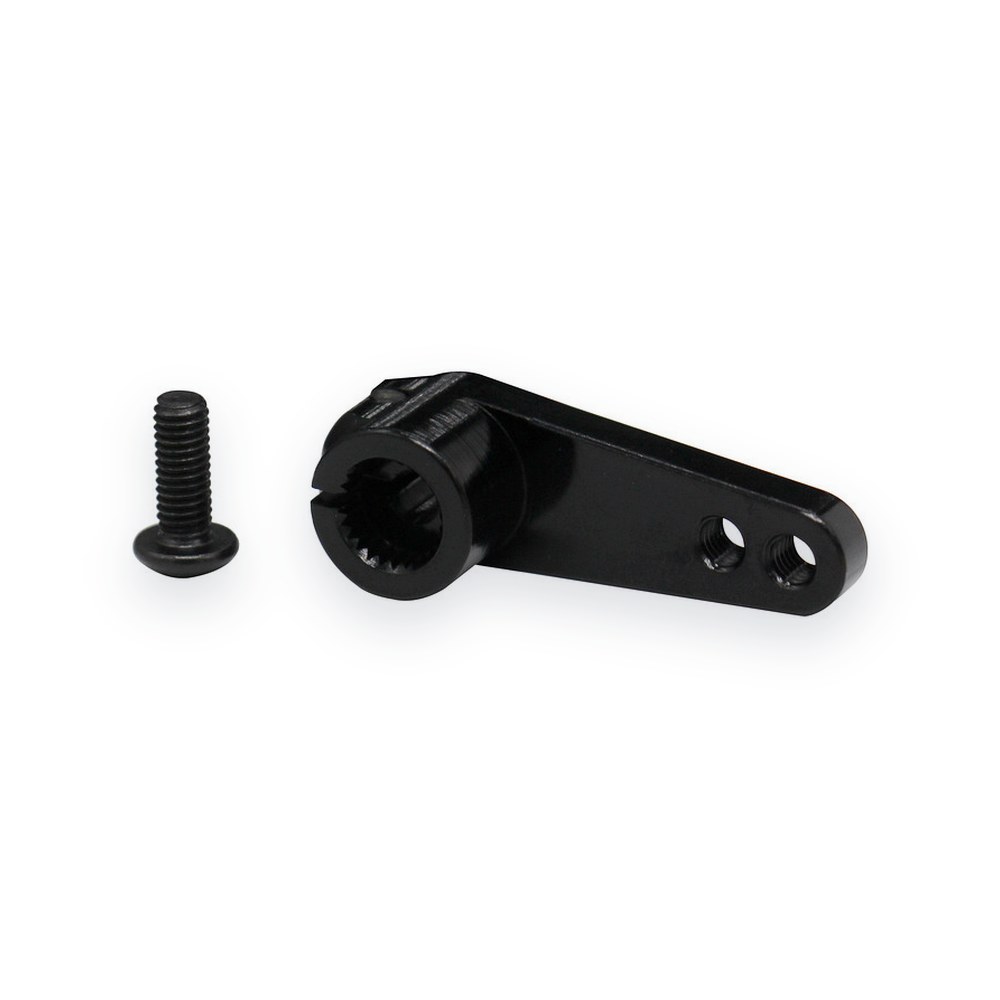

You will receive

• One 25 tooth servo horn
• One M2.5x4mm socket head cap screw for the clamp

Requirements

• 25 spline servo (Futaba, TRA, Savox, Orion, or ProTek)
• Servo screw
• Thread lock adhesive

Specifications

• Hole A distance: 16mm
• Hole B distance: 20mm
• Thickness: 10mm
• Offset: 5mm
• Material: 6061-T6 aluminum
• Spline: 25T
• Arm thickness: about 3.5mm, length about 28.5mm
• FITS:
• Tamiya Hummer
• Tamiya F-150/S-10
• Tamiya Hi-Lift F350, Tundra, HiLux
• HPI Electric Wheely King 1/12
• Axial AX-10 Scorpion Crawler
• Tamiya CR-01 Crawler FJ40

Fits
