Hot Racing Shock Tool and Spring Gauge

About this part

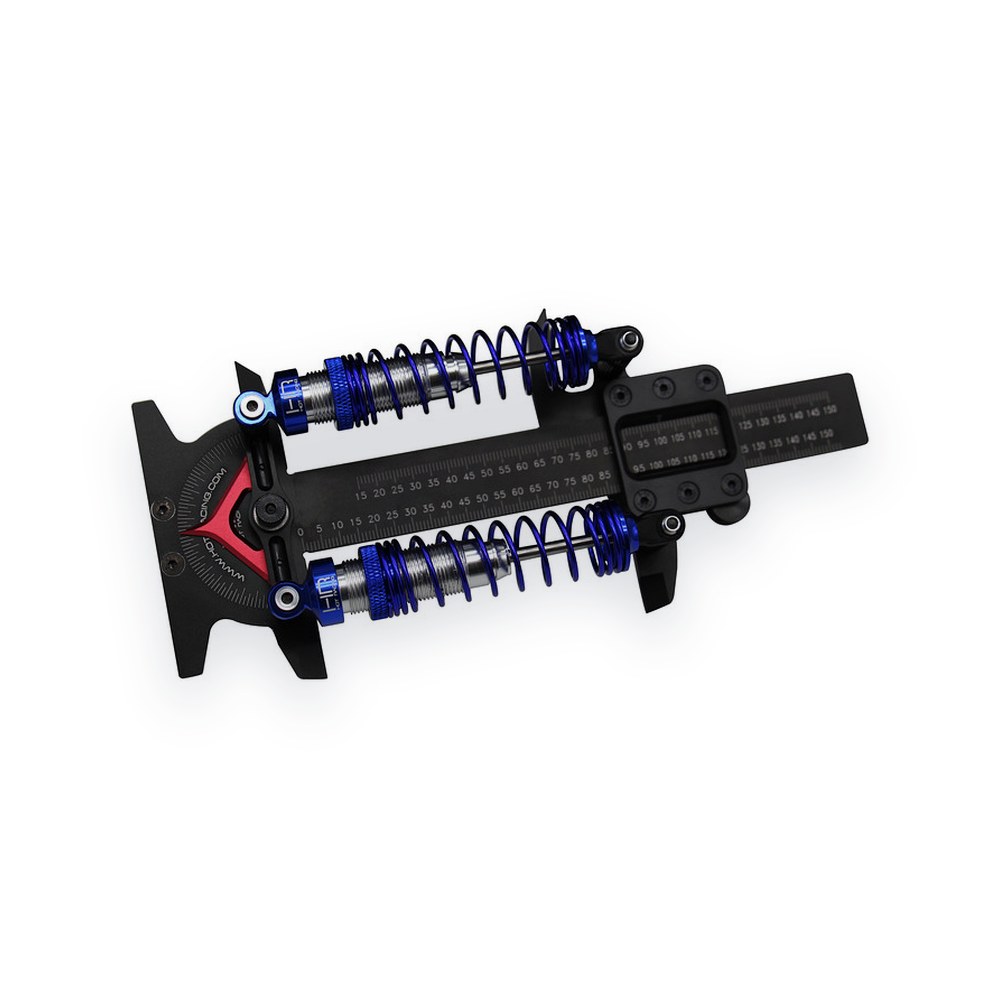

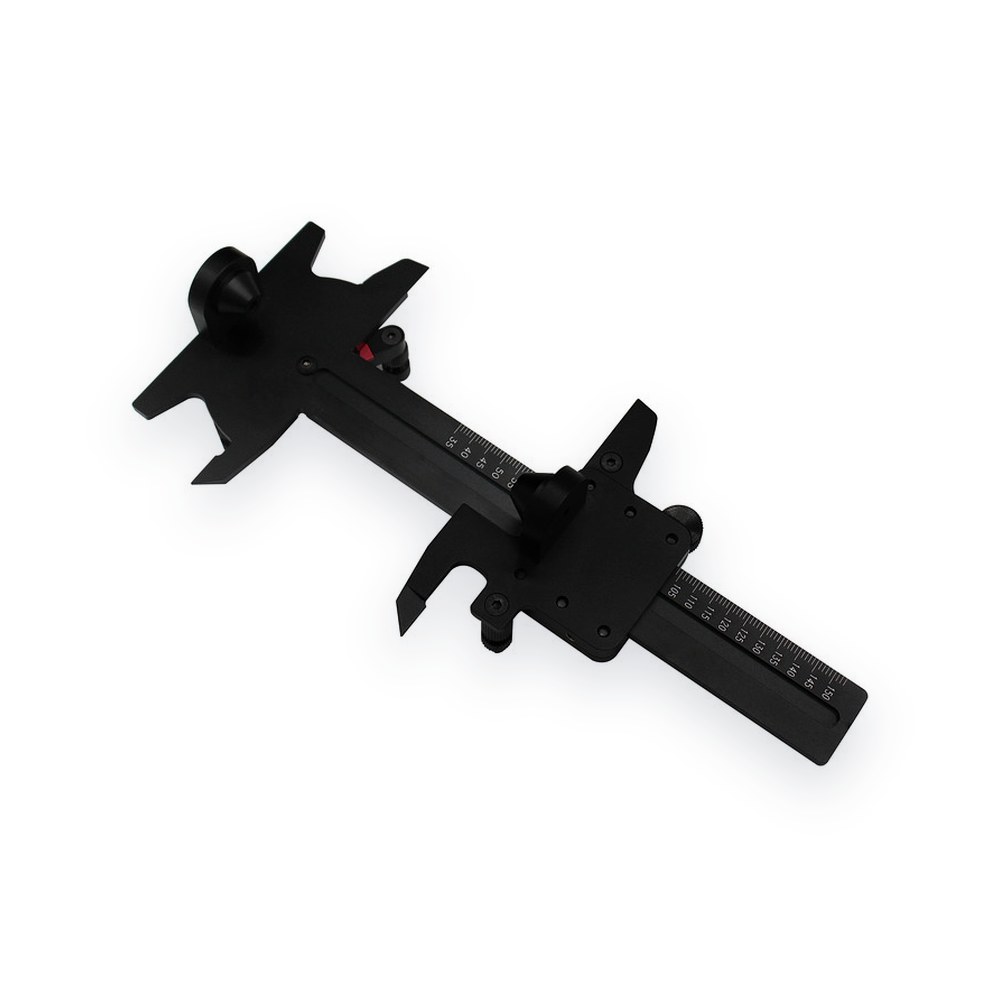

Hot Racing shock tool and spring gauge. The tool is CNC machined from 6061 aluminum with a laser etched measuring scale on the face. The pivoting gauge on the bottom is supported by ball bearings for precise readings. To test a shock, mount it on the tool, move the slider to the extended position, then slowly push it to the compressed position. The pointer shows any variance so it can be corrected.

Features

• Hard anodized aluminum body
• Brass pivot gauge for precision
• Laser etched measuring scale
• For 1/8 to 1/10 scale racers

Requirements

• For spring rate in kg/cm, use a kg scale appropriate to the spring being tested
• Remove the locking grub screw before use

Notes

• Can test springs with an inner ID from 8mm to 19mm
