Hot Racing Brass Heavy Metal HD Bearing Front Knuckle for SCX II

About this part

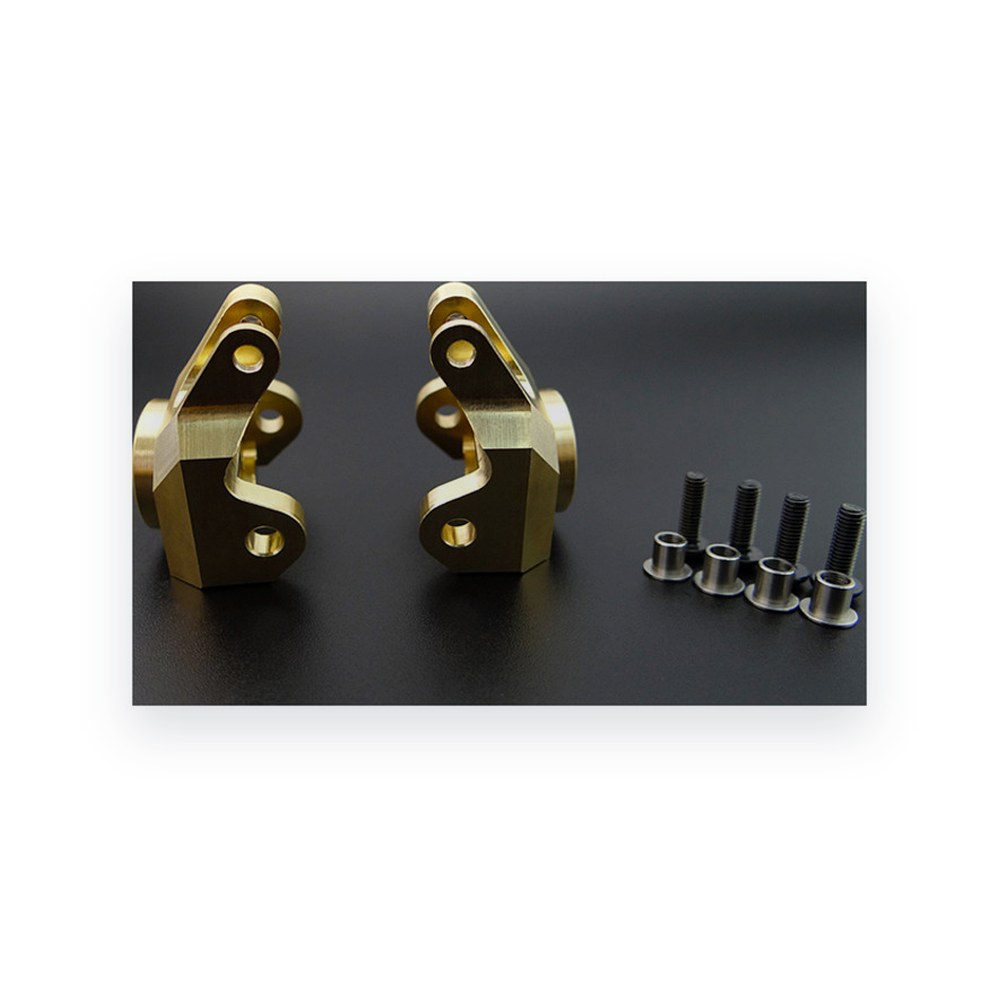

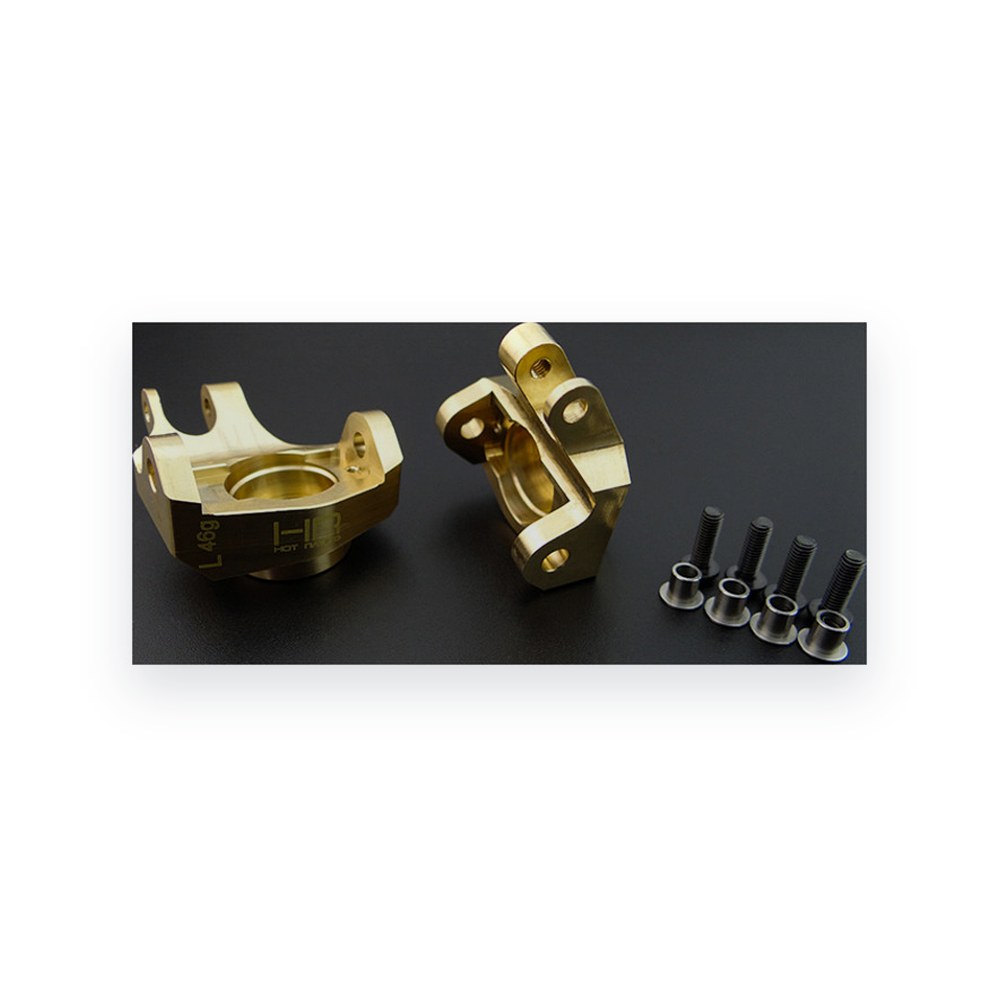

Hot Racing heavy duty solid brass steering knuckles (steering blocks) for the Axial SCX10 II and AR44 axles. Each knuckle adds about 46g (1.6 oz) low on the crawler, where it helps with stability and lowers the center of gravity. They are a direct replacement for the factory plastic knuckles.

Features

• CNC machined solid brass
• Heavy duty 5x13x4mm double sealed outer bearing
• Adds low weight for greater stability and a lower center of gravity
• Stainless steel kingpin bushings
• Cutouts on the knuckle give access to the outer bearing race for easy removal
• High strength steel hardware
• Direct replacement for factory plastic steering knuckles
• INCLUDED:
• Two (2) brass steering knuckles
• Four (4) stainless steel bushings, M3 ID x 5mm length x 4mm OD, with 6mm x 0.5mm flange
• Four (4) kingpin screws

Specifications

• Height: 33.1mm
• Weight: 46g (1.6 oz) each

Requirements

• Use a removable type threadlocker on screws that thread into metal

Notes

• Replaces factory plastic Axial AX31381 steering knuckles
• Bearing installation tips: first install the 5x13x4mm outer bearing, then use the axle as a guide to install the 10x15x4mm inner bearing

Fits

Replaces stock part
