Hot Racing Aluminum Steering Knuckles for Axial SCX2

About this part

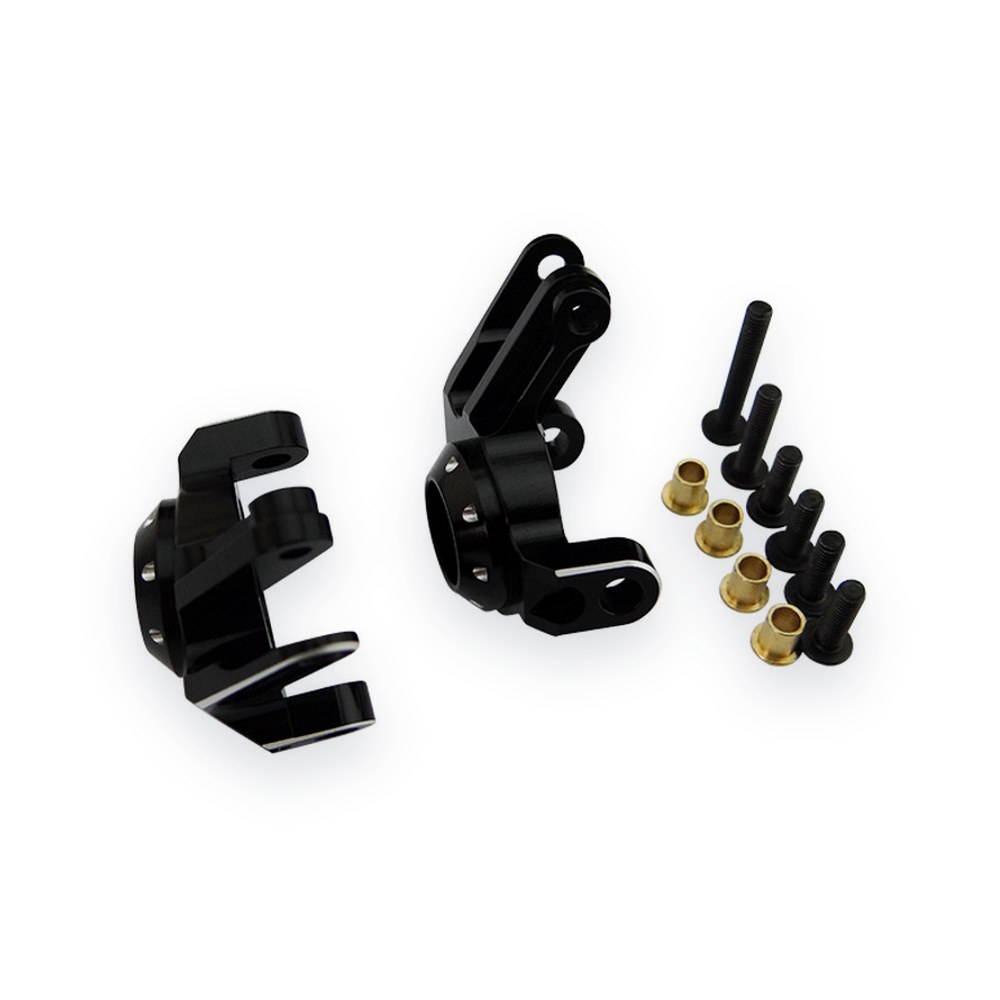

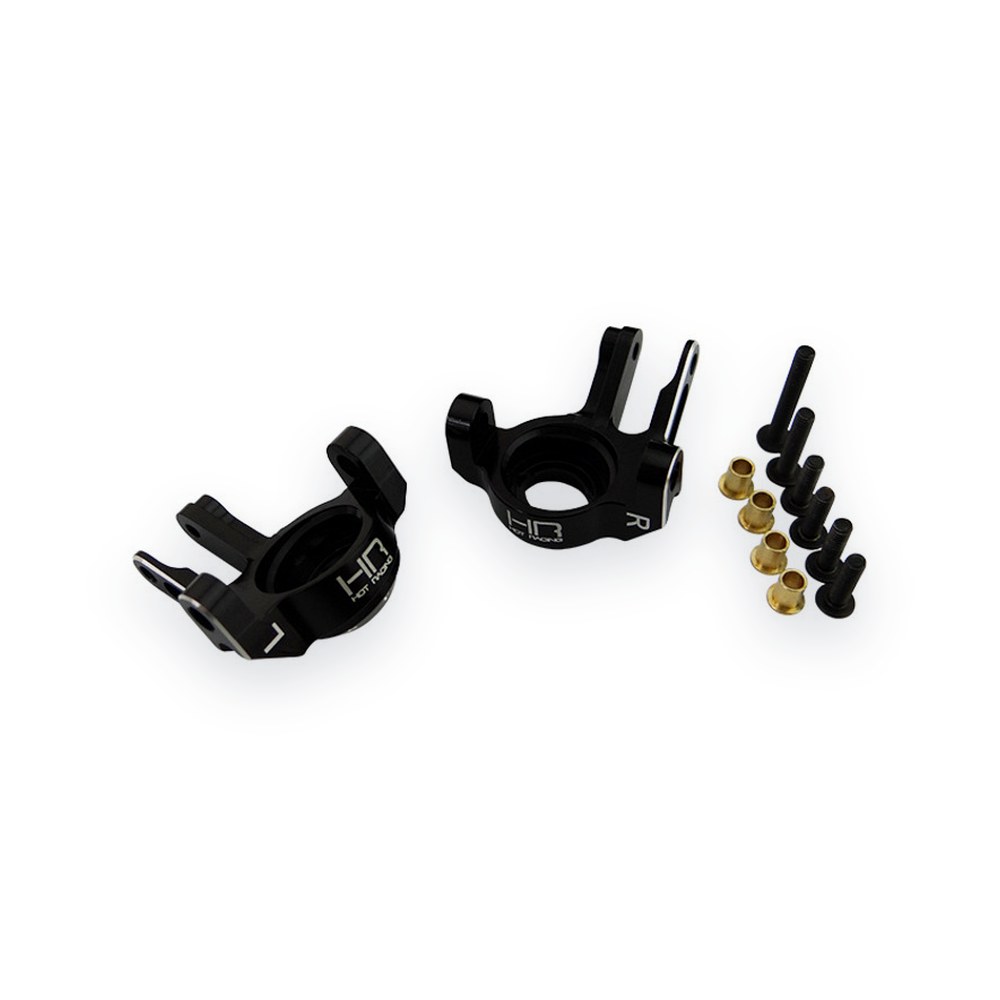

Hot Racing aluminum steering knuckles (steering blocks, front hubs) for the Axial SCX10 II, Wraith 1.9, and other vehicles with the AR44 axle. They are CNC machined from 6061-T6 aluminum and replace the factory plastic knuckles. Each one is anodized black, with chamfered edges, brass kingpin bushings, and high strength steel hardware.

Features

• CNC machined 6061-T6 aluminum
• Replaces factory plastic steering knuckles
• Anodized black for durability, corrosion resistance, and appearance
• Secondary machined chamfered edges
• Brass kingpin bushings
• High strength steel hardware
• INCLUDED:
• Two (2) aluminum steering knuckles
• Four (4) brass bushings
• Four (4) kingpin screws

Specifications

• Weight: 24g each with bushings and kingpin screws
• Brass bushing: 5mm total length, 4mm OD, 3mm ID, 5.5mm flange OD, 0.5mm flange thickness

Requirements

• Use medium threadlocker on screws

Notes

• Replaces factory plastic Axial AX31381 steering knuckles

Fits

Replaces stock part
