Hot Racing Arrma 1/10 4x4 Steel Spur Gear, 91T, 48P

About this part

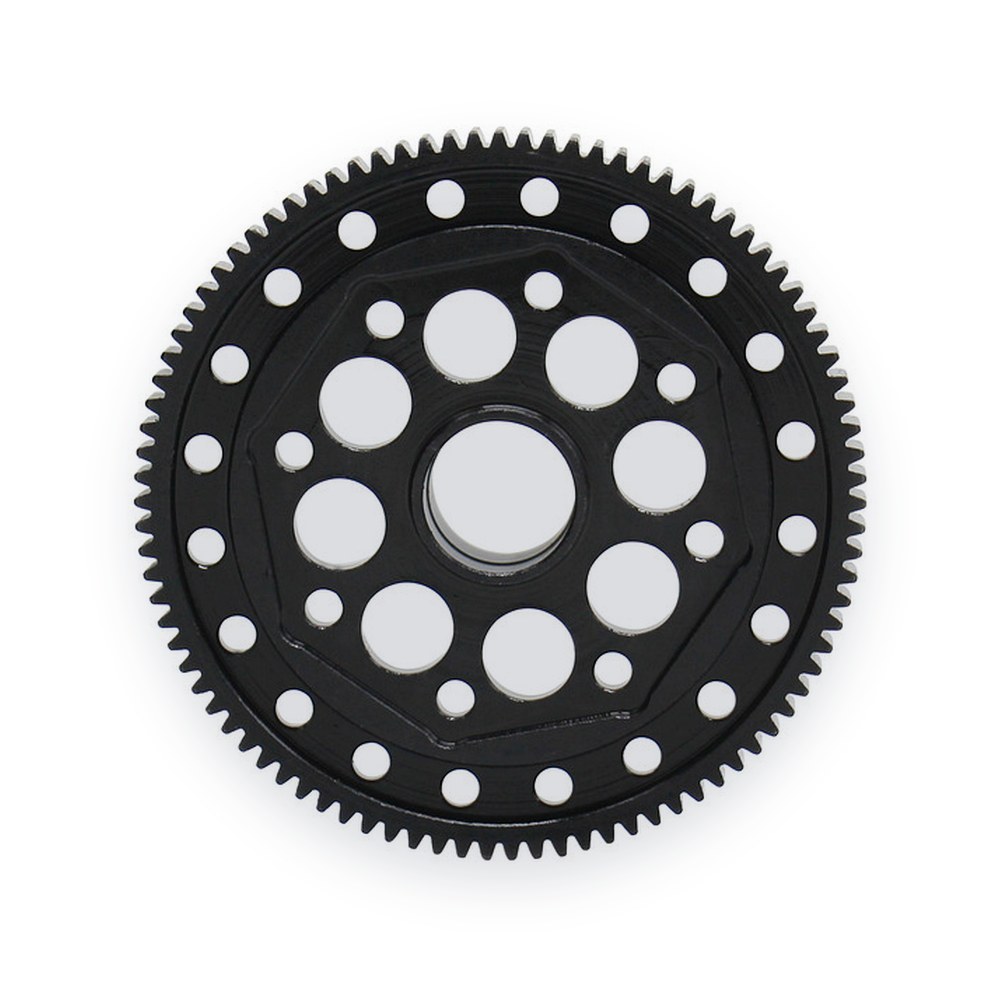

Hot Racing 91-tooth steel spur gear at 48 pitch for 1/10 Arrma 4x4 brushed vehicles. It is CNC machined and lightened from hardened steel with a black oxide finish. It replaces the factory plastic gear and works with factory slipper pads or the Hot Racing ATF15H aluminum slipper pad. It is rated for high-power brushless systems.

Specifications

• Number of teeth: 91
• Gear pitch: 48 pitch
• Tooth face width: 0.24 in (6 mm)
• INCLUDED:
• One 91-tooth 48 pitch spur gear

Requirements

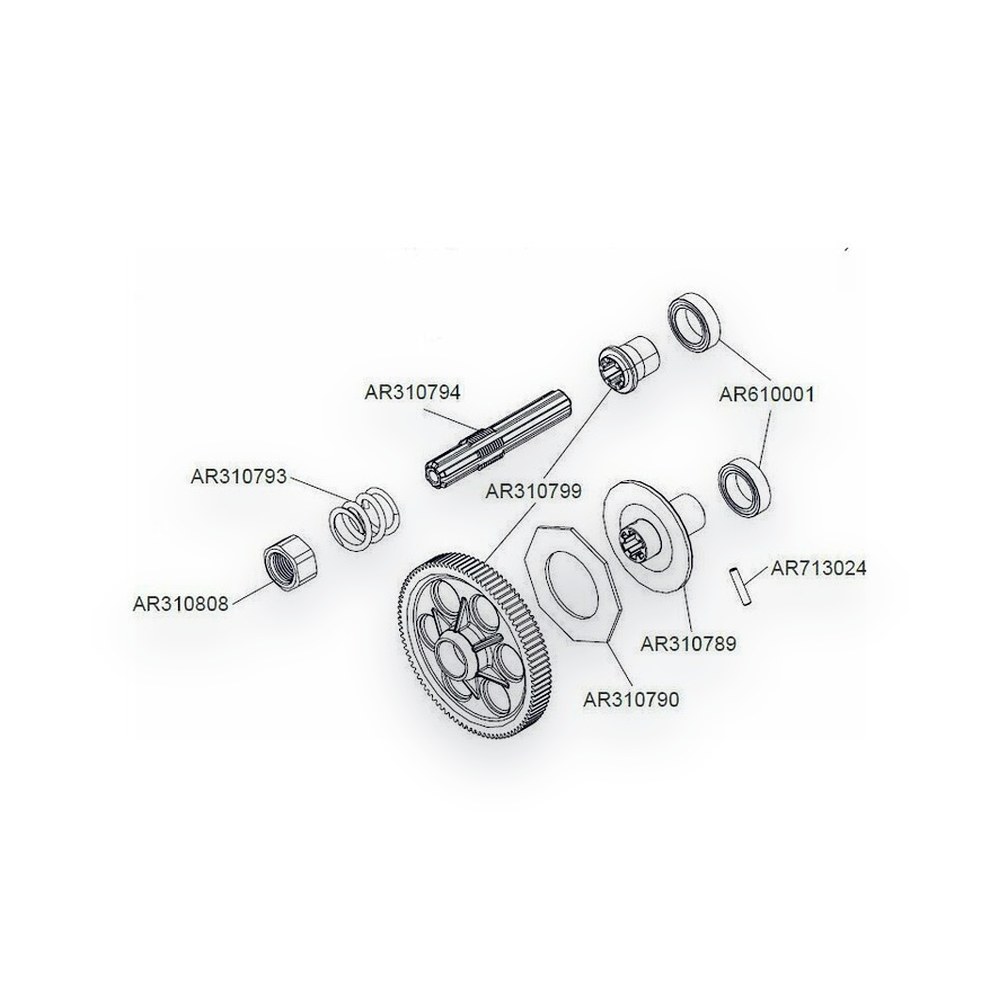

• Stock plastic center gear bushing, Arrma AR310799
• Fits only vehicles with the 8-sided slipper pad. Vehicles without it will need Arrma AR310790 slipper pad.

Notes

• Upgrade for the factory plastic AR310799 91-tooth, 48DP gear. Vehicle part numbers are listed on the manufacturer's website, in the vehicle literature, and on the box near the barcode. Vehicles marked optional may fit but may need modification.
• FITS:
• Arrma 1:10 4x4 Granite Mega, Senton Mega SC, Granite Boost 4X2, Senton Boost 4X2, Vorteks Boost 4X2, Arrma 1:8 4x4 Typhon 550
