Hot Racing Steel 32p Pinion Gear, 27T, 5mm Bore

About this part

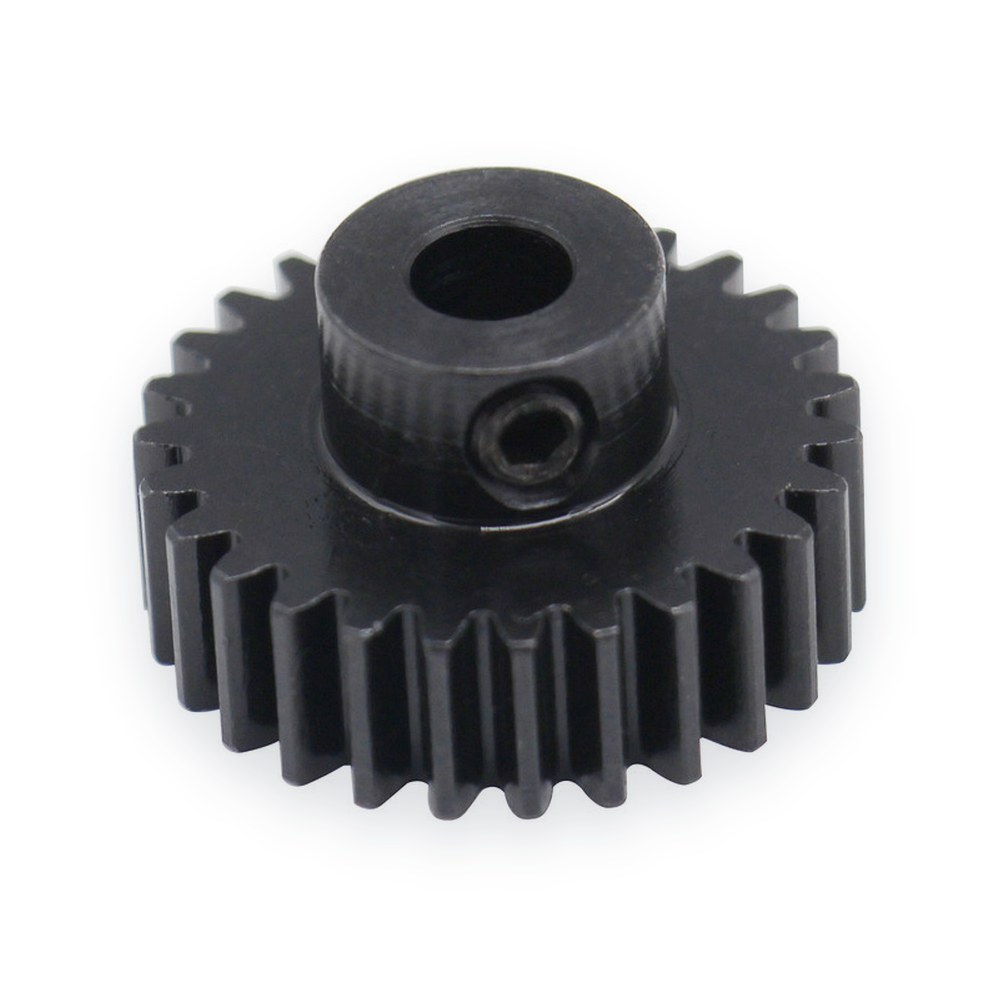

Hardened steel pinion gear with 27 teeth at 32 pitch, bored for a motor with a 5mm shaft. It is CNC machined and nitrided, which adds surface hardness and corrosion resistance. The hardening also improves wear resistance and fatigue life. IN THE BOX: One pinion gear and one M5x5mm set screw BEFORE YOU START: You will need a 2mm hex wrench for the set screw and a removable thread lock such as blue. The motor must have a 5mm shaft and the gear must mesh with a 32 pitch spur gear.

Specifications

• Tooth count: 27
• Tooth pitch: 32
• Tooth face width: 7mm
• Length: 14.5mm
• Shaft: 5mm

Note

• 0.8 module is the same as 32 standard pitch.
• FITS:
• Arrma 1:10 4x4 Bigrock 3S BLX
• Arrma 1:10 4x4 Granite Mega
• Arrma 1:10 4x4 Granite 3S BLX

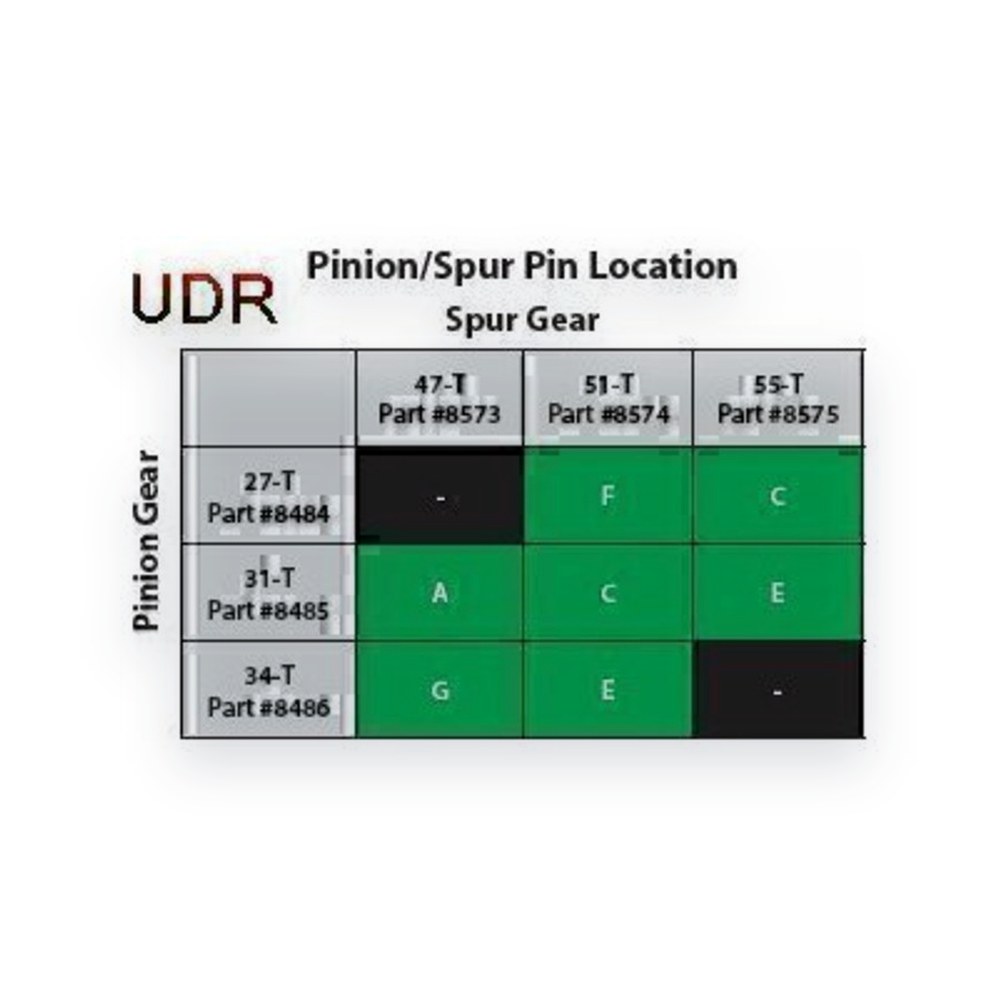

• Traxxas Unlimited Desert Racer UDR

Fits
