Hot Racing Steel 32p Pinion Gear, 26T, 5mm Bore

About this part

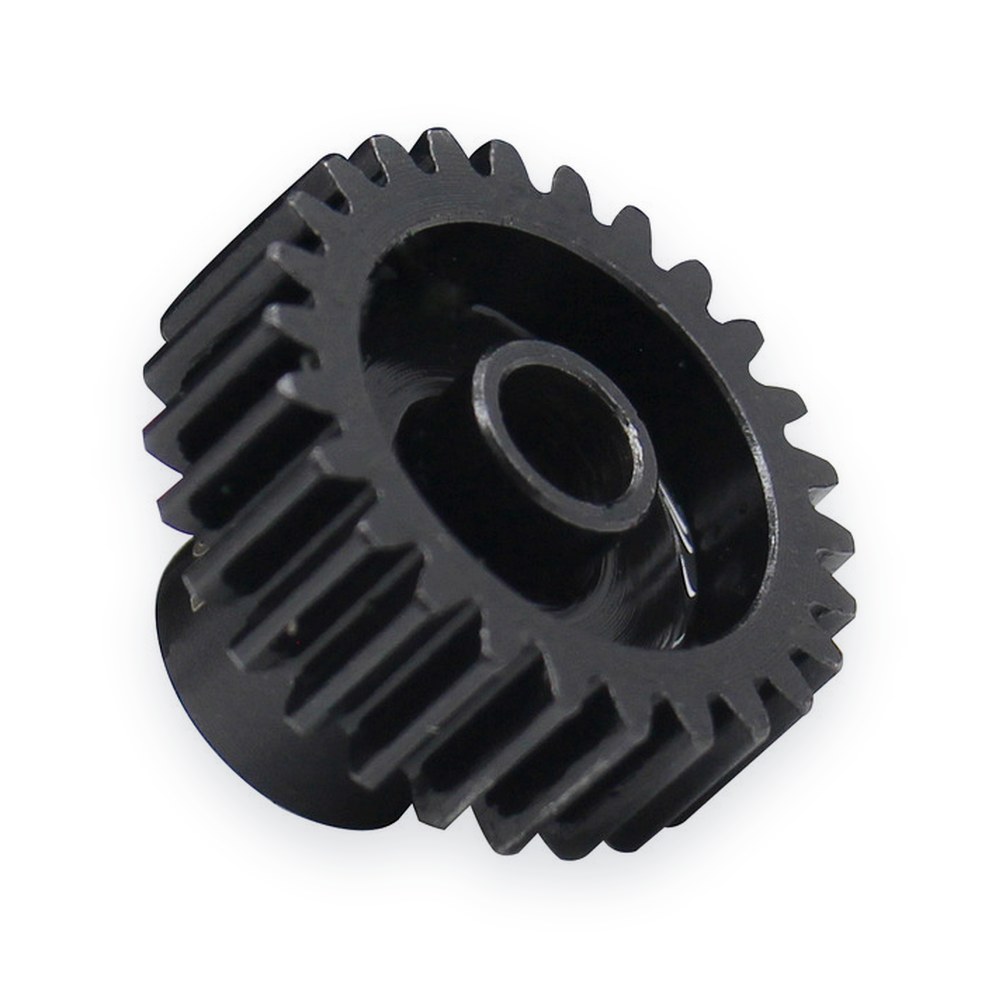

Hardened steel pinion gear with 26 teeth at 32 pitch, bored for a motor with a 5mm shaft. It is CNC machined and nitrided, which adds surface hardness and corrosion resistance. The hardening also improves wear resistance and fatigue life. IN THE BOX: One pinion gear and one M4x4mm set screw BEFORE YOU START: You will need a 2mm hex wrench for the set screw and a removable thread lock such as blue. The motor must have a 5mm shaft and the gear must mesh with a 32 pitch spur gear.

Specifications

• Tooth count: 26
• Tooth pitch: 32
• Tooth face width: 7mm
• Length: 14.5mm
• Shaft: 5mm
• Diameter: 22.2mm

Note

• 0.8 module is the same as 32 standard pitch.
• FITS:
• Arrma 1:10 4x4 Bigrock 3S BLX
• Arrma 1:10 4x4 Bigrock V3 3S BLX
• Arrma 1:10 4x4 Granite 3S BLX
• Arrma 1:10 4X4 Kraton 4S BLX
• Arrma 1:10 4x4 OutCast 4S BLX
• Arrma 1:10 4x4 Senton 3S BLX
