Hot Racing Arrma 1/10 4x4 BLX Steel Spur Gear, 57T, Mod 0.8

About this part

Hot Racing 57-tooth steel spur gear at 0.8 module (32 pitch) for 1/10 Arrma 4x4 3S BLX brushless vehicles. It is CNC machined and lightened from hardened steel, with a black oxide finish. It replaces the factory plastic gear. The updated design works with factory slipper pads AR310790 and AR310908, and with Hot Racing ATF15H or ATF15HN aluminum slipper pads.

Specifications

• Number of teeth: 57
• Gear pitch: 32 pitch (0.8 module)
• Tooth face width: 0.24 in (6 mm)
• INCLUDED:
• One 57-tooth 32 pitch (0.8 module) spur gear

Notes

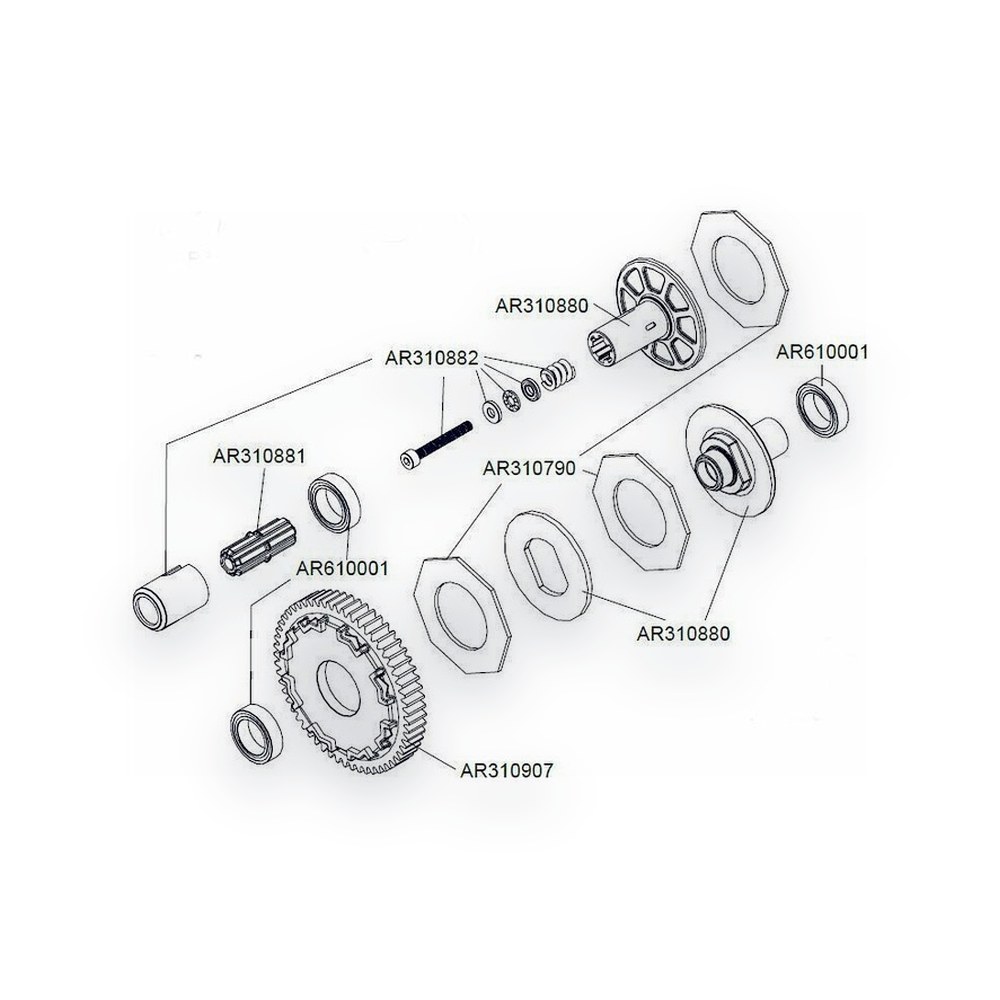

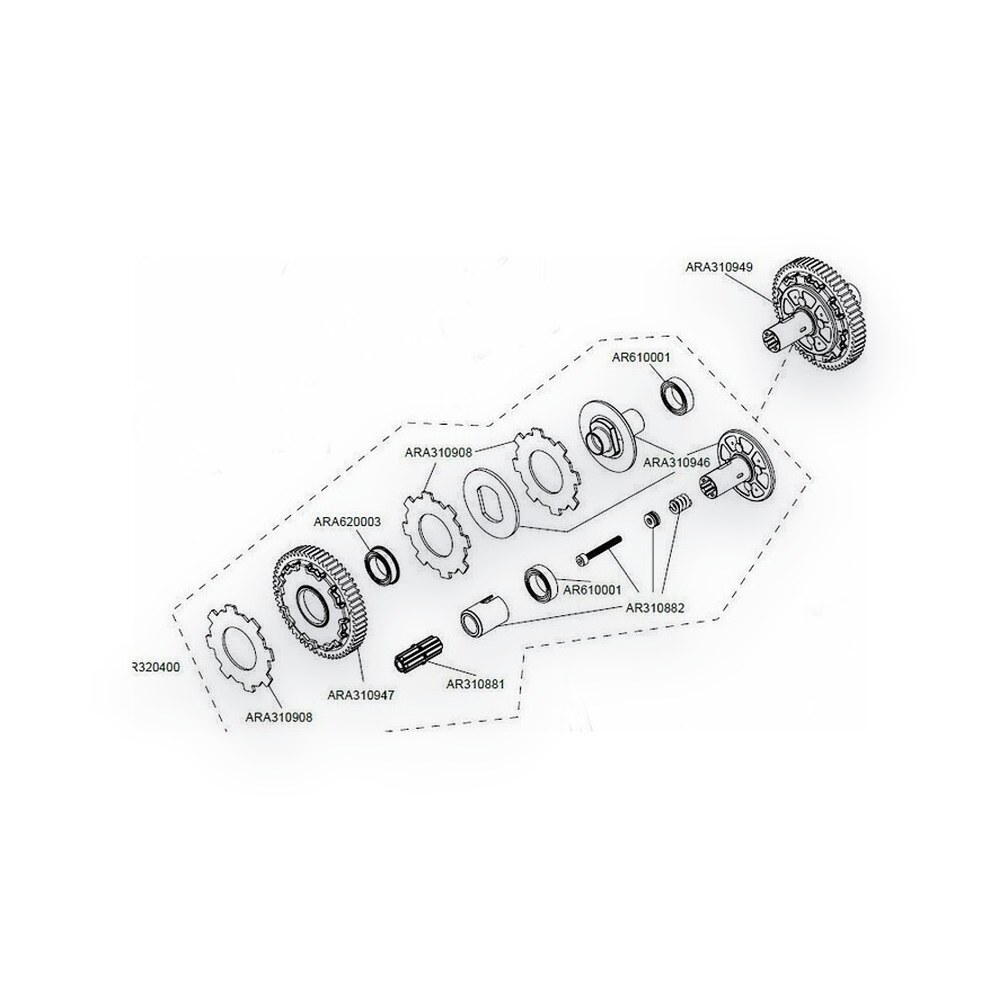

• Upgrade for the factory plastic AR310907, AR310879, and 310947 57-tooth, 0.8 module (32P) gear. Known to fit the Arrma vehicles listed below. Part numbers are found on the manufacturer's website, in the vehicle literature, or on the box near the barcode. Vehicles marked optional may fit but may need modification.
• FITS:
• Arrma 1:10 4x4 Bigrock 3S BLX, Bigrock 3S V3, Bigrock V3 3S BLX, Granite 3S BLX, Kraton 4S BLX, OutCast 4S BLX
