Hot Racing Mini-XRT Metal Cv Splined Drive Shaft

About this part

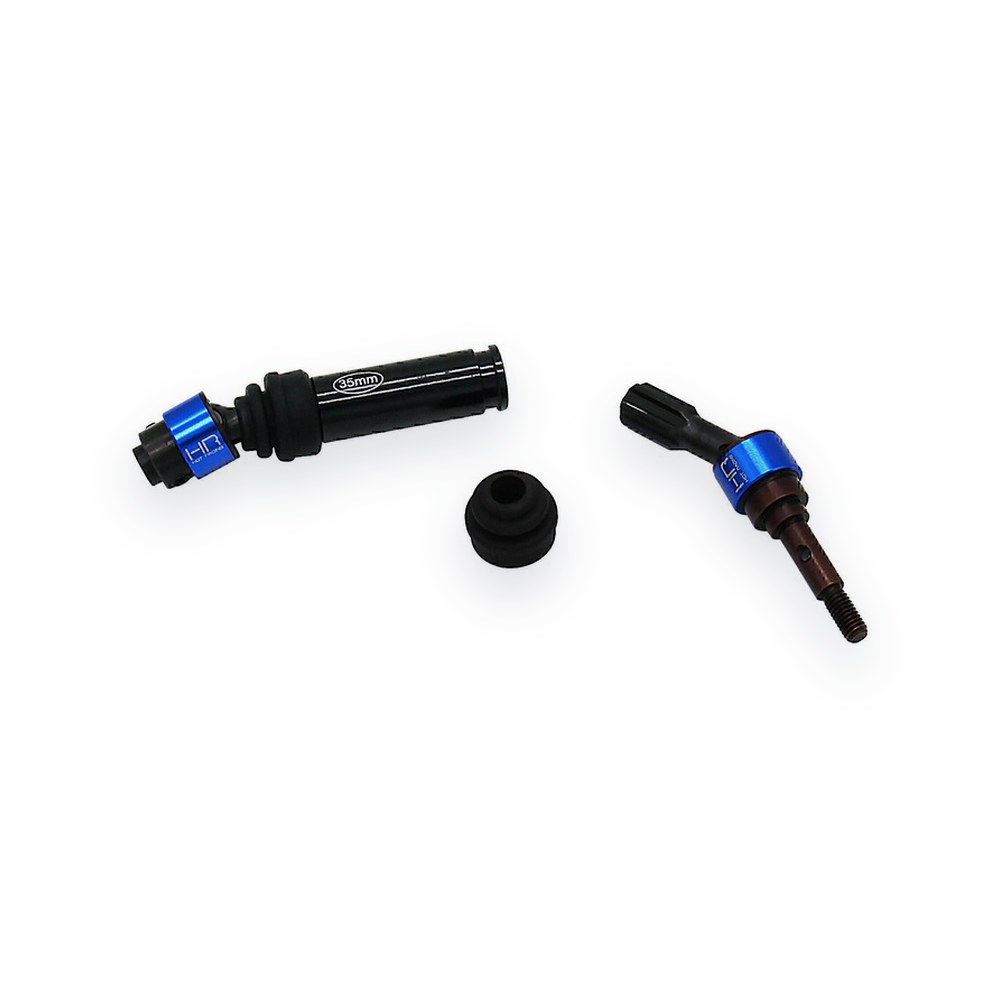

Heavy-duty splined star drive CVD axle kit for the front or rear of the Mini XRT or Mini Maxx. The CV joints and drive hubs are CNC machined from hardened #45 carbon steel, and the slider tube is CNC machined aluminum.

Features

• CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline and stub axle
• CNC machined aluminum slider tube
• Blue anodized aluminum pin capture rings
• Rubber dust cover boots
• Replaces the factory front or rear driveshaft axles

Includes

• Two splined axle assemblies

Requirements

• Reuse the stock drive pin and set screw pin. Grease the CV joint and shaft spline. Use medium thread lock on screws that thread into metal.

Specifications

• Collapsed length, wheel pin to outdrive pin: 89mm
• Extended length, zero shaft engagement: 98mm
• Pinned set screw: M4x2.5x11mm

Note

• Replaces TRA10798 on the Mini XRT, front or rear. The Mini Maxx also needs the full set of MMX54W01, MMX55W01, MMX56W01, MMX57W01 and MMX288W06.

Fits

Replaces stock part
