Hot Racing Motor Heat Sink Fan, Mini Maxx XRT

About this part

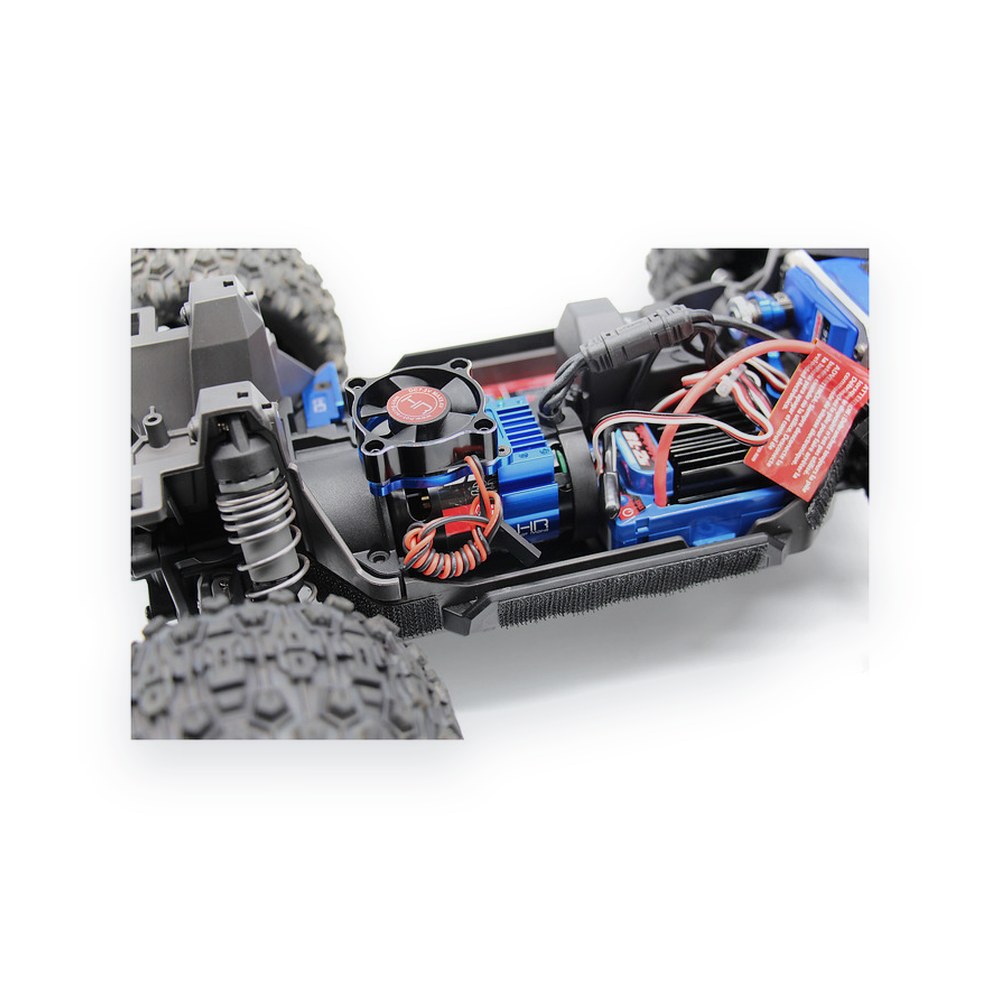

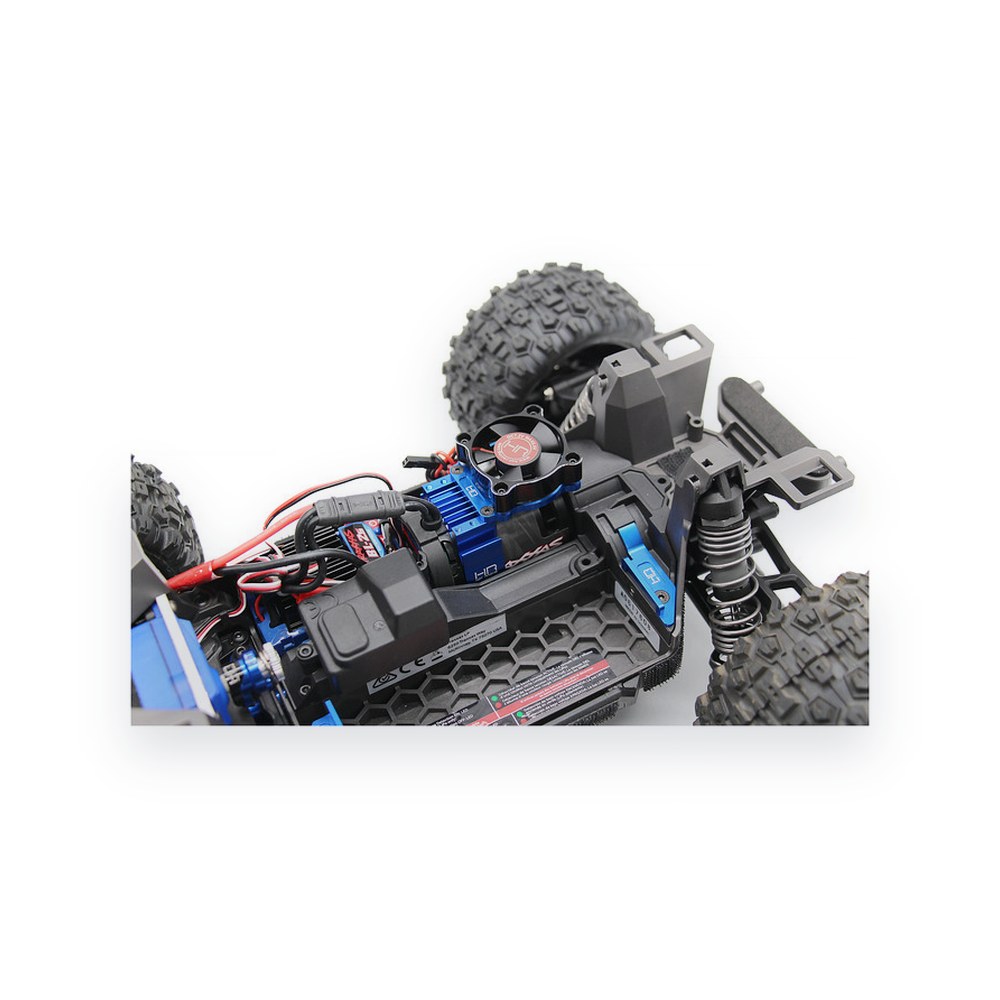

A motor heat sink with a fan for the Traxxas Mini Maxx, Mini XRT, or any other vehicle running a 540 or 550 motor. The fan mounts directly on top of the heat sink and moves air across the motor to improve efficiency and performance.

Features

• Black anodized CNC aluminum case
• Double bearing fan
• Two-wire servo style connector
• INCLUDED:
• One heat sink with cooling fan

Requirements

• Installation. Some units need assembly, which takes a 1.5mm and a 2mm hex wrench.

Specifications

• Overall height: 39mm (1.54 in)
• Heat sink length: 30mm (1.18 in)
• Fan size: 35 x 35 x 10mm
• Fan mounting pattern: 24mm square
• Input voltage: 7.2 to 8.4V DC maximum
• Fan speed: 16,000 RPM at 7.2V, 18,000 RPM at 8.4V

Fits
