Hot Racing Sledge 40mm Twister Motor Cooling Fan with Plug, SLG404TF

About this part

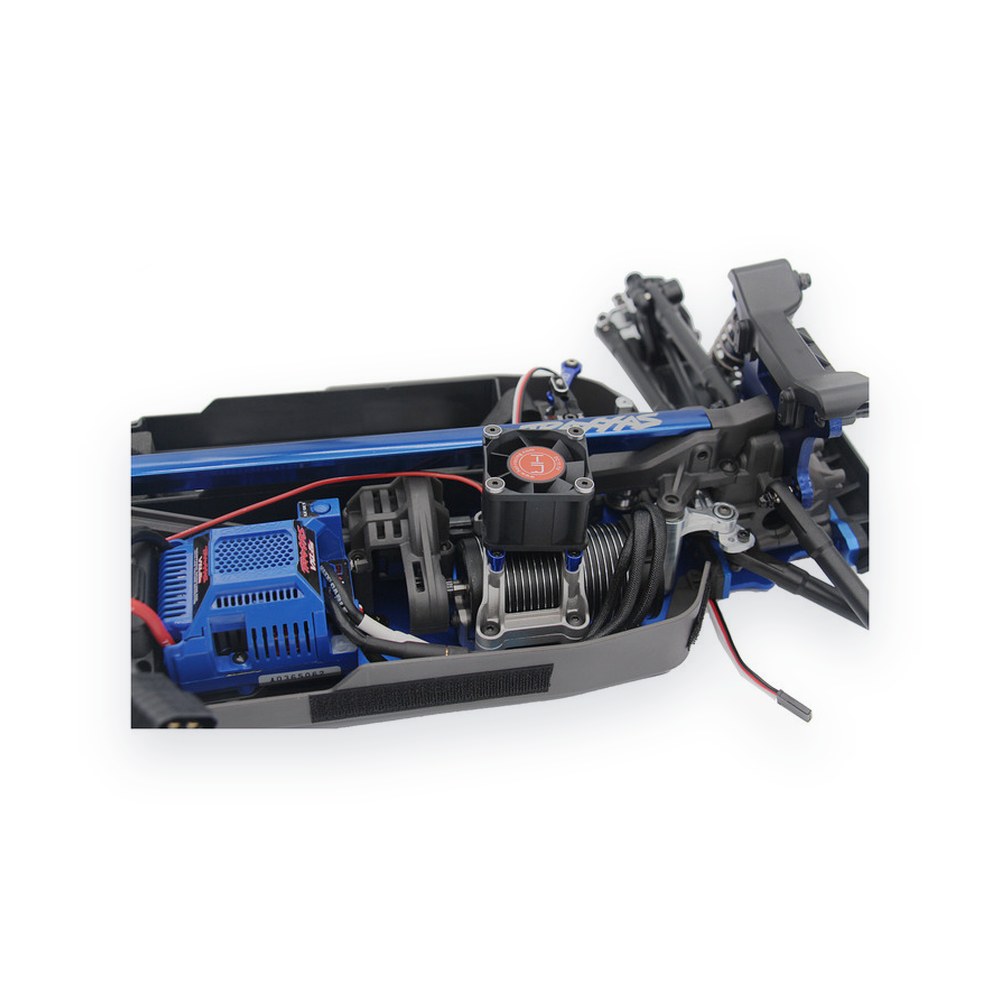

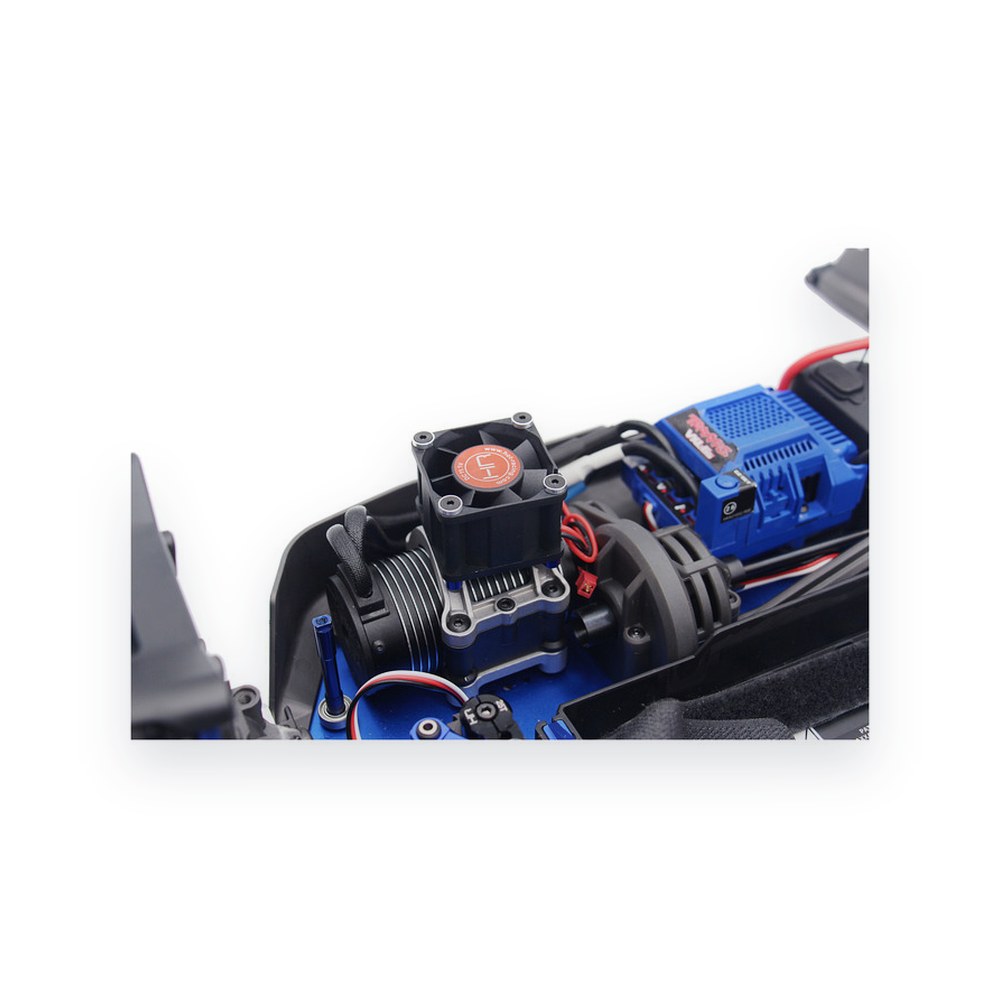

Twister blower cooling fan from Hot Racing for the TRA Sledge. It is a 40x40x28mm, 7-blade fan on ball bearings that pushes forced air across the motor heat sink, and it comes with a TRA plug.

Features

• Rated 12,000 RPM, forced airflow across the motor heat sink
• Large 40x40x28mm 7-blade fan
• Custom aluminum adapter for simple installation
• Black anodized aluminum heat sink for efficient heat transfer
• Adapter with TRA plug
• 12 AWG and 24 AWG silicone wire
• INCLUDED:
• One (1) fan with plug

Requirements

• Installation
• Loosen the fan screws during installation, then tighten them after. This helps prevent the fan from tweaking and binding.
• Medium thread lock (blue) on fan mount screws
• For off-road use, protect the fan blades
• This system uses a TRA connector. If your system uses a different connector, switch connectors or use an adapter.

Specifications

• Size: 40x40x28.9mm
• Input voltage: 11.1V (12V max)
• Lead length: about 170mm (may vary)
• Mounting pattern: M3 x 32mm square

Notes

• Do not use this system with a single 6-cell pack.
• The Hot Racing replacement fan is RAON404FP.
• FITS:
• Traxxas 1:8 Sledge
