Hot Racing Two-Piece Clip-On Motor Heat Sink with Fan, Orange

About this part

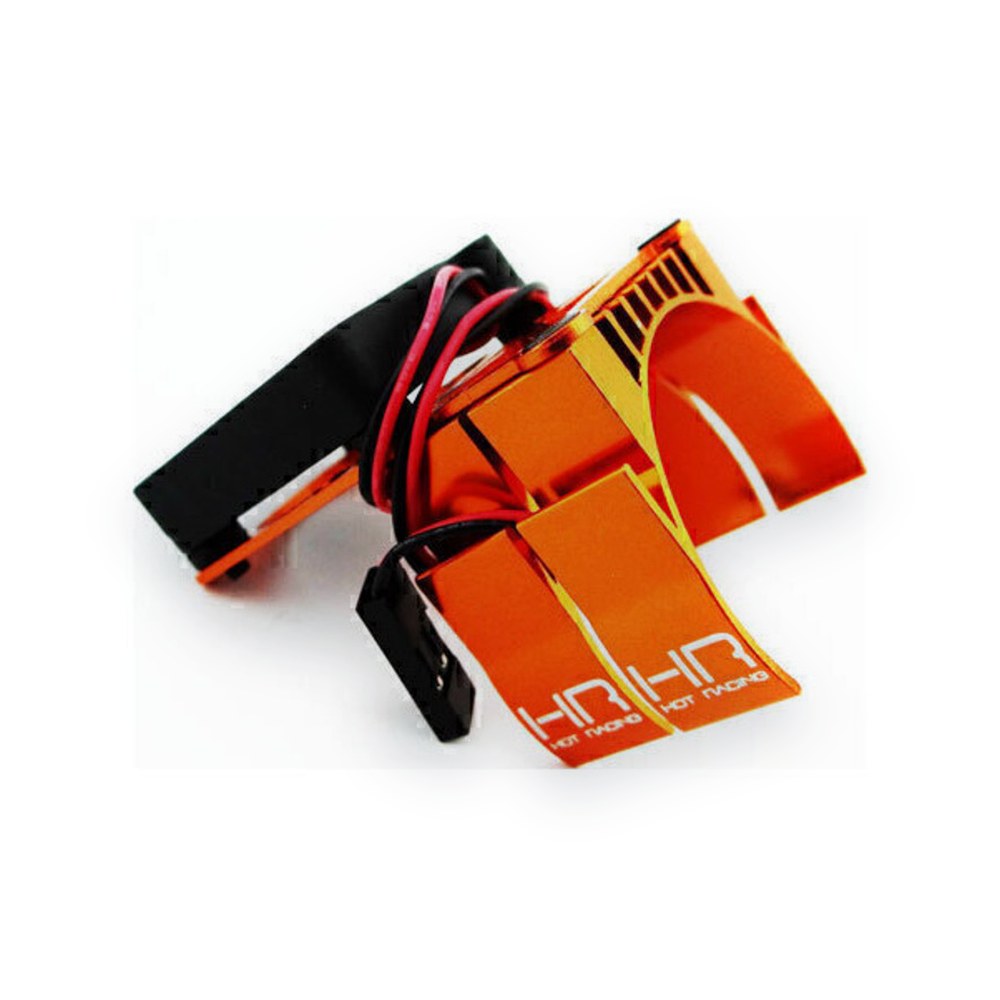

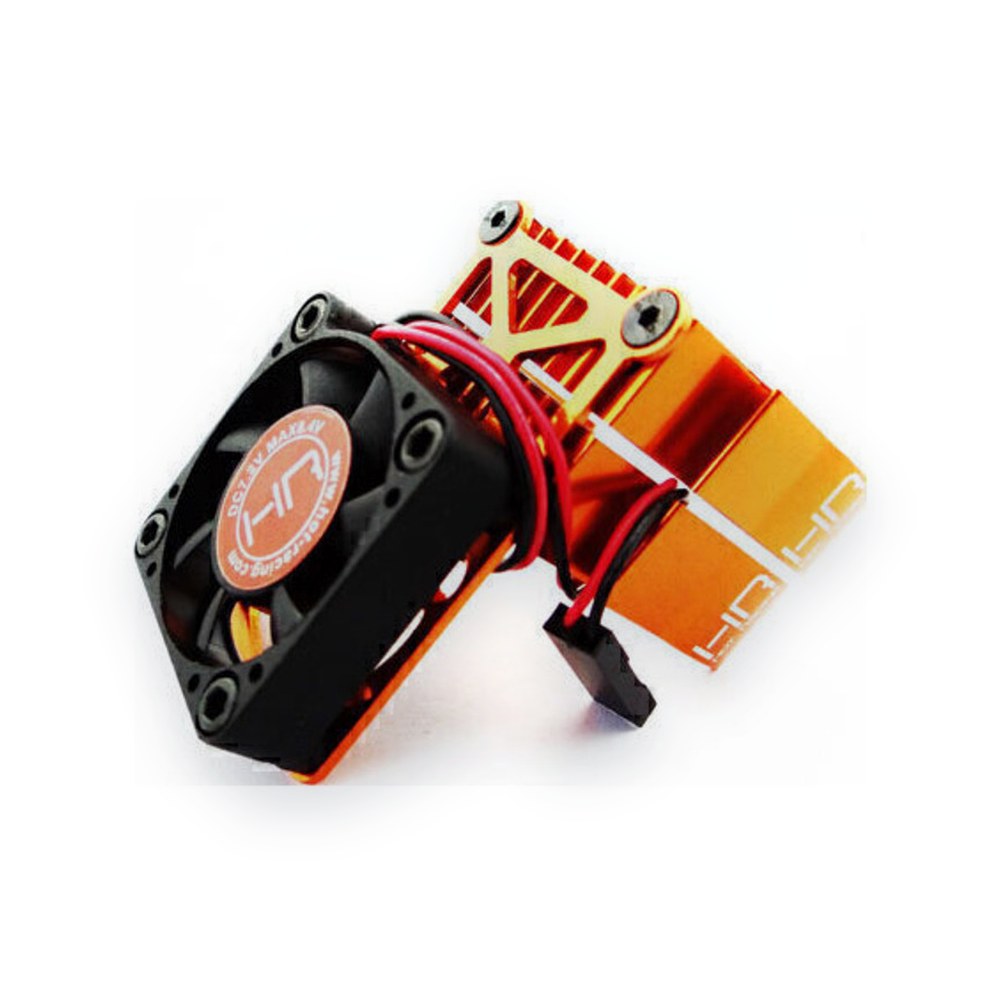

Universal clip-on motor heat sink with fan, in orange, for 540 and 550 size motors. The two-piece clip gives eight width settings.

Features

• Keeps the motor running cooler
• Aluminum construction
• Clips onto 540 and 550 motors with a 36mm can diameter
• Two-piece clip with eight width adjustments from 20mm to 40mm. M3 screws and nuts are needed for some configurations.
• Orange anodized finish
• Laser-etched Hot Racing insignia
• IN THE BOX:
• One heat sink with cooling fan

Requirements

• Some units need assembly with 1.5mm and 2mm hex wrenches
• Electrical hookup to a 7.2-8.4V max DC source
• The plug must be soldered or connected to a receiver port plug

Specifications

• Overall height: 39mm (1.54 in)
• Fan size: 30x30x7.5mm
• Fan mounting hole pattern: 24mm square
• Input voltage: DC 7.2-8.4V max

Note

• Some chassis do not have room for the fan assembly. Check the photos and use your judgment on fit.
• Color variants include MH550TE01 (black), MH550TE02 (red), MH550TE06 (blue), MH550TE07 (purple) and MH550TE16 (Tamiya blue).
• Replacement fan size: 30x30x7.5mm
• FITS:
• Traxxas E-Maxx
• Traxxas E-Maxx 3905
• Traxxas E-Maxx 3906
• Traxxas E-Revo 5603, 5605, 5608
• Traxxas Slash 2WD, all versions
• Traxxas Slash 4x4 (2024 an
