Hot Racing Losi Rock Rey Front CV Splined Axles, Drive Shafts

About this part

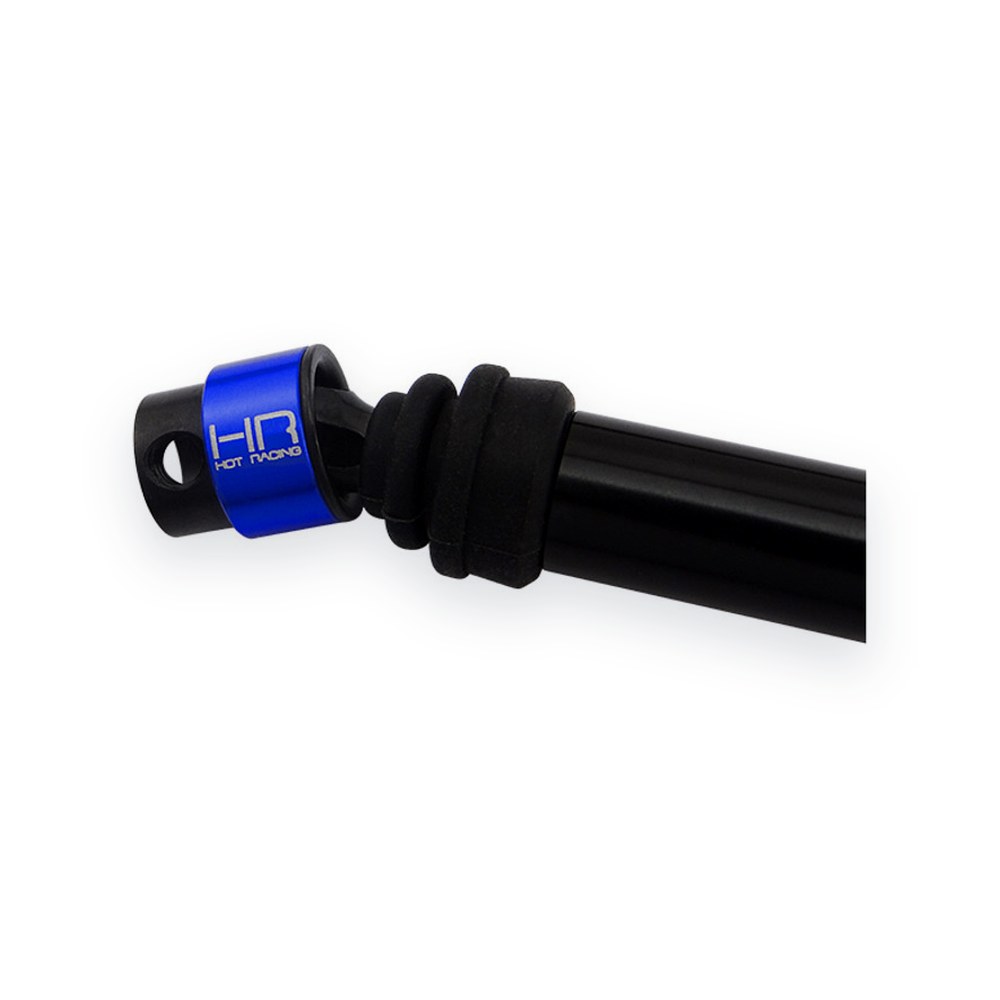

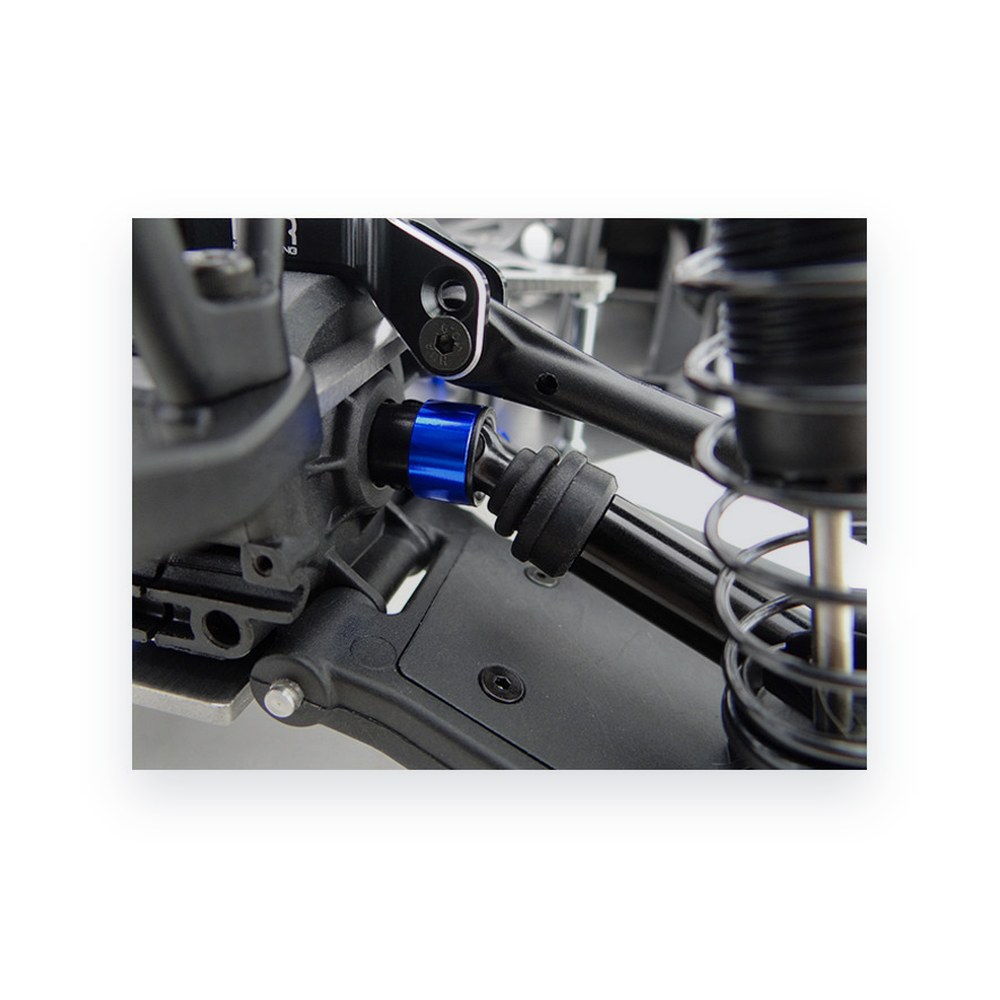

Hot Racing optional heavy-duty front splined star drive CVD axle kit for the Losi Rock Rey.

Features

• CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline and stub axle
• CNC machined aluminum slider tube
• Blue anodized aluminum pin capture rings with rubber O-rings to prevent movement
• Rubber dust cover boots
• Replaces the factory plastic front drive axles

Includes

• Two (2) front splined CVD shaft assemblies

Requirements

• Installation to the drive assembly
• Use the stock drive pins VTA246001
• Grease is recommended for the CV joint and shaft spline
• Medium threadlock is recommended on screws threading into metal

Specifications

• Collapsed length, overall: 123mm
• Extended length, overall, zero shaft engagement: 156mm
• Collapsed length, wheel pin to outdrive pin: 107mm
• Extended length, wheel pin to outdrive pin, zero shaft engagement: 140mm

Notes

• Replaces the stock Losi axle LOS232020.
• Replacement parts from Hot Racing: SLD646LRR (stub axle), SLD496LRR (input coupler), SLD40LRR (slider shaft).
• FITS:
• Losi 1:10 Rock Rey 4WD Rock Racer

Fits

Replaces stock part
