Hot Racing CV Splined Drive Shaft, Lightweight Metal, 110-135 mm

About this part

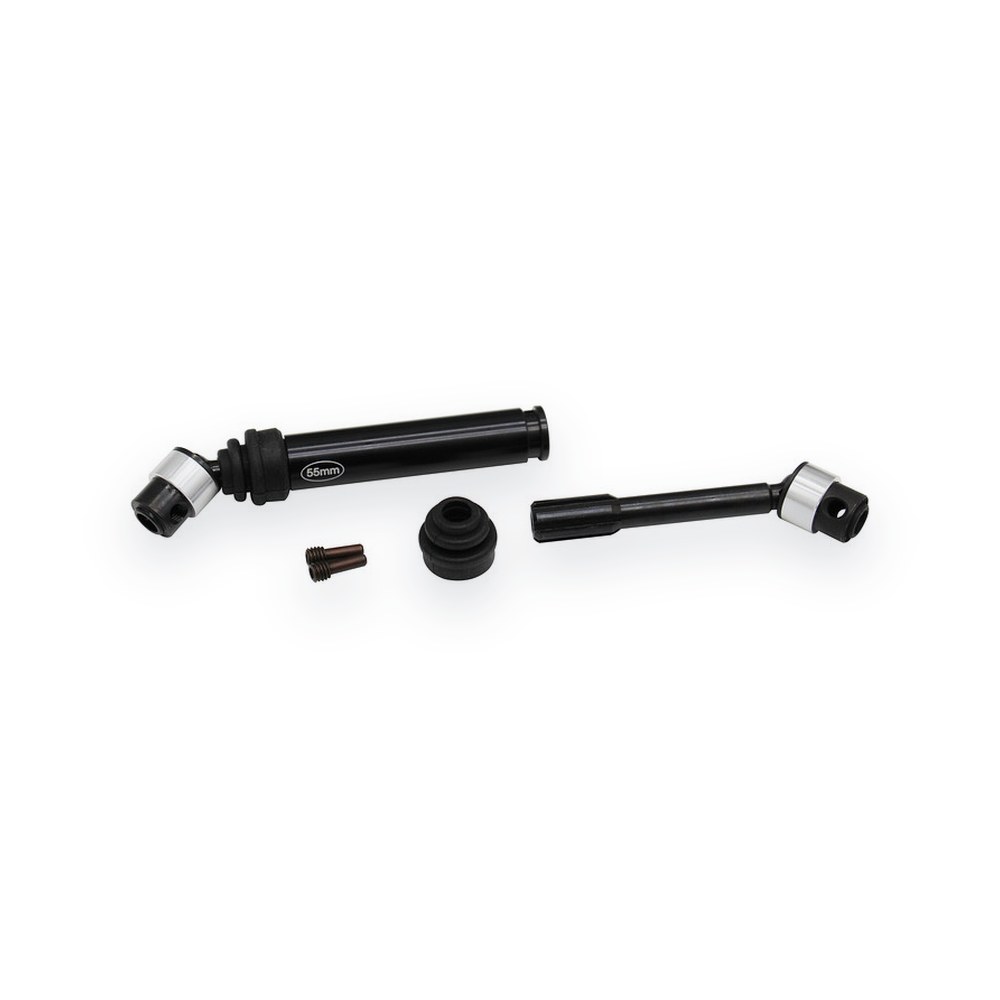

Hot Racing's heavy duty spline star drive axle kit is an upgrade for the Red Cat Gen8, SCX10 and Wraith. It replaces the factory plastic axles with a CNC machined steel and aluminum assembly.

Features

• CNC machined #45 hardened carbon steel and aluminum
• Hard black anodized aluminum slider
• Silver anodized aluminum pin capture rings with rubber o-rings to prevent movement
• CV pin setscrew eliminated by design
• Black #45 steel finish
• Rubber dust boot for protection from the elements
• INCLUDED:
• One rear CV splined drive shaft assembly

Requirements

• Removable blue threadlocking compound on screws that thread into metal
• Light grease on CV joints and slider splines to help them last

Specifications

• Weight: 38g
• Approximate collapsed length: 110mm
• Approximate extended length: 135mm

Notes

• Replaces factory plastic parts. The listing says replacement parts are included but does not name them.
• FITS:
• Axial AX-10 Deadbolt, Axial AX-10 Ridgecrest Crawler, Axial SCX-10 Scale Truck, Axial Wraith 4WD Rock Racer RTR, Redcat 1:10 Everest GEN8, Traxxas TRX-4 1:10 scale & trail crawler
• For the Axial SCX10 rear, Axial Wraith rear and TRA TRX-4 rear.
