Hot Racing Clod Buster Tamiya Complete Aluminum Moa Straight Axle

About this part

Hot Racing on-board power axle for the Tamiya Clod Buster or other custom R/C builds.

Features

• CNC machined 6061-T6 aluminum, anodized silver
• Nitride hardened steel gears, 0.8 mod (32P), in an updated gear set
• 10.85:1 internal gear reduction, in addition to the pinion and 31T spur reduction
• Compact gear case for a low center of gravity and more ground clearance
• New graphite gear box cover, #45 steel axles with 12 mm hex hubs
• 155 mm wide axle tube
• Full ball bearing transmission
• Aluminum servo, shock and linkage mounts
• Supports 8T to 17T, 32 pitch (0.8 mod) pinions

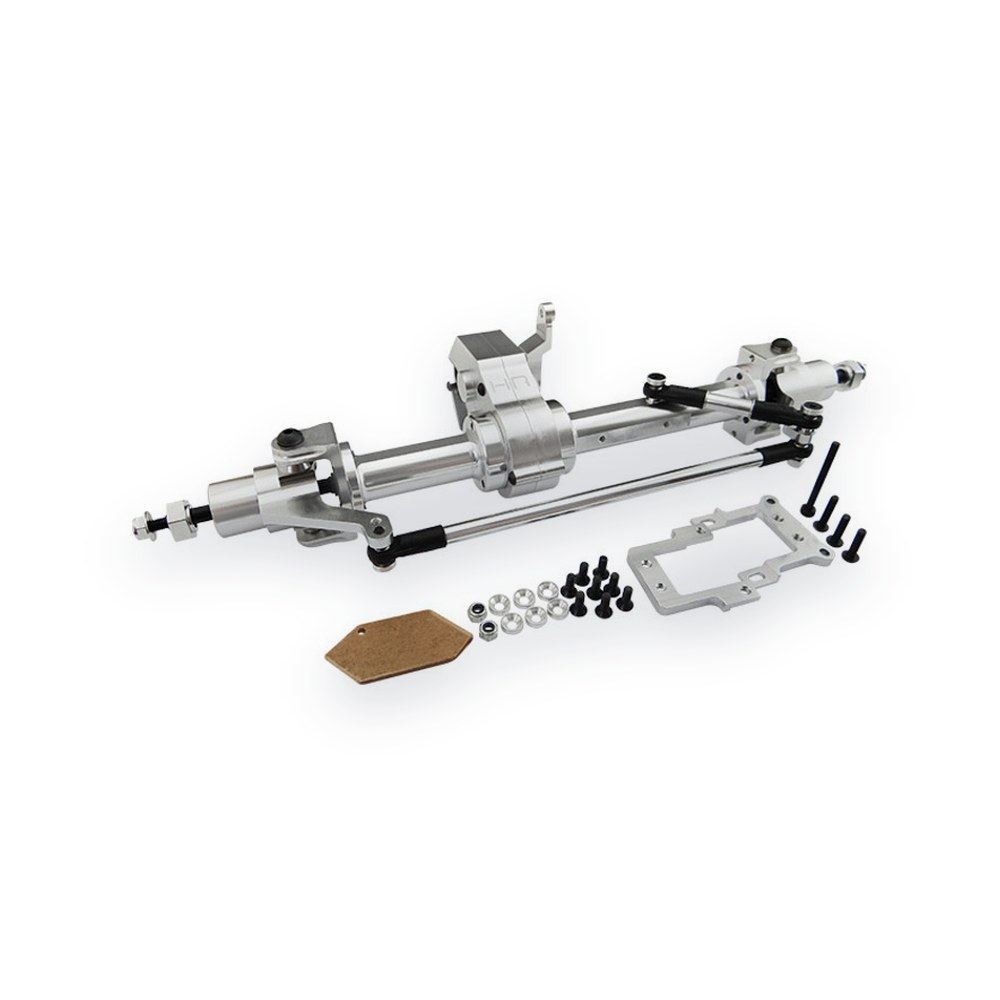

• Includes: one assembled power axle with servo mount, bearings, steel gears, steering tie rod knuckle, steel axles and 12 mm wheel hexes.

Specifications

• About 250 mm from wheel mounting surface to wheel mounting surface.

Requirements

• Expert model building skills, a new 32 pitch pinion gear, and a linked suspension. It is NOT compatible with the factory radius arm (ladder bar) suspension.
• Replacement Hot Racing parts: RSCP12SG (internal gear set) and RCB12XD (axles).
• Not intended for racing or hard bashing.
