Hot Racing Clod Buster Tamiya Laydown Servo Straight Axle

About this part

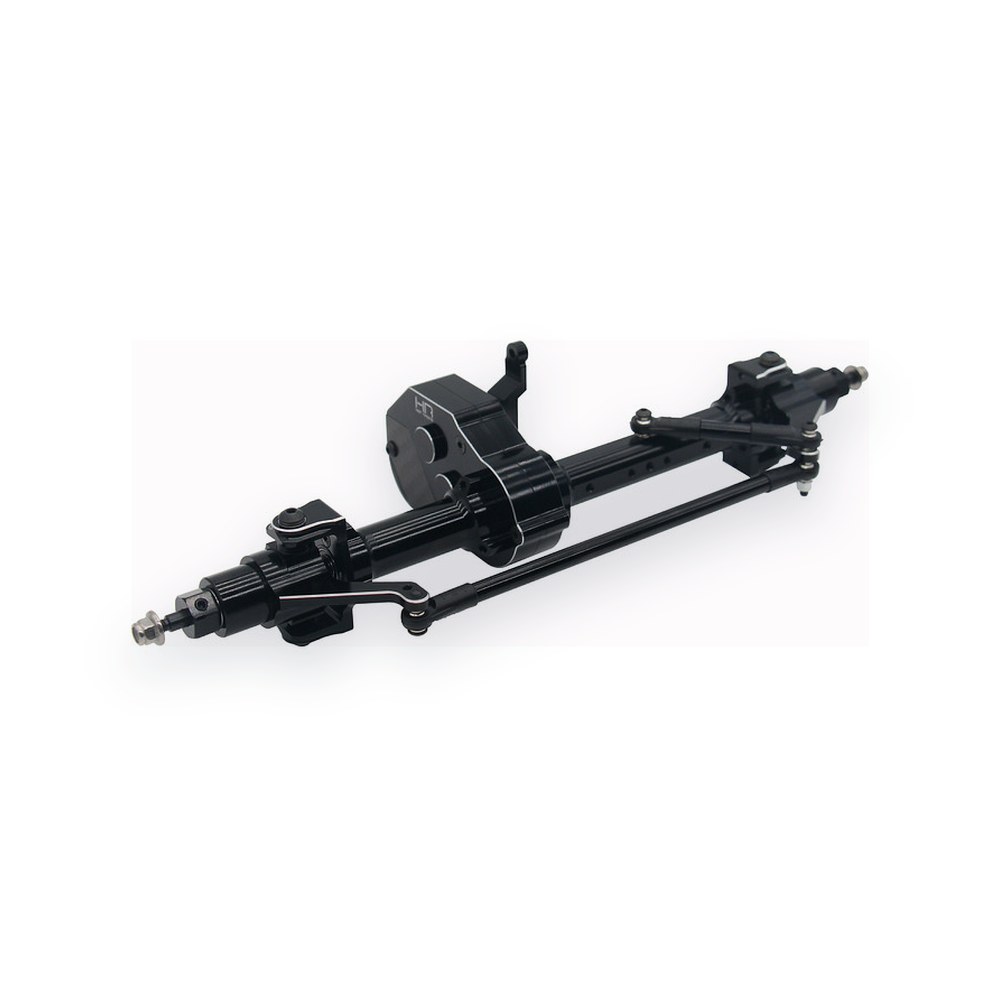

Hot Racing on-board power axle for the Tamiya Cold Buster or other custom R/C builds. Please review features, specifications, requirements, and comments below.

Features

• CNC machined 6061-T6 aluminum, anodized Black
• Laydown servo mount on Straight Axle
• Nitride hardened steel gears with 0.8 mod (32P) Gear update
• 10.85:1 internal gear reduction (in addition to the pinion/ 31T spur reduction)
• Compact gear case for a low center of gravity and increased ground clearance

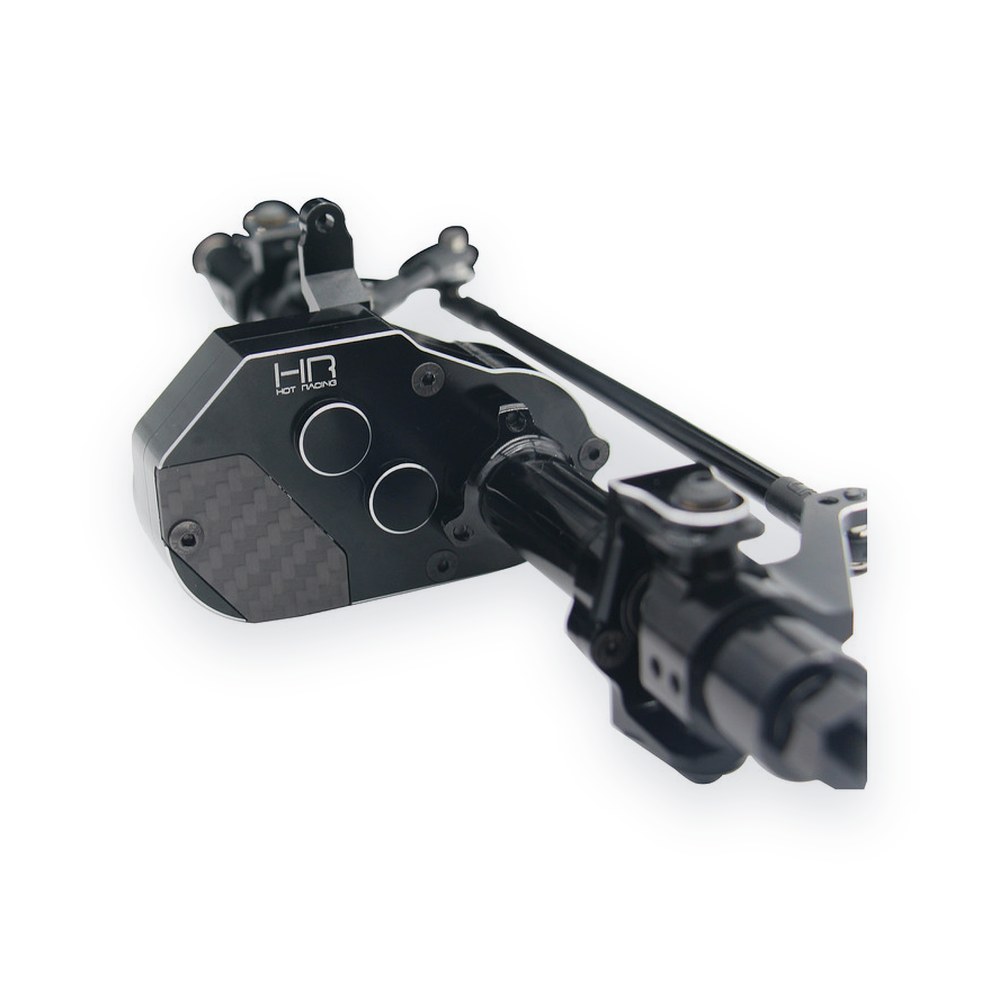

• New Graphite gear box cover - #45 steel axles with 12mm hex hubs
• Beefy 155mm wide axle tube
• Full ball bearing transmission
• Aluminum servo, shock, and linkage mounts
• Supports 8T to 17T 32 pitch (0.8 Mod) pinion gears

You will receive

• One (1) assembled OB power axle with servo mount, bearings, steel gears, steering tie rod Knuckle, steel axles, and 12mm wheel hexes

Specifications

• Width from wheel mounting surface to wheel mounting surface: ~250mm

Requirements

• Expert model building skills
• This kit requires a linked suspension and is NOT compatible with the factory radius arm (ladder bar) suspension
• New 32 pitch pinion gear

Comments

• This axle is not intended for racing or hard bashing. It is not designed for high-power b

Fits
