Hot Racing 1.9 Beadlock Wagon Wheels, Black Steel, 6-Lug, 12mm Hex (4)

About this part

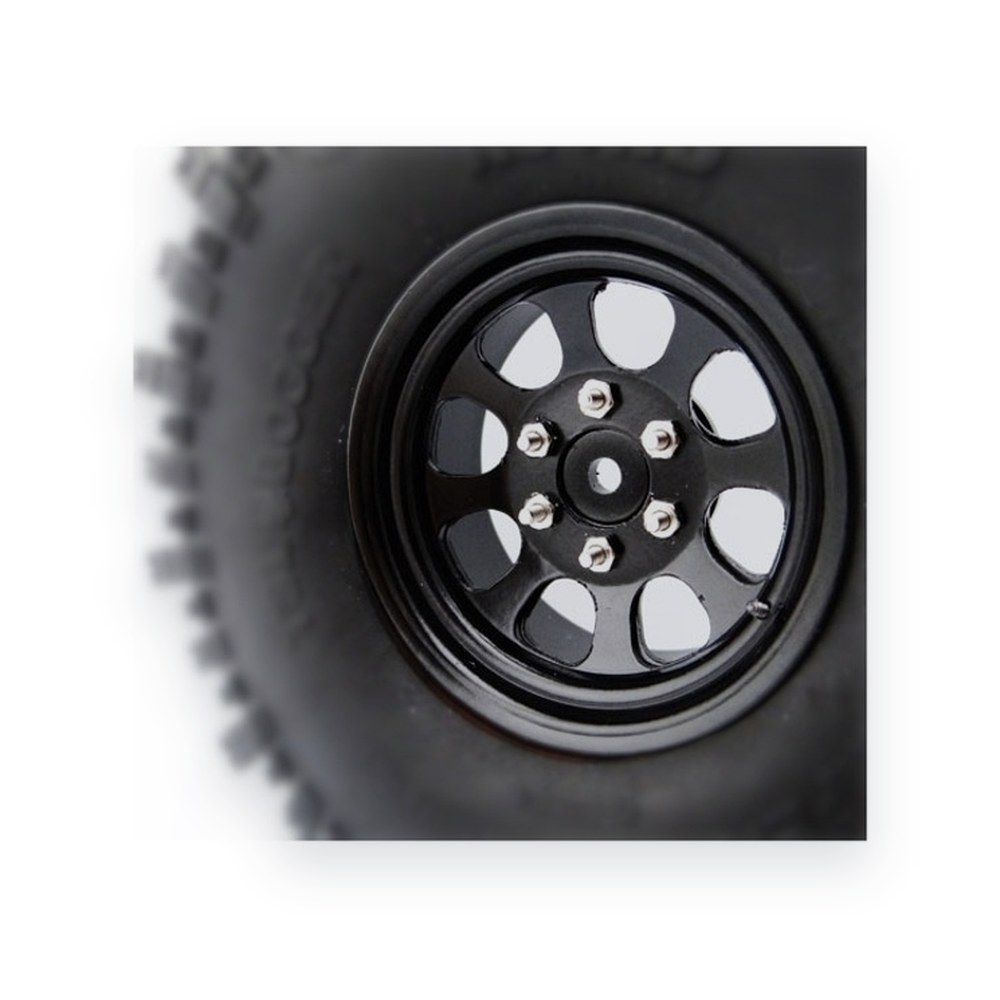

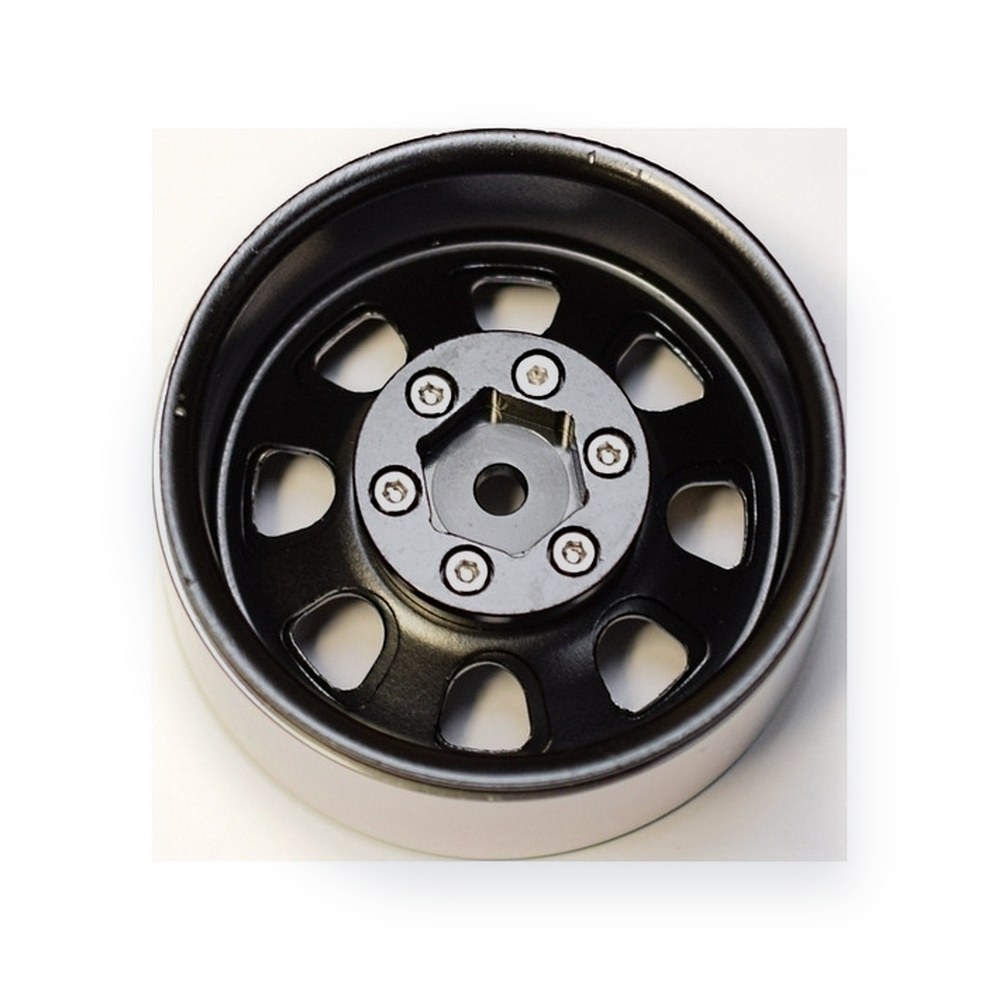

These are Hot Racing 1.9 six-lug steel wagon wheels in black, with 12mm hex hubs. The stamped steel is smoothed, nickel plated and finished with durable powder coating. The three-piece beadlock design needs no glue, so tires and foams can be switched without new rims. The heavy 66g wheels add weight low on the vehicle for traction and stability. The hub is CNC machined 6061 aluminum, with a scale-looking valve stem and an aluminum inner beadlock ring. Four steel beadlock wheels are included.

Requirements

• 1.9 tires and foams, installation, 1.5mm hex wrench, 4mm nut driver or socket, medium threadlock for hub bolts
• The center hole is 4.3mm for an M4 axle. A larger protruding axle means the hub holes must be drilled out.

Specifications

• Hub: 12mm hex, for 1.9 in tires
• Outer rim lip diameter: 53.5mm
• Inside rim diameter: 47mm
• Weight: 66g each
• Width, bead to bead: 25mm
• Backspacing: 10.5mm
• Screws: M2x10mm
• Replacement hardware: BLWS201 (black M2x10mm) or BLWS208 (chrome M2x10mm)
• Other styles include BLW19H38 (white 5-lug 8-hole pin hub) and BLW19HS01 (black 6-lug 8-hole 12mm hex hub).
• FITS:
• Axial AX-10 Scorpion Crawler, Axial Capra, SCX-10 II, SCX-10 II 6 wheel, SCX-10 II Deadbolt, SCX-10
