Hot Racing Arrma 1:10 4x4 3s 4s Aluminum Bearing Steering Bellcrank

About this part

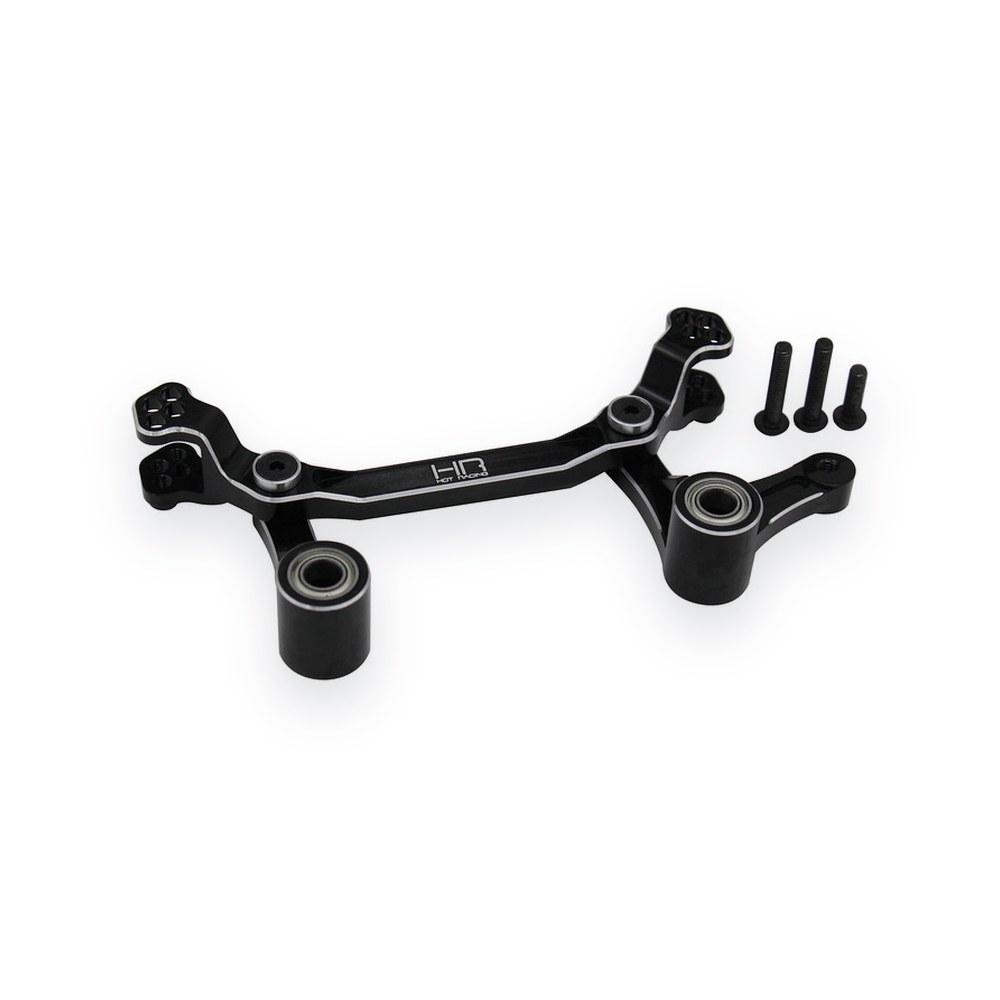

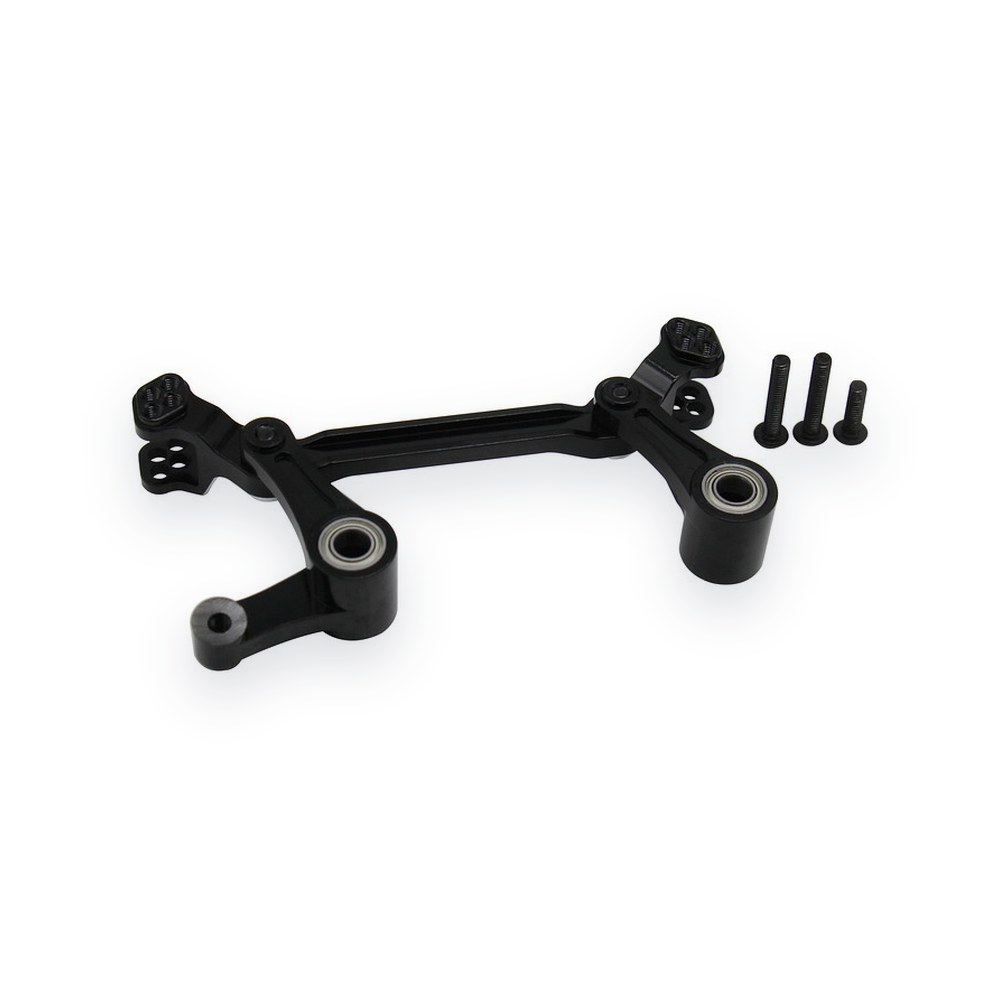

Hot Racing aluminum steering bellcrank for Arrma 1/10 4X4 vehicles. Check the notes below for specific fit information.

Features

• Improves steering precision
• CNC machined aluminum with ball bearings for a rigid, strong steering assembly
• IN THE BOX:
• One (1) steering ball bearing bellcrank

Requirements

• A removable thread-locking adhesive is recommended on screws that thread into metal

Specifications

• (4) bearings: 5x10x4mm
• (2) bushings: M3 ID, 5mm OD, 5.5mm length
• (2) M3x12mm flat head screws
• (2) M3x15mm button head screws
• (1) M3x10mm button head screw

Notes

• Replaces Arrma plastic AR340132 steering bellcranks.
• Known fits by Arrma part number. Entries marked optional may fit but may need modification.
• Big Rock 4X4 3S BLX: AR102711 (not V3 Crew Cab)
• Granite 4X4 3S BLX: AR102666 (not V3, ARA4302V3T1/2)
• Granite 4X4: AR102665 (green), AR102676 (red)
• Senton 4X4: AR102667 (red), AR102678 (blue)
• Senton 4X4 3S BLX: AR102668
• Typhon 4X4 3S BLX: AR1026

Fits

Replaces stock part
