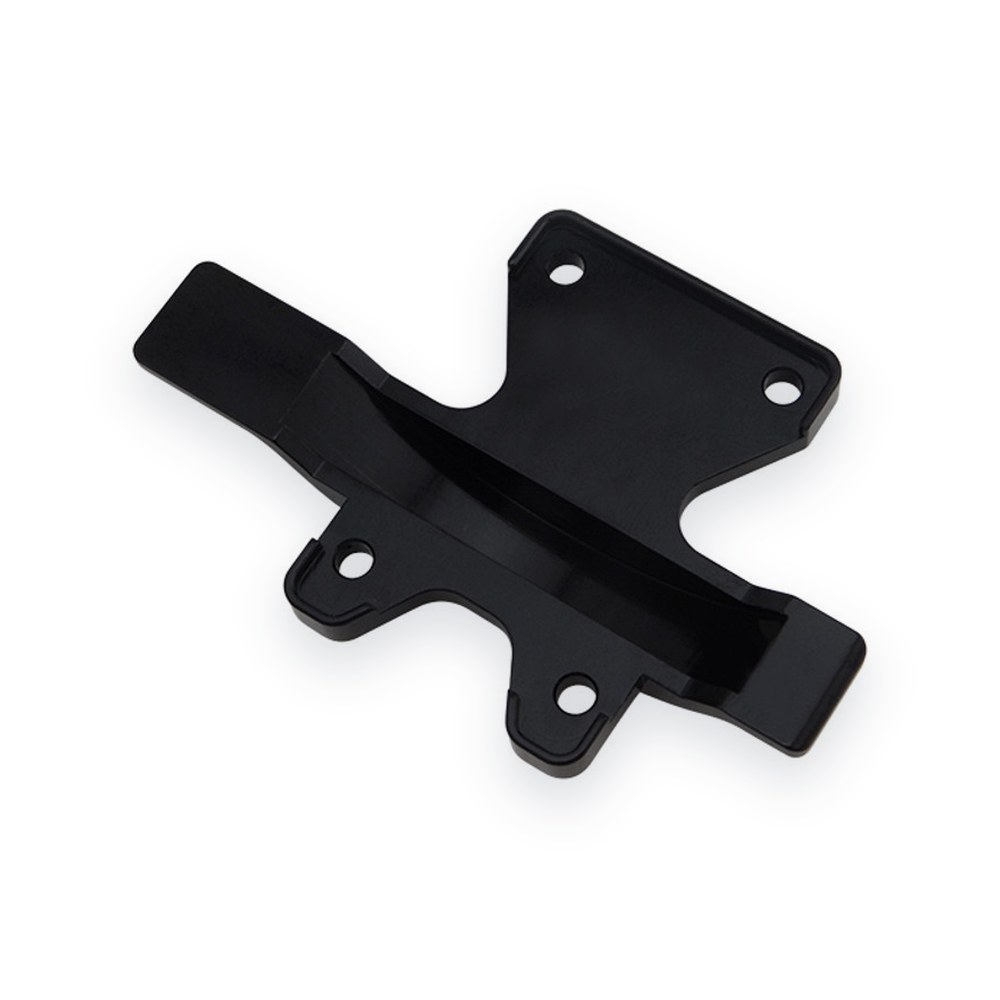

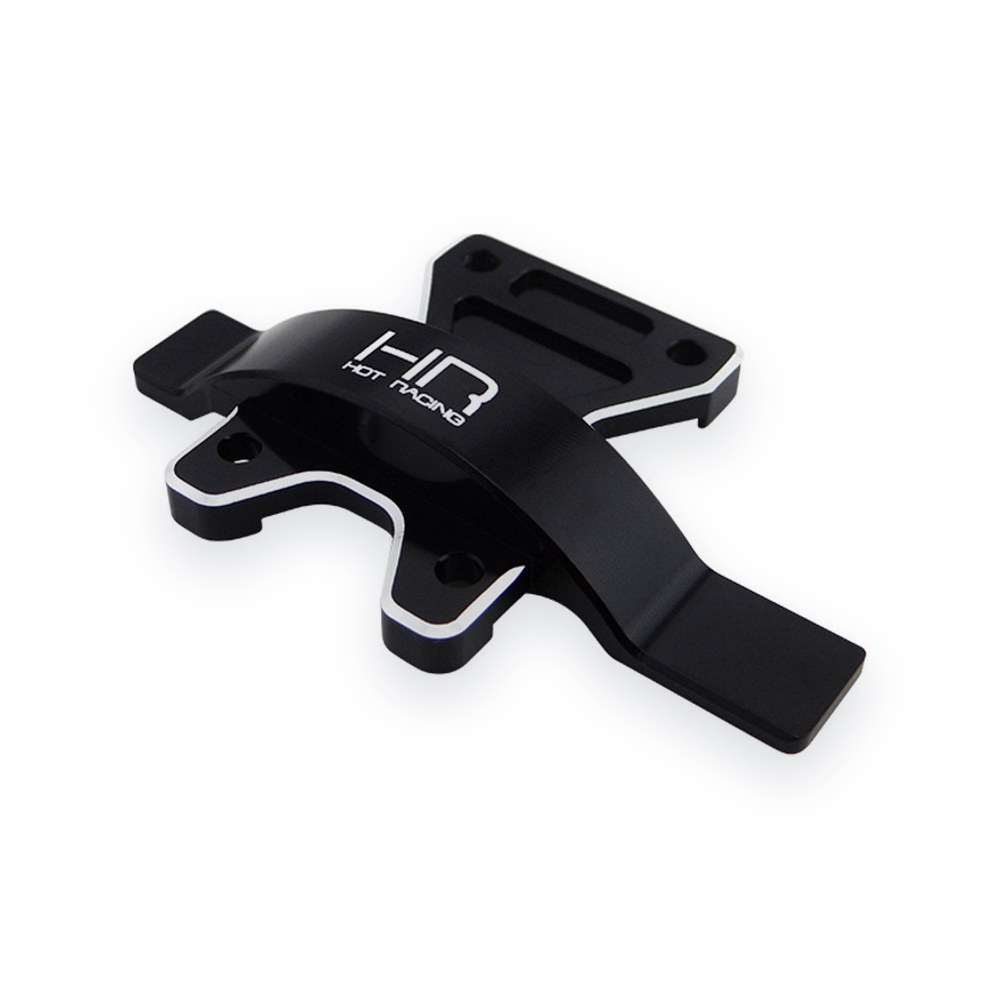

Hot Racing Arrma Kraton Outcast Center Diff Gear Cover Brace, Aluminum

About this part

Aluminum center diff brace and gear cover for the Arrma Kraton, Outcast, Senton, Talion and Typhon BLX. Vehicle compatibility is listed in the notes below.

Features

• CNC machined 6061 aluminum, anodized black
• Strengthens and stiffens the diff mount

You will receive

• One (1) aluminum center differential brace gear cover
• Mounting hardware

Requirements

• Installation
• Medium thread lock is recommended on the screw

Comments

• Replaces part of the stock plastic motor mount, AR310428. Use with support AON38A01 and motor mount AON38M01.
• Known to fit the following Arrma part numbers. The vehicle part number is on Arrma's website, in the vehicle literature, or on the box near the barcode. A vehicle marked optional may fit but may need modification.
• Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green)
• Notorious: AR106034/6 (black/blue)
• Outcast: AR106021, AR106027, AR106032/3 (silver/orange)
• Senton: AR106007, AR102654, AR102673
• Talion: AR106003, AR106014, AR106030 (2018 V3 model)
• Typhon: AR106001, AR106013, AR106028

Fits

Replaces stock part
