Hot Racing Micro-B Chassis Conversion, 6061, +5mm HS

About this part

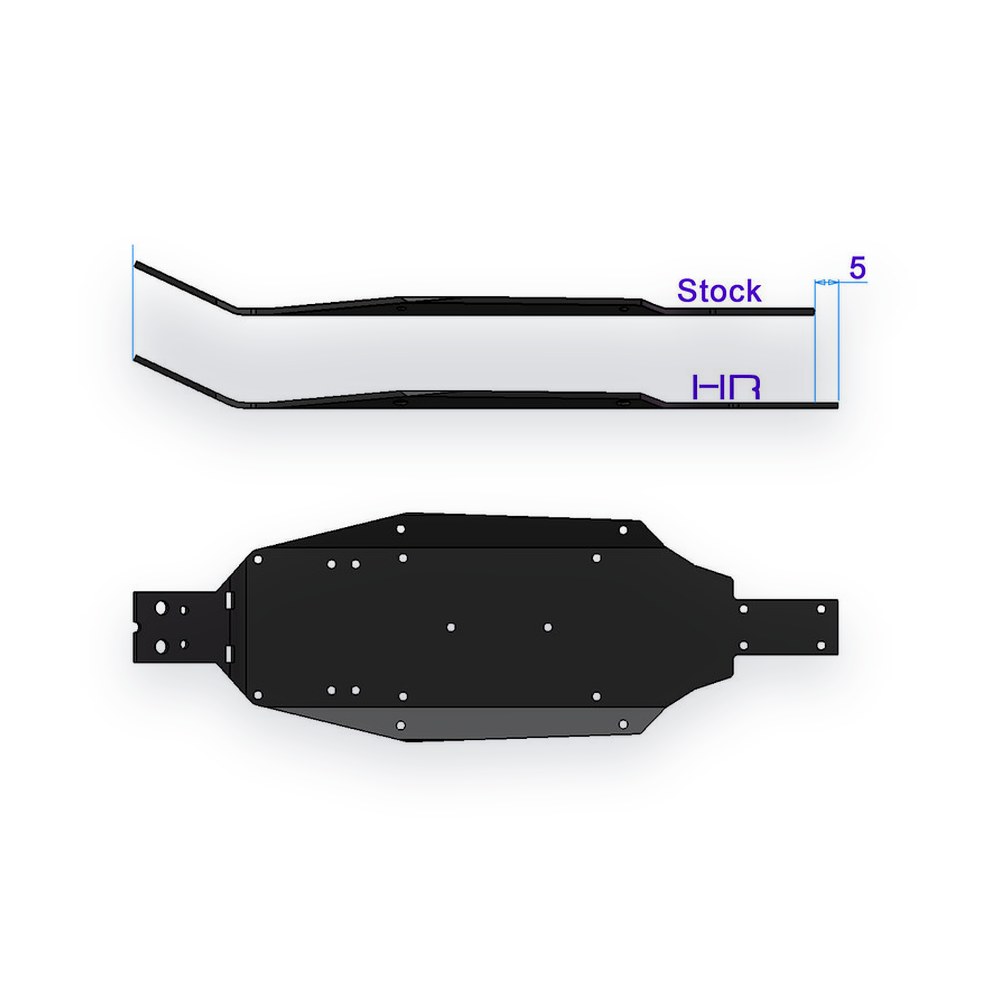

A +5mm high-speed chassis conversion kit for the Losi Micro B. The 6061 hard anodized chassis is +5mm and allows a servo upgrade with easier high-speed handling. The CNC machined aluminum components are anodized black. A 6061 servo mounting block and side rails give a rigid, tweak-free setup. There is room to mount a LiPo to adjust weight balance, and the 6061 top plate has space for upgraded electronics. INCLUDED: one 6061 +5mm chassis, one 6061 top plate, one 6061 red knurled thumb nut, one battery o-ring, two 6061 o-ring battery mounts, and installation hardware with motor screws and washers.

Requirements

• Losi Micro B, R/C building skills, removable blue threadlocking compound for screws threading into metal, and servo tape for electronics.

Note

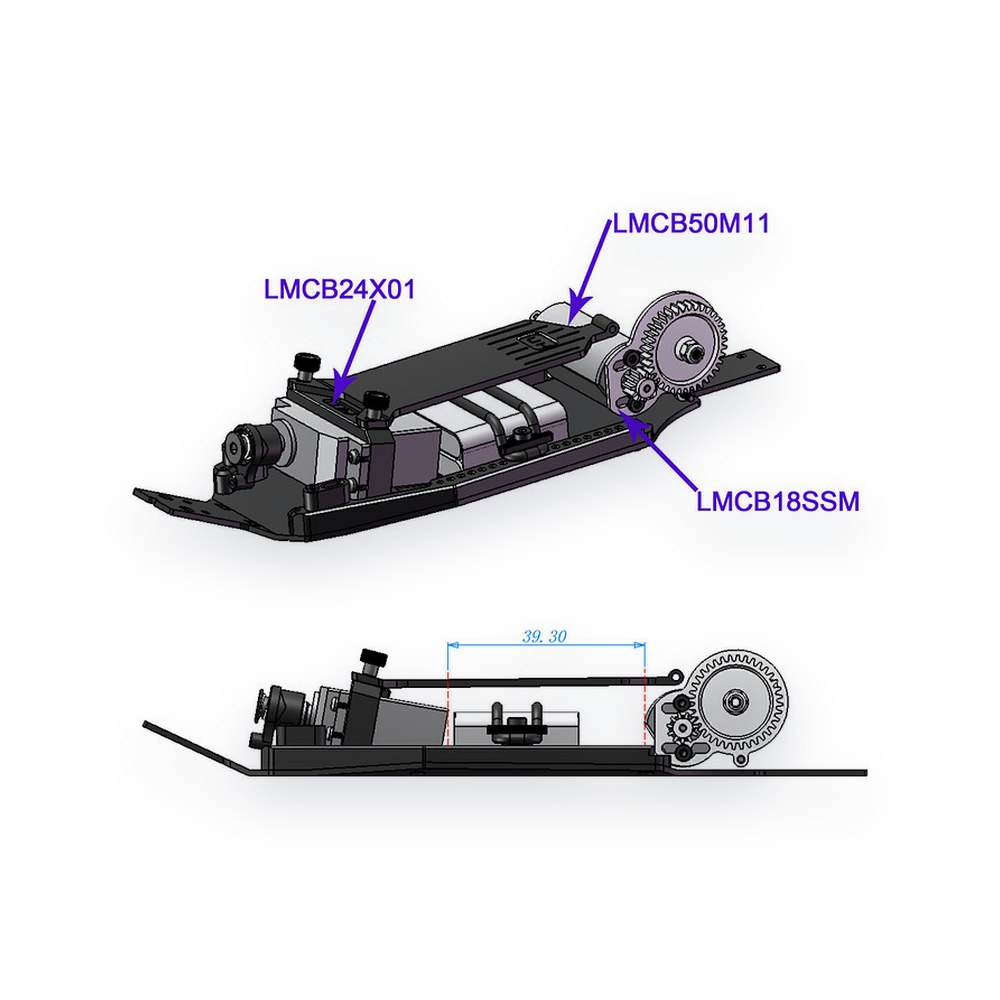

• To use a Savox (SH-0255MG, SH-0257MG, SH-0256) or Reef S129 / S25 type servo, you will need LMCB24X01 and either LMCB48SH21 or LMCB48SH25.
• Fits: Losi 1:24 Micro-B, Losi 1:28 Micro-T

Fits
