Hot Racing 1:10 Dual Motor Power Winch, Manual Switch

About this part

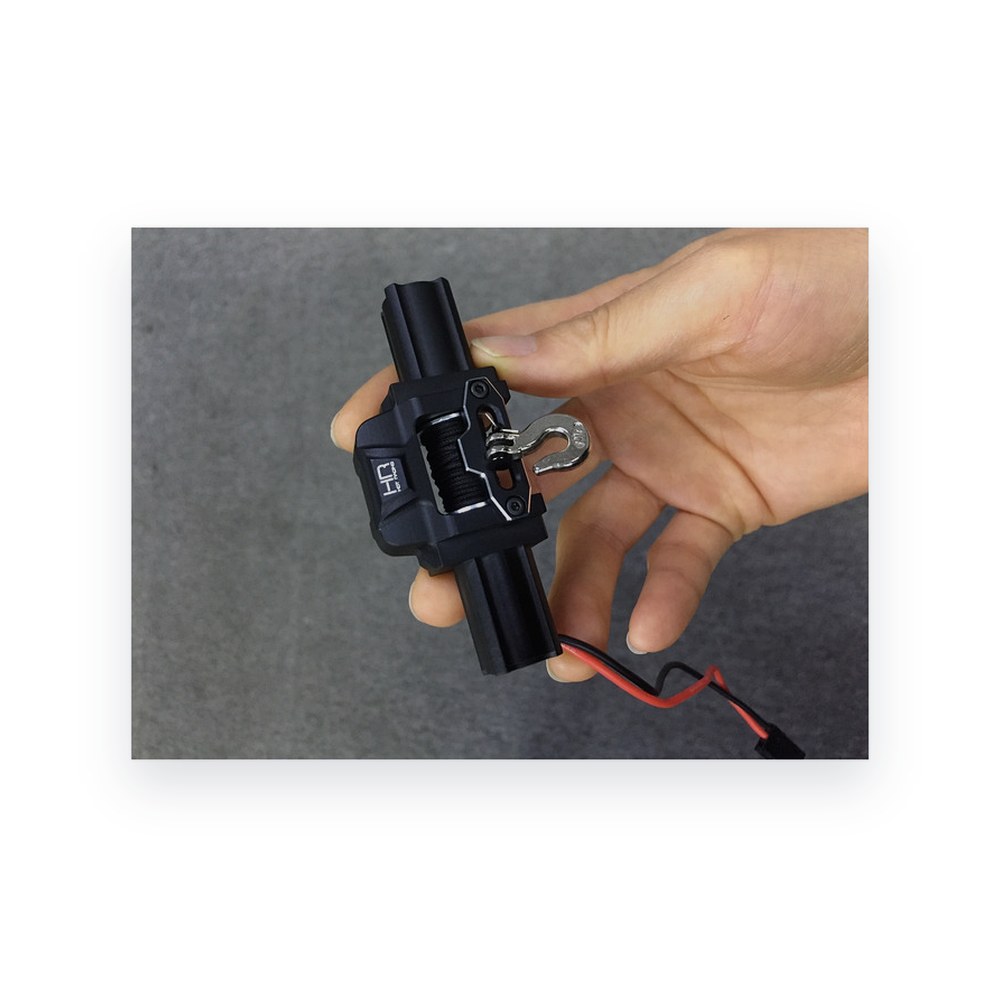

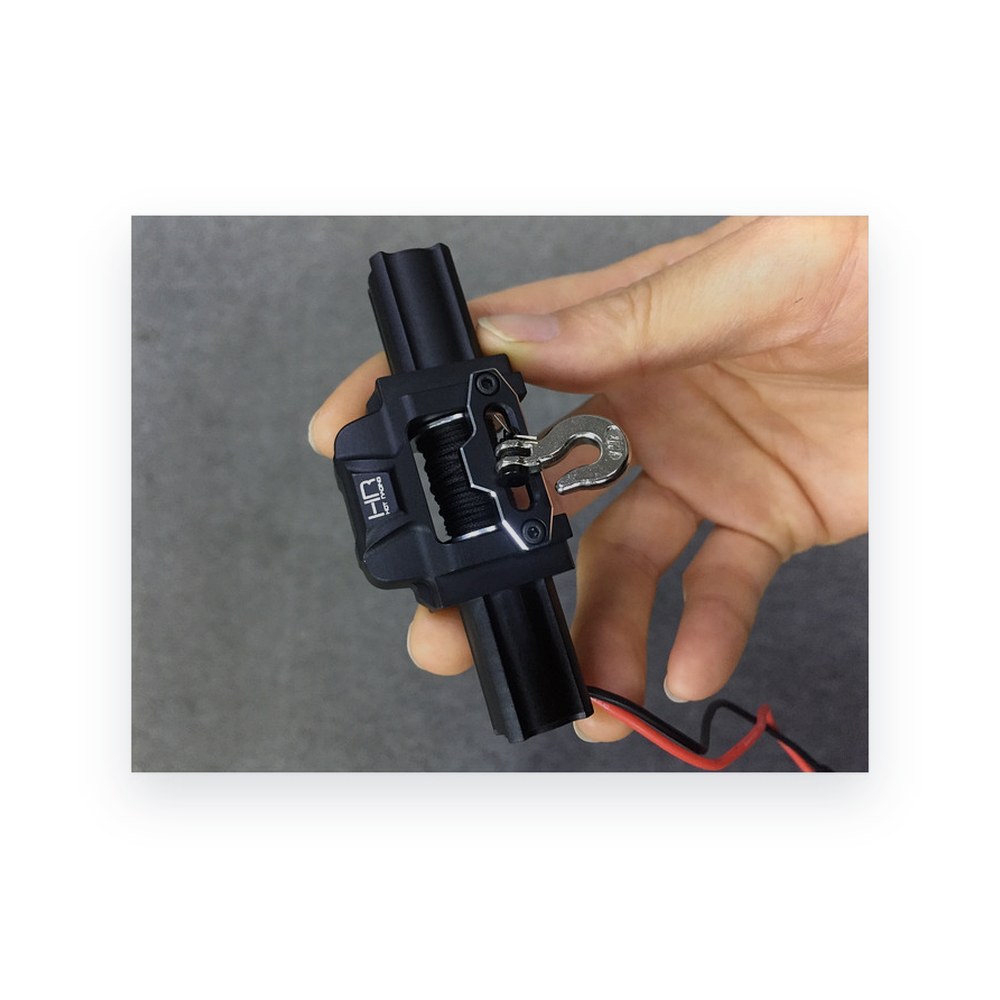

Hot Racing manual switch dual motor winch with high torque, built for scale looks and pulling power.

Features

• High torque dual motor with gearbox reduction
• Full CNC machined billet aluminum case, black anodized
• CNC machined aluminum fairlead
• Works with the ACC80908 die-cast hook, plated silver
• Pre-wound 3 ft synthetic winch line
• Low RPM and low gear ratio
• Aluminum winch mounting plate
• Receiver connection
• Forward, off and reverse switch

You will receive

• One (1) dual motor winch with fairlead and hook
• One (1) aluminum mounting plate
• One (1) control switch and lead wire
• Hardware

Specifications

• Supply voltage 6V to 12V (compatible with 2S or 3S LiPo, among other sources)
• Current draw 300 mA
• Internal gear reduction 346:1
• Drum speed 80 RPM
• Line length 3 ft / 0.9 m
• Winch mounting 4 x M2 on a 24 x 17 mm rectangle
• Plate mounting 31 x 17 mm and 33 x 9 mm rectangles

Requirements

• Apply a light coat of medium threadlock (blue threadlocking compound) to the mounting screws.

Fits
