Hot Racing Arrma 1:10 V2 4S, Aluminum V2 Front Steering Blocks

About this part

Hot Racing aluminum front steering blocks with oversize bearings, left and right, for Arrma V1 and V2 4S vehicles.

Features

• CNC machined aluminum, anodized black
• V2 double shear design with two 4mm carbon fiber steering arms
• 12 x 21 x 5 mm oversize bearings
• Machined chamfered edges
• Laser etched lettering
• Replaces the factory plastic steering blocks

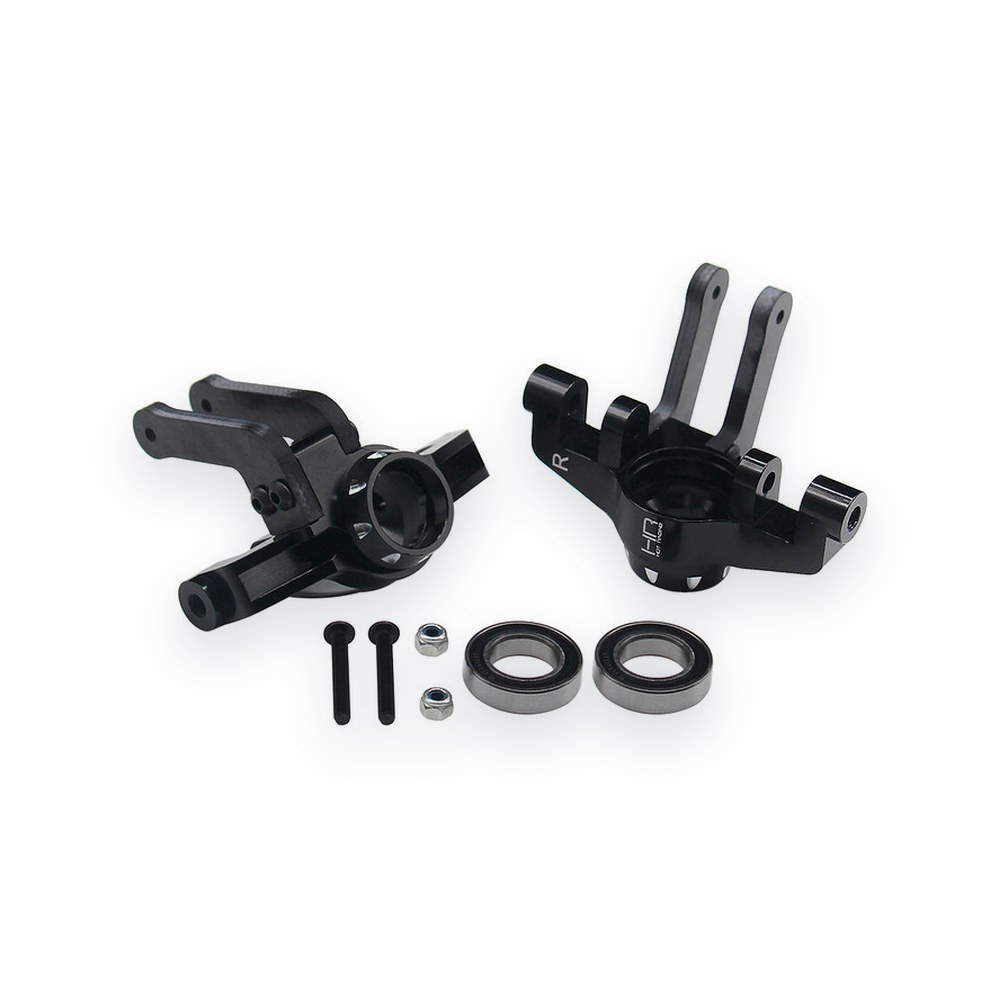

• IN THE BOX:
• Left and right aluminum steering knuckles
• Two 12 x 21 x 5 mm oversize bearings

Requirements

• Installation
• A removable thread lock (blue) is recommended on the threads

Notes

• The V2 version now uses the double shear design with two 4mm carbon fiber steering arms.

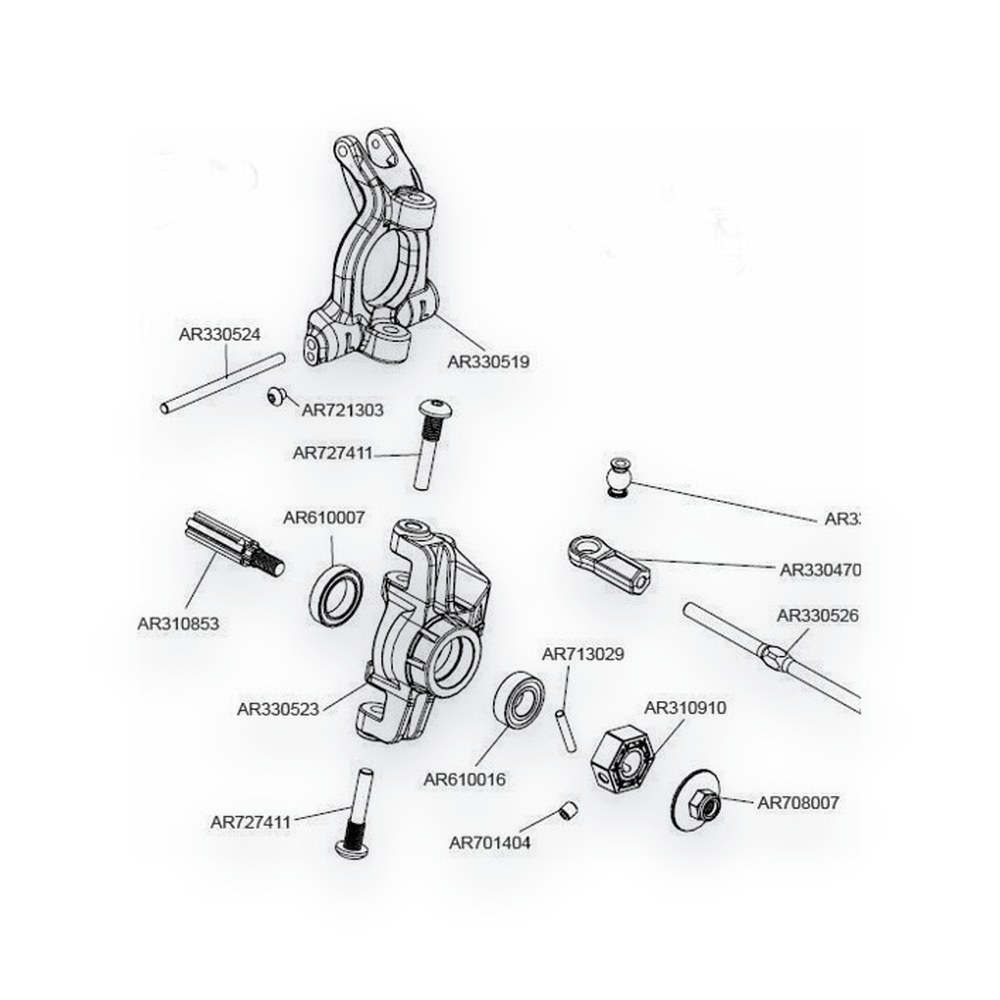

• Replaces Arrma stock plastic AR330523 steering blocks (ARAC9366 and ARAC9356).
• Known to fit these Arrma part numbers. You can find the vehicle part number on Arrma's website, in the literature that came with the vehicle, or on the box near the barcode. Where a vehicle is marked optional, the part may fit but may need some modification.
• Kraton 4X4 4S BLX: ARA102690, ARA4408V2T1
• OutCast 4X4 4S BLX: ARA102692

Fits

Replaces stock part
