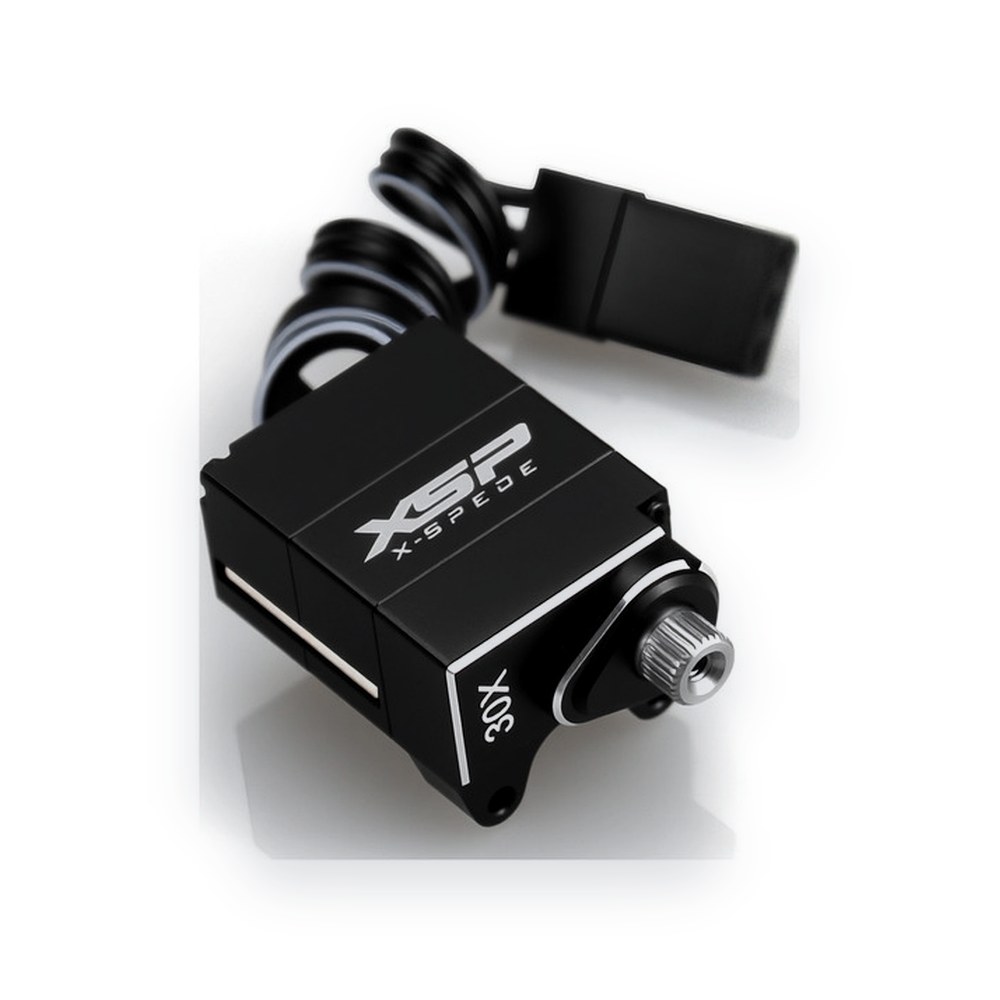

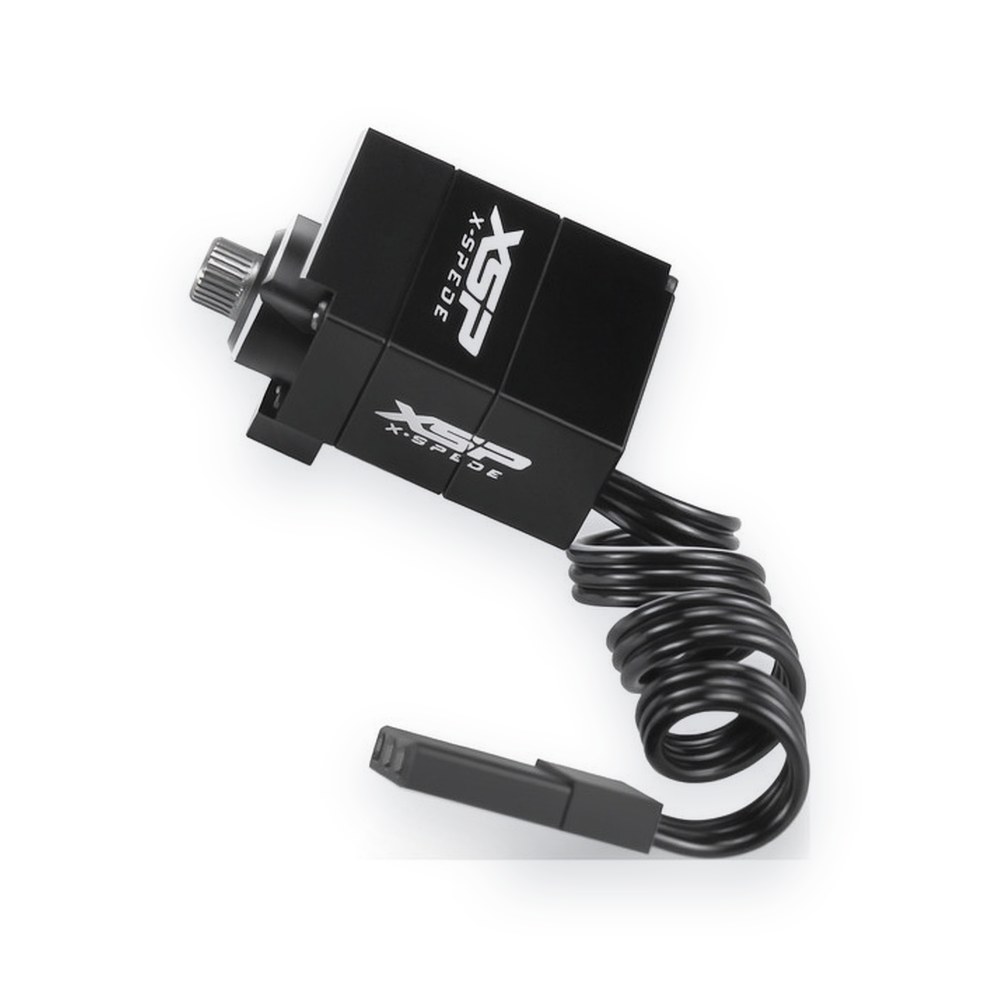

X-Spede SCX30 Aluminum Torque Tune Micro Servo

About this part

An aluminum-cased Torque Tune micro servo from X-Spede for the Axial SCX30. It has a CNC machined aluminum case and a metal gear set for higher steering loads, with more torque for better steering.

Features

• CNC machined aluminum servo case
• Metal gear set built to handle higher steering loads
• Higher torque output for better steering performance
• Works with the stock servo saver, which absorbs impacts and protects the servo gears

Specifications

• Motor type: brushed coreless
• Gear type: metal
• Case material: aluminum
• Feedback type: potentiometer
• Operating voltage: 5 to 6.0V
• Control signal: PWM
• No-load speed (6V): 0.050 sec/60
• No-load current (6V): 110mA
• Stall torque (6V): 1.3 kgf-cm
• Stall current (6V): 660mA
• Operating angle: 180 degrees (500 to 2500 usec)
• Dimensions: 15.2 x 12.85 x 21.45mm
• Wire length: 115mm JR, 28AWG
• Weight: 7.3g
• Waterproof: No
