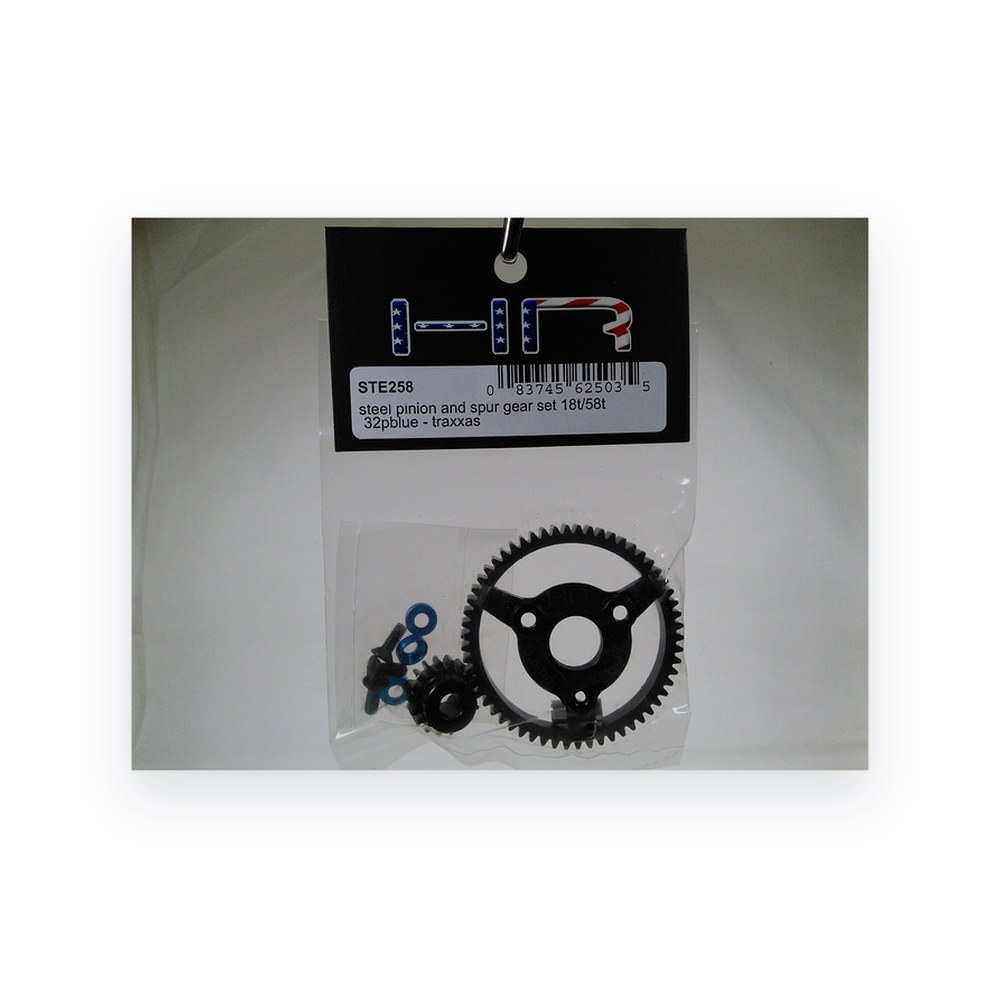

Hot Racing TRA Steel Pinion and Spur Gear Set, 18t/58t 32p (Blue)

About this part

Hardened steel pinion and spur gear set for the TRA Bandit, Rustler, 2WD Slash and 2WD Stampede. It has an 18 tooth pinion and a 58 tooth spur in 32 pitch (0.8 module). The aluminum pinion sleeve lets the pinion run on either a 1/8 inch or a 5mm motor shaft. The blue washers are anodized countersunk aluminum.

Features

• CNC machined and lightened hardened steel construction
• Replaces the stock nylon spur gear
• Rugged 0.8 module, 32 pitch teeth for brushless power
• Black oxide coating for durability and corrosion resistance
• Blue anodized countersunk aluminum washers
• High strength hardware

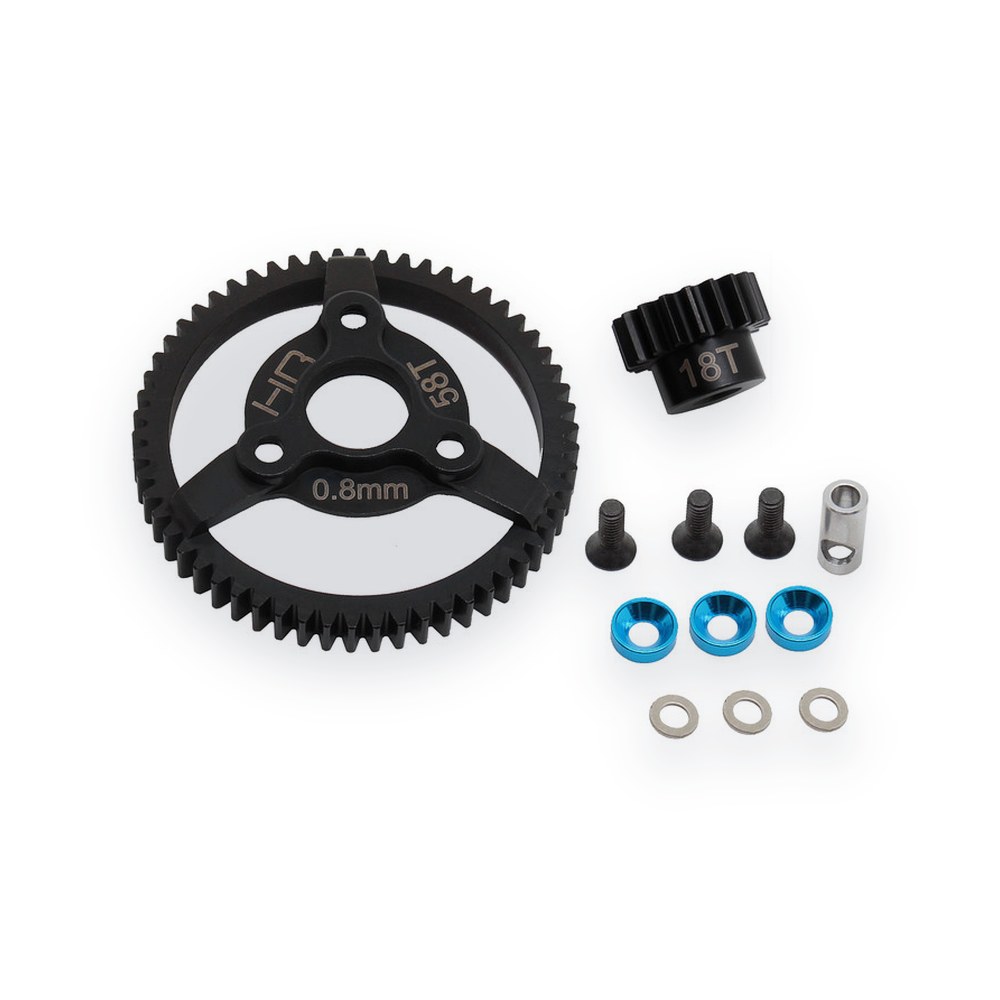

You will receive

• One (1) 18 tooth, 32 pitch (0.8 module) pinion gear
• One (1) 58 tooth, 32 pitch (0.8 module) spur gear
• Three (3) mounting screws
• Three (3) blue anodized countersunk washers
• One (1) pinion adapter sleeve
• Three (3) washers, to use under the countersunk washers when the screw ends would otherwise stick through the spur backing plate

Specifications

• Teeth: 18T and 58T
• Pitch: 32 (0.8 module)
• Mounting holes: 3
• Face width: about 5mm

Comments

• Hot Racing motor lock plate TE18L06 is recommended for secure motor mounting. Keep the motor below 180F and the ESC below 160F. Excess heat shortens the
