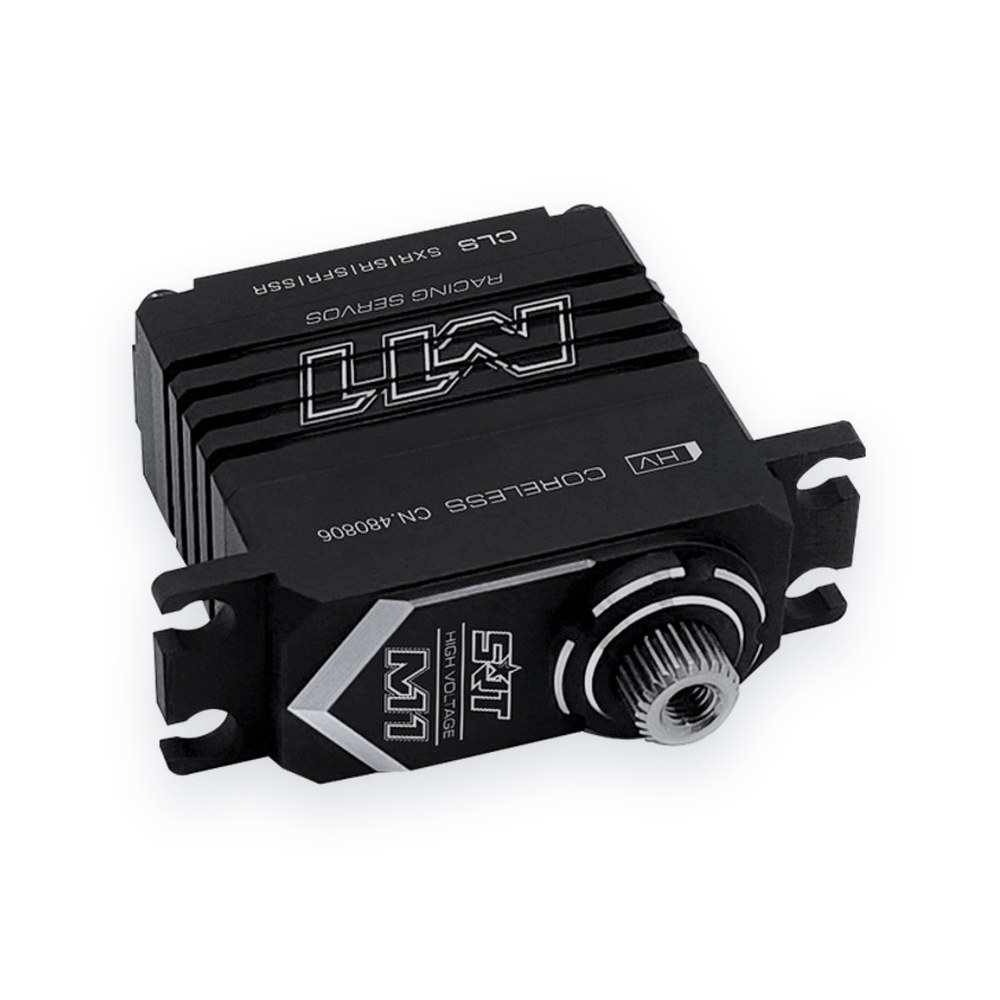

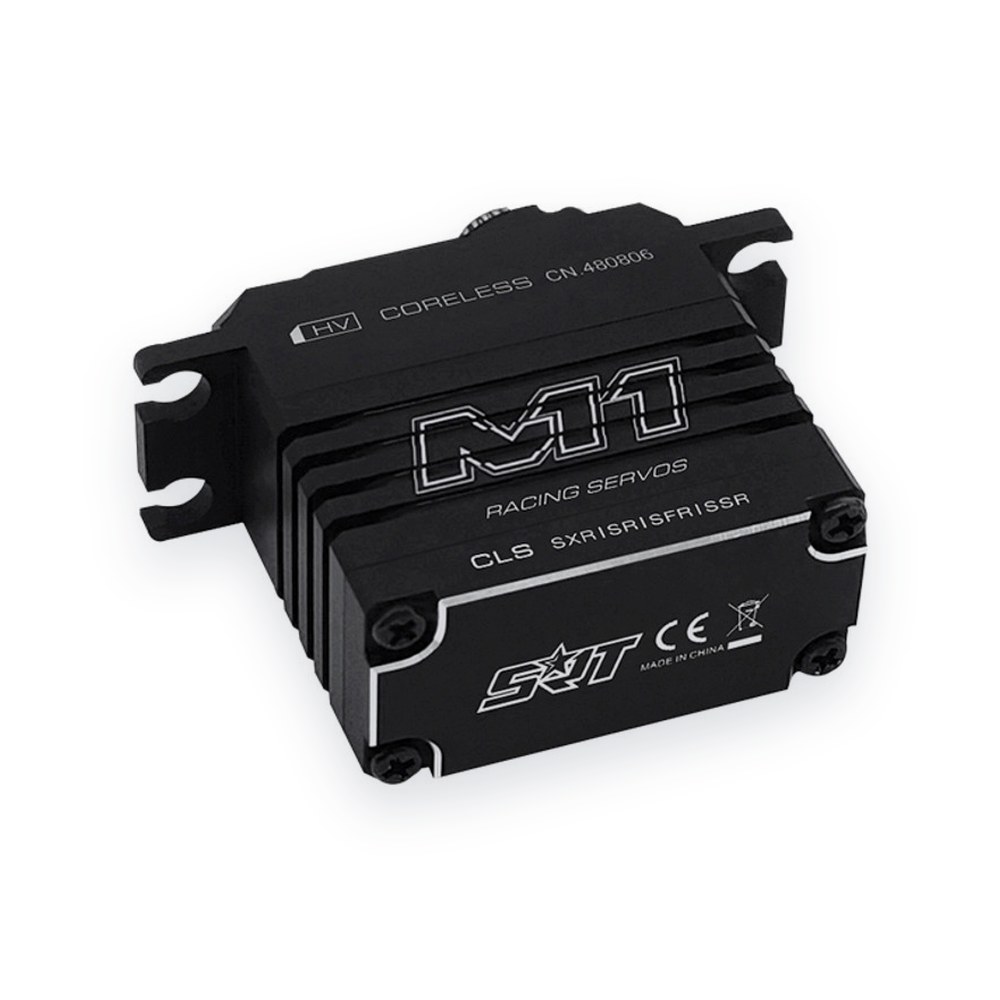

SRT-RC 1/12 Pancar M11 Hv Coreless Servo

About this part

A 1/12 pancar servo with ultra high speed operation in SXR, SFR, SR and SSR modes. It is built for efficiency and low power draw, with a 2 second dead band and a 1-year limited warranty. Application: 1/12 pancar. Fits Associated RC-12L, RC-12L3, RC-12L4, RC-12LW, RC-12R5 and RC-12R5.2.

Specifications

• Type: digital
• Bearing: dual
• Motor: coreless
• Gear: metal, titanium and steel
• Control: pulse width, 1520s at 333 Hz
• Operating voltage: 6.0 to 8.4 V DC
• Operating temperature: -10 to +60 degrees
• Speed, no load: 0.07 sec at 6.0 V, 0.065 sec at 7.4 V, 0.055 sec at 8.4 V (per 60 degrees)
• Stall torque: 7.0 kg cm (97.2 oz/in) at 6.0 V, 8.0 kg cm (111.1 oz/in) at 7.4 V, 9.0 kg cm (125.0 oz/in) at 8.4 V
• Potentiometer drive: direct

Dimensions

• 28.5 x 13.4 x 29.0 mm (1.12 x 0.53 x 1.14 in)
• Weight: 28.0 g (1.0 oz)
• Connector: JR, 170 mm wire length
