Hot Racing Suspension Travel Limit Straps, 90mm (Gunmetal) (2), SLS90T1111

About this part

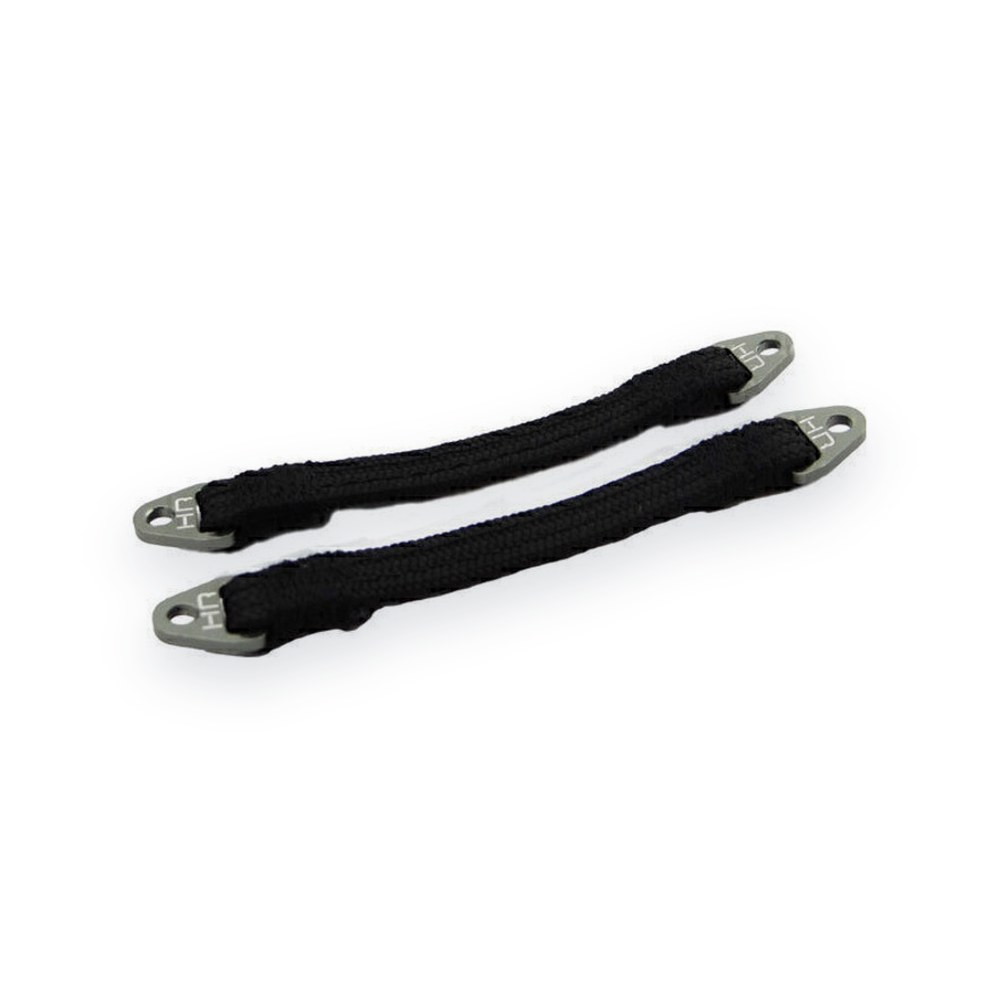

Scale functional suspension limit straps from Hot Racing for off-road R/C vehicles, including rock crawlers and racers. They limit suspension travel and take stress off the shocks. On steep grades, straps tied to the center of an axle stop the vehicle from unloading or rolling while the suspension keeps its articulation.

Features

• Woven 2-ply nylon fabric strap material
• CNC machined aluminum clevis buckles, gunmetal anodized
• INCLUDED:
• Two (2) 90mm (nominal length) limit straps

Requirements

• Installation on the vehicle; custom mounting may be required
• Mounting hardware to suit the installation

Specifications

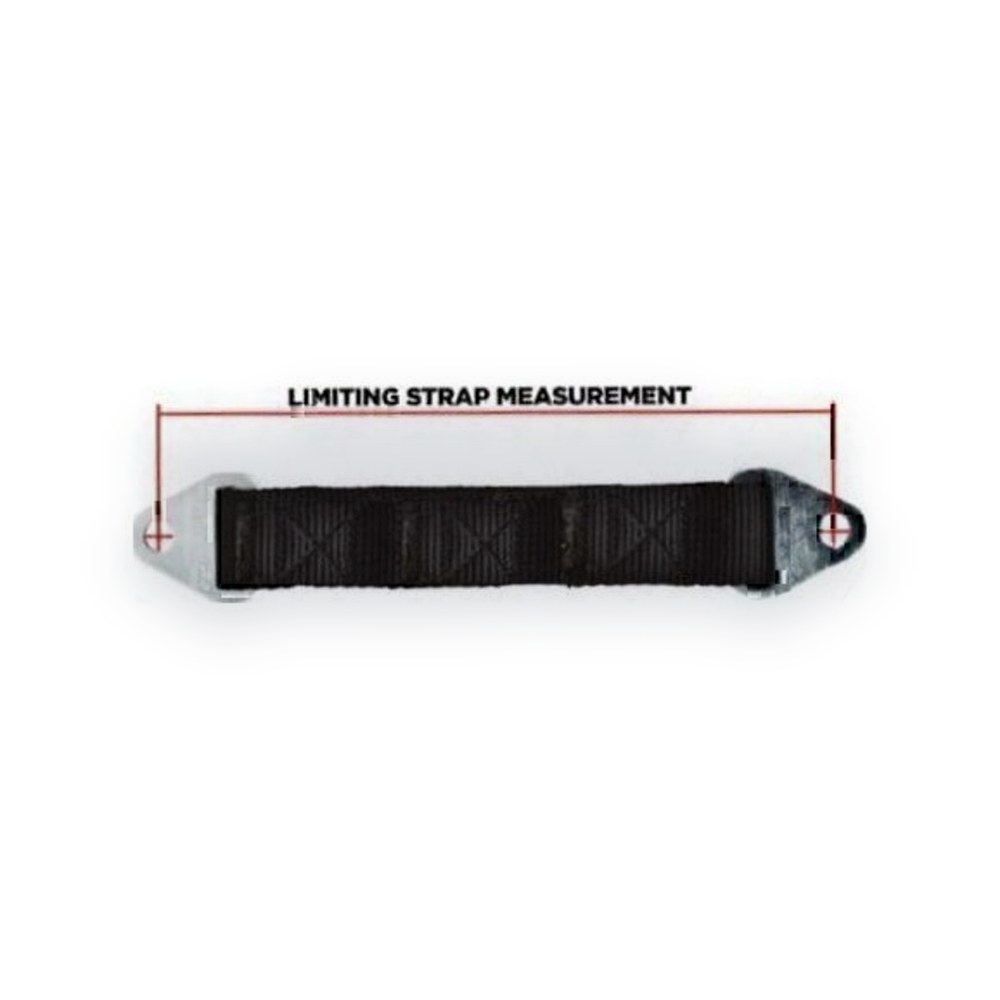

• Length eye-to-eye: 90mm (3.54 in)
• Total length end-to-end: 97mm (3.81 in)
• Nominal strap size: 8 x 2.3mm (0.31 x 0.09 in)
• Eyelet hole size: 3.3mm (0.13 in), for a 3mm screw

Notes

• Made from 200 lb test nylon with minimal stretch for a consistent strap length.
• FITS:
• Axial AX-10 Deadbolt, AX-10 Ridgecrest Crawler, AX-10 Scorpion Crawler, EXO 4WD Terra Buggy Kit, SCX-10 II, SCX-10 II 6 wheel
