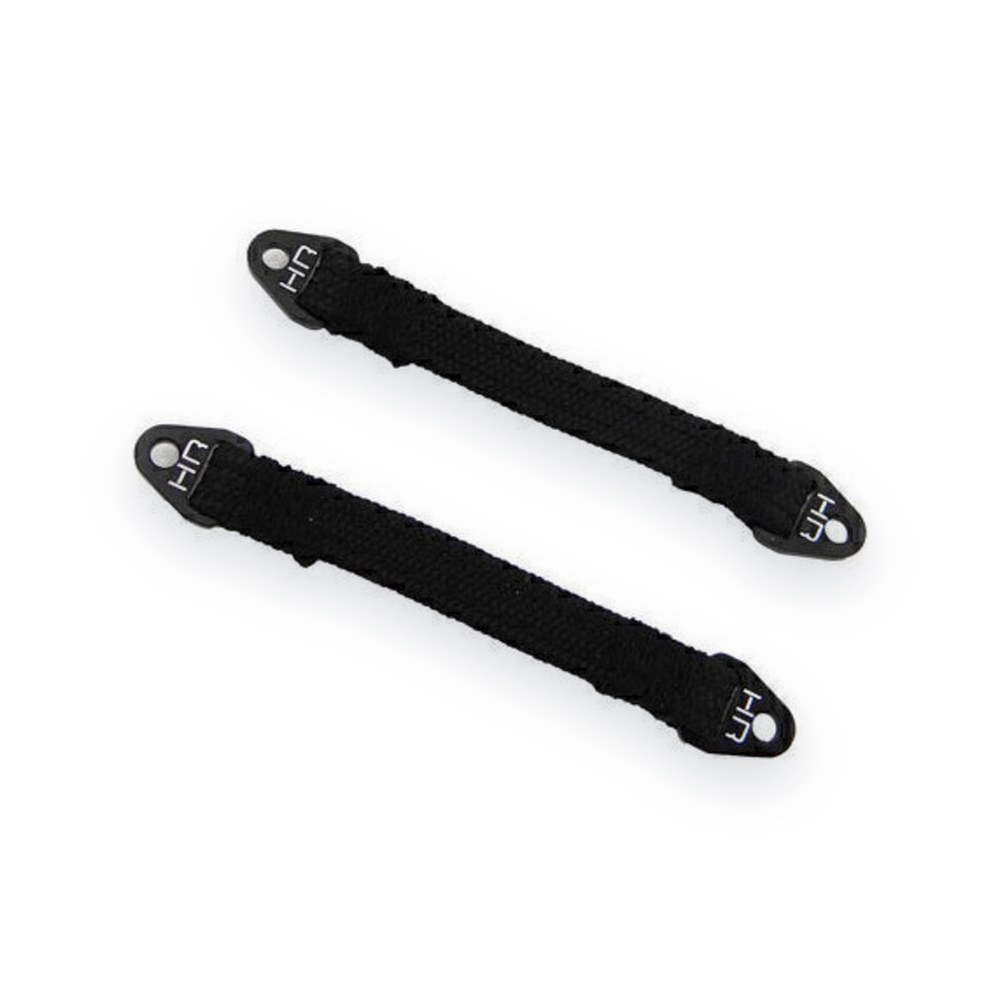

Hot Racing Suspension Travel Limit Straps, 80mm (2), SLS80T0101

About this part

Scale functional suspension limit straps from Hot Racing for off-road R/C vehicles, including rock crawlers and racers. They relieve stress on the shocks and control suspension extension. On steep grades, straps tied to the center of an axle keep the suspension from unloading and the vehicle from rolling, with articulation intact.

Features

• Woven 2-ply nylon fabric strap material
• CNC machined aluminum clevis buckles, black anodized
• INCLUDED:
• Two (2) 80mm (nominal length) limit straps

Requirements

• Installation on the vehicle; custom mounting may be required
• Mounting hardware to suit the installation

Specifications

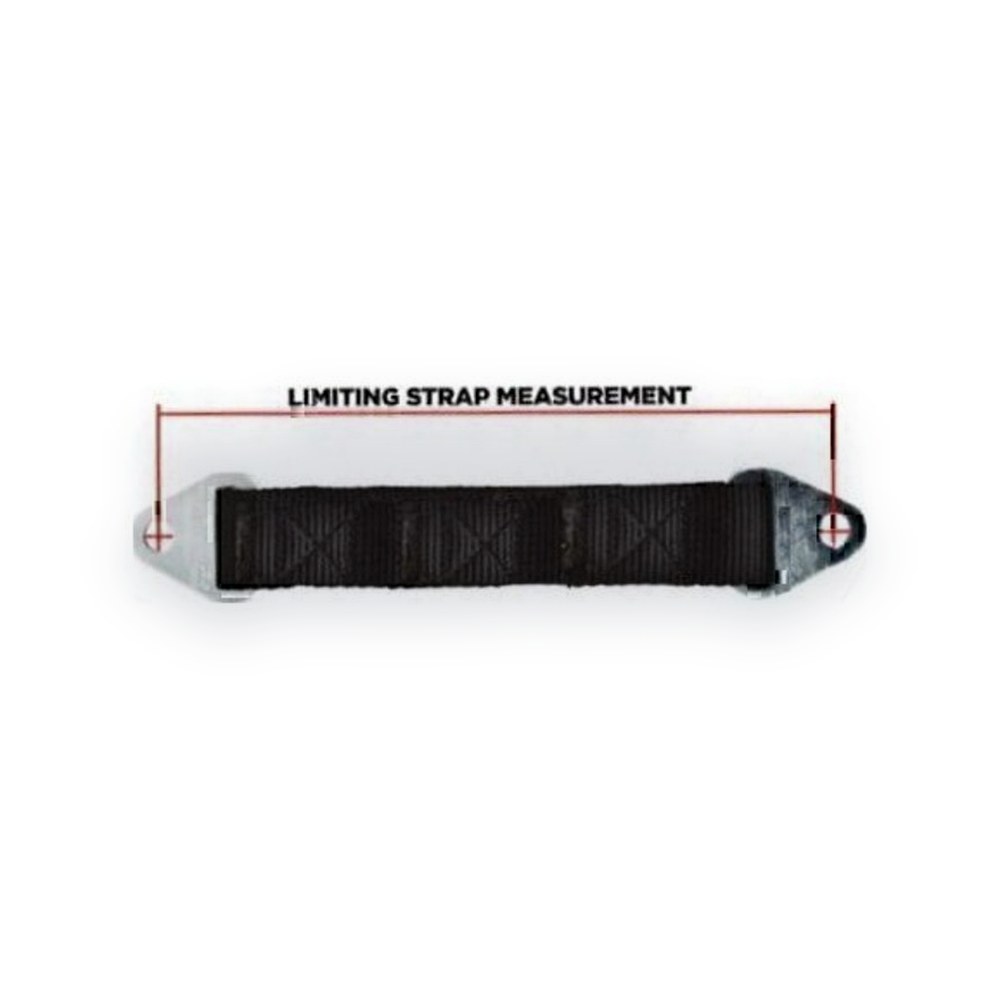

• Length eye-to-eye: 80mm (3.15 in)
• Total length end-to-end: 87mm (3.43 in)
• Nominal strap size: 8 x 2.3mm (0.31 x 0.09 in)
• Eyelet hole size: 3.3mm (0.13 in), for a 3mm screw

Notes

• Made from 200 lb test nylon with minimal stretch for a consistent strap length.
• FITS:
• Axial AX-10 Deadbolt, AX-10 Ridgecrest Crawler, AX-10 Scorpion Crawler, EXO 4WD Terra Buggy Kit, SCX-10 II, SCX-10 II 6 wheel
