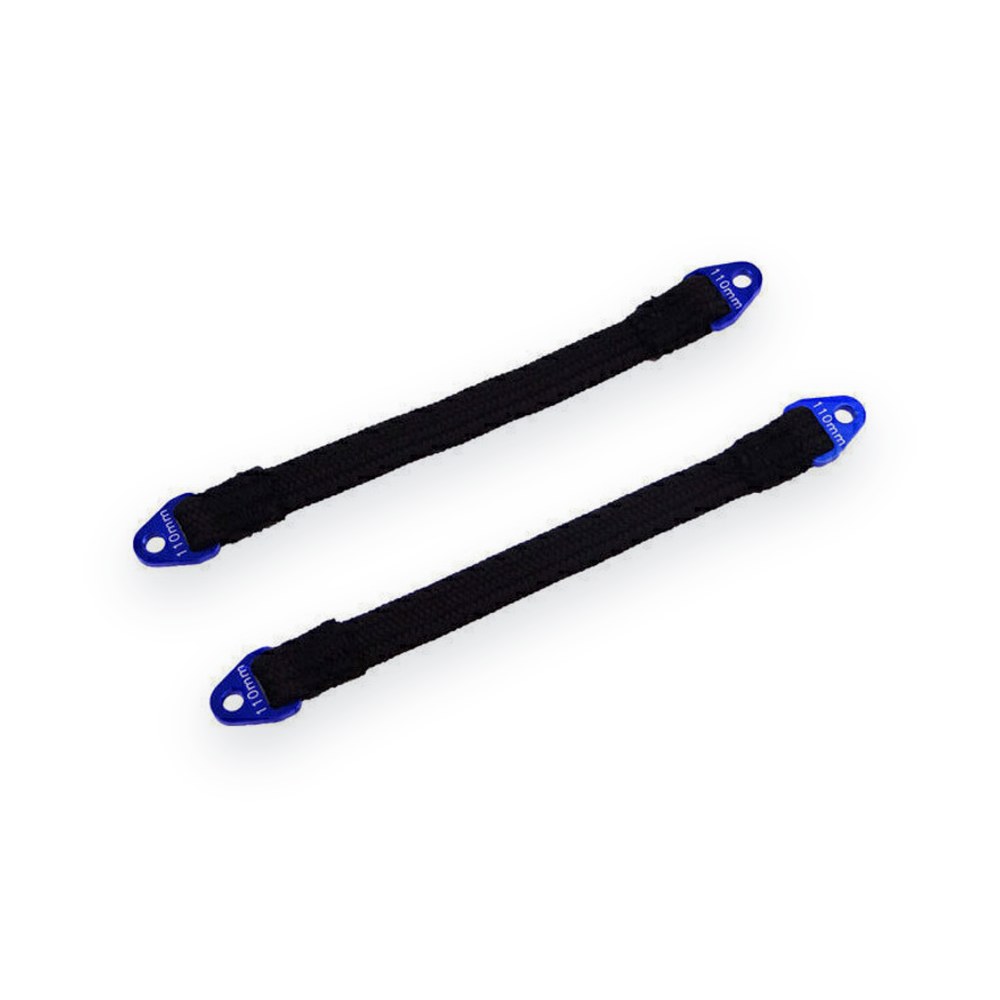

Hot Racing Suspension Travel Limit Straps, 110mm (2), SLS110T0606

About this part

Scale functional suspension limit straps from Hot Racing for off-road R/C vehicles, including rock crawlers and racers. They reduce stress on the shocks, control suspension extension, and keep the vehicle from rolling when it crawls up or down steep grades. Droop control and scale looks are also part of their use.

Features

• Woven 2-ply nylon fabric strap material
• CNC machined aluminum clevis buckles, blue anodized
• INCLUDED:
• Two (2) 110mm (nominal length) limit straps

Requirements

• Installation on the vehicle; custom mounting may be required
• Mounting hardware to suit the installation

Specifications

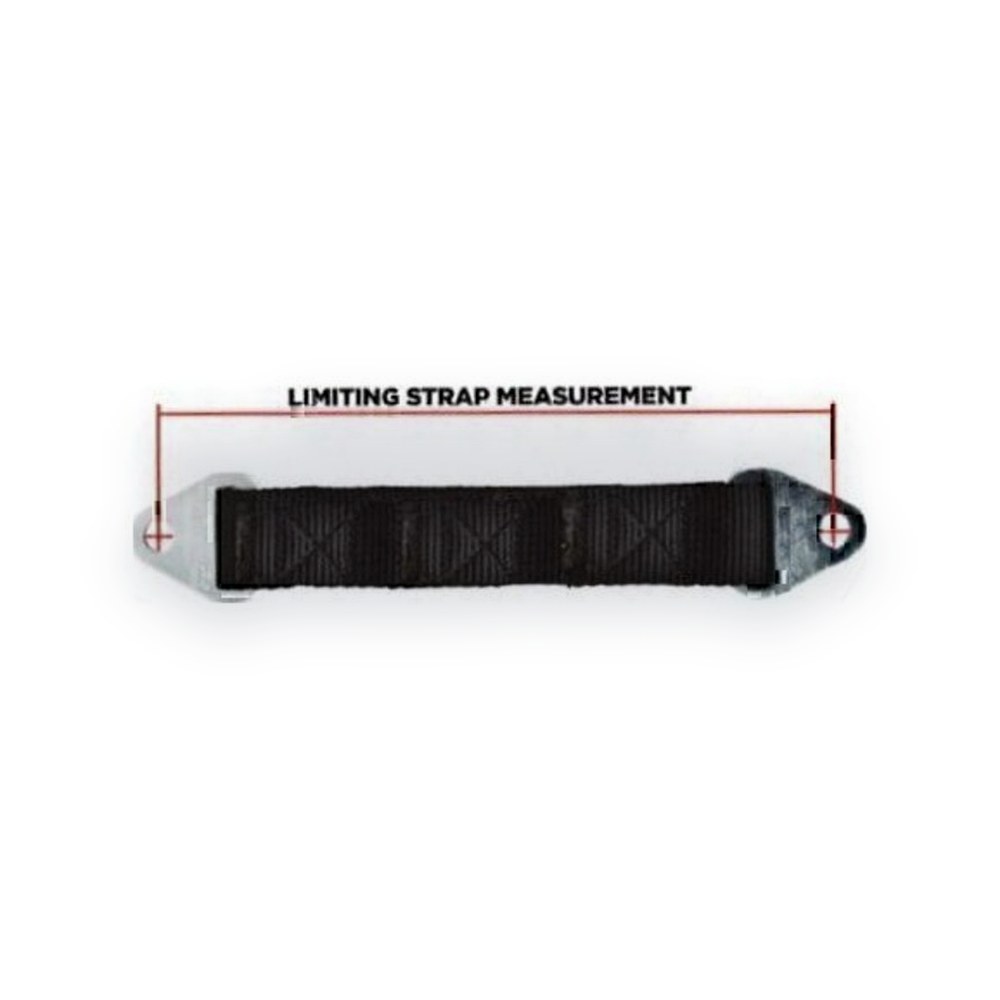

• Length eye-to-eye: 110mm (4.33 in)
• Total length end-to-end: 117mm (4.61 in)
• Nominal strap size: 8 x 2.3mm (0.31 x 0.09 in)
• Eyelet hole size: 3.3mm (0.13 in), for a 3mm screw

Notes

• Made from 200 lb test nylon with minimal stretch for a consistent strap length.
• FITS:
• Axial AX-10 Deadbolt, AX-10 Ridgecrest Crawler, AX-10 Scorpion Crawler, EXO 4WD Terra Buggy Kit, SCX-10 II, SCX-10 II 6 wheel
