Hot Racing TRA Ral/Rus/Sta 4x4 Adjustable Steering Bellcrank Servo Saver, SLF4801

About this part

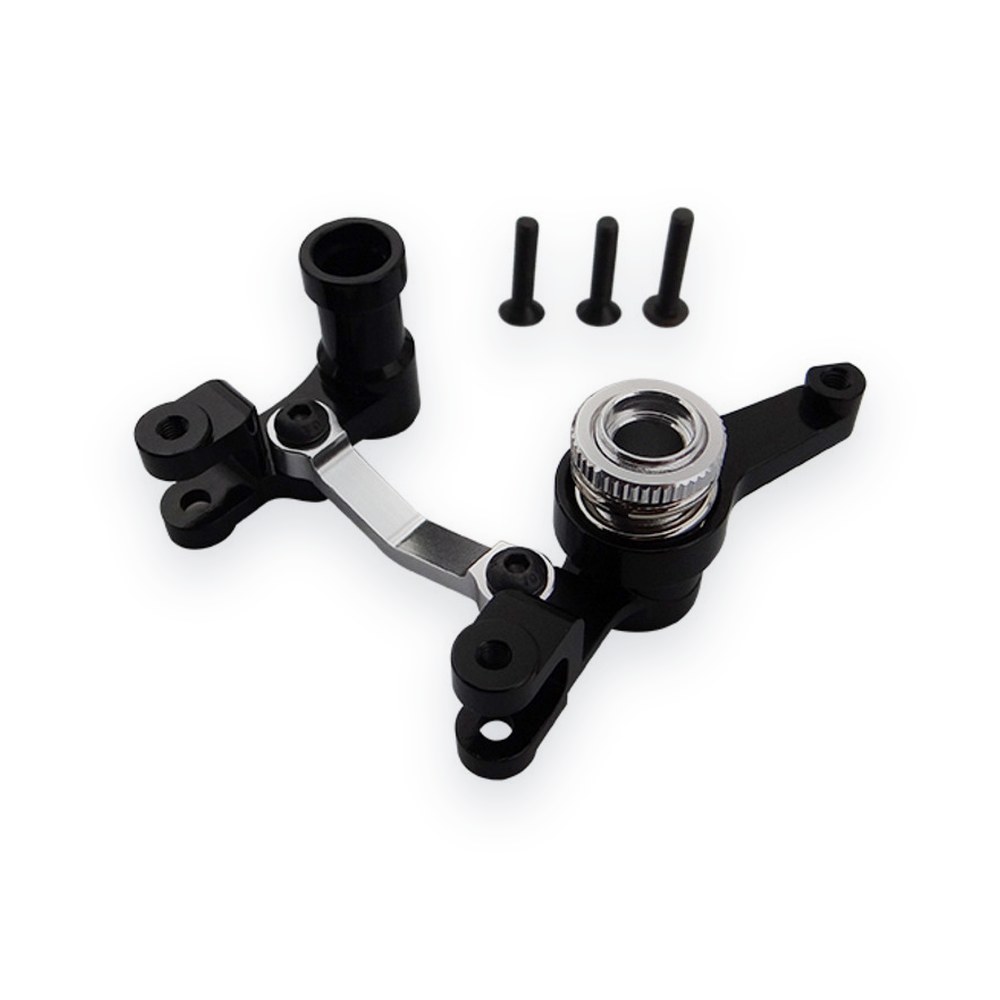

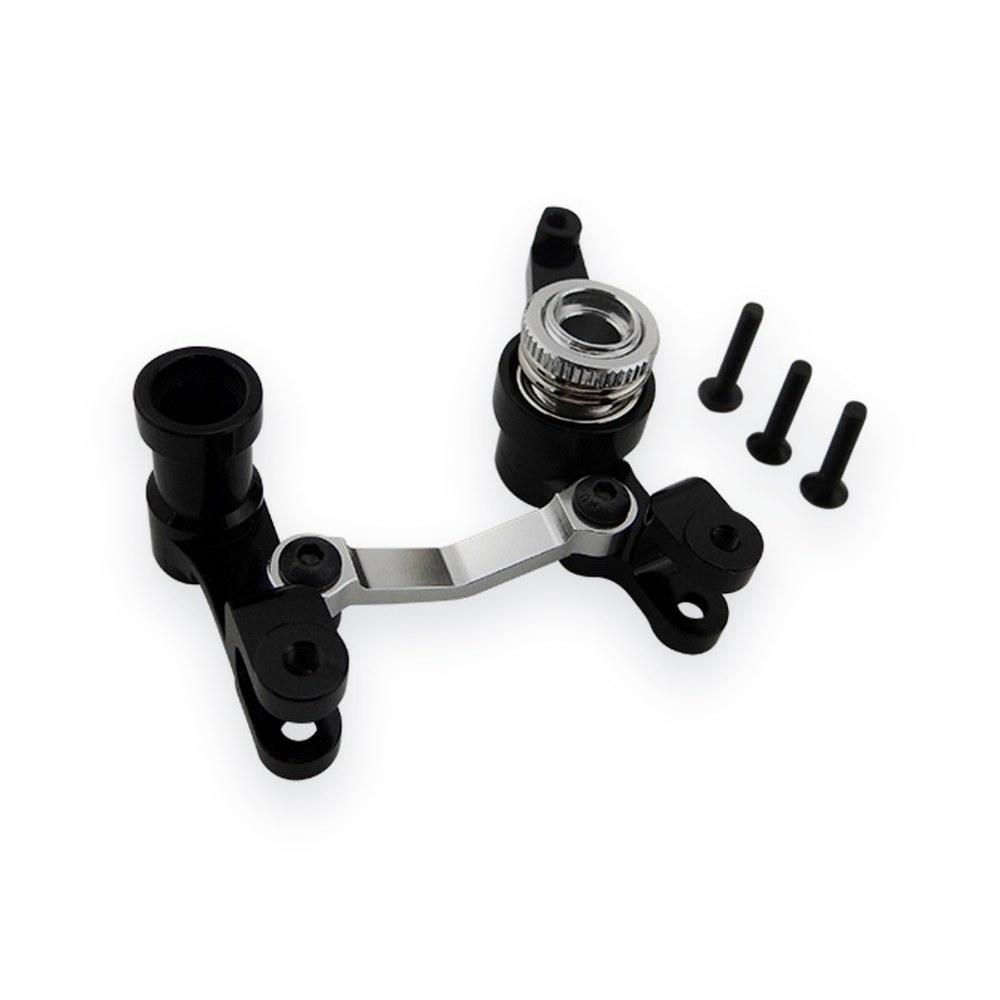

Aluminum steering servo saver bellcrank from Hot Racing, made for 1/10 scale TRA trucks. It replaces the plastic bellcrank and protects the steering servo gears when the wheels take an impact.

Features

• CNC machined aluminum construction
• Adjustable spring-loaded steering arm absorbs impact to protect the servo gears
• INCLUDED:
• One (1) steering servo saver bellcrank

Requirements

• Reuses the stock steering bellcrank bearing
• Use a removable thread-locking adhesive on screws threading into metal
• A high-pressure grease on the servo saver cam surfaces can make the action smoother

Specifications

• Brass bushing: total length 4.7mm, ID 3mm, OD 4.5mm, flange diameter 6-7mm, flange thickness 0.5mm

Notes

• Replaces TRA plastic 6845 or 6845X steering bellcranks. Replacement brass bushings are Hot Racing SLF48RB.
• FITS:
• Traxxas 1:10 Jato 4x4, Hoss 3S, LCG Slash 4x4 or Rally, Rustler 4x4, Rustler 4x4 EHD, Slash 4x4 (2024 and older)
