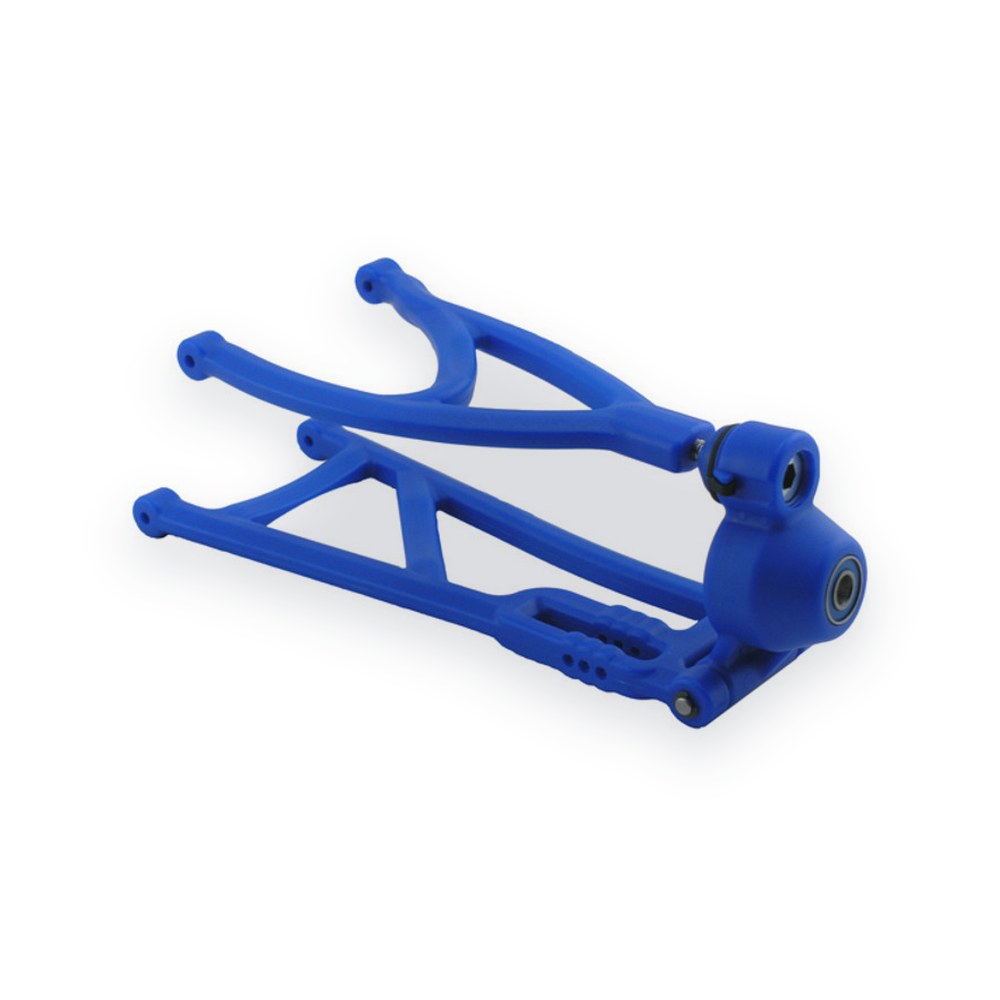

RPM R/C Products Revo True-Track Rear A-Arm Conversion, Blue (Not for 2.0)

About this part

Fits both the Revo and e-Revo, but not the Revo 2.0. This is the RPM True-Track rear A-arm conversion in blue, for all versions of the Traxxas Revo.

Features

• Removes the stock rear toe links and locks rear toe at 1.5 per side, for a total rear toe-in of 3
• Eliminates rear bump steer for better tracking over any terrain
• Replaces the lower pivot ball with a 4mm hinge pin for constant rear toe
• Keeps the stock upper pivot ball for camber adjustment
• Weighs 1-1/8 oz (32g) less than the stock components

You will receive

• Two each upper and lower rear A-arms
• Two axle carriers
• Two 4mm hinge pins
• Four E-clips
• Two 3x16mm shock mount screws
• Two aluminum pivot ball set screws
• Two Delrin pivot ball bushing cups
• Two 6x15mm sealed outer bearings
• Two 12x21mm sealed inner bearings
• Instruction sheet

Requirements

• Stock rear components must be removed.

Comments

• This True-Track system works with RPM parts RPMC8237 (front black A-arms), RPMC8238 (front blue A-arms), RPMC8222 (black front upper and lower left A-arms) and RPMC8585 (axle carriers and steering blocks). It is not compatible with the Traxxas #5356 Long Travel Rocker Set.
