Redcat Hexfly 25kg Metal Gear Waterproof Servo, Quantity 2
RER11857

Redcat Hexfly 25kg Metal Gear Waterproof Servo, Quantity 2

Redcat Radio Accessories
$53.99
In stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

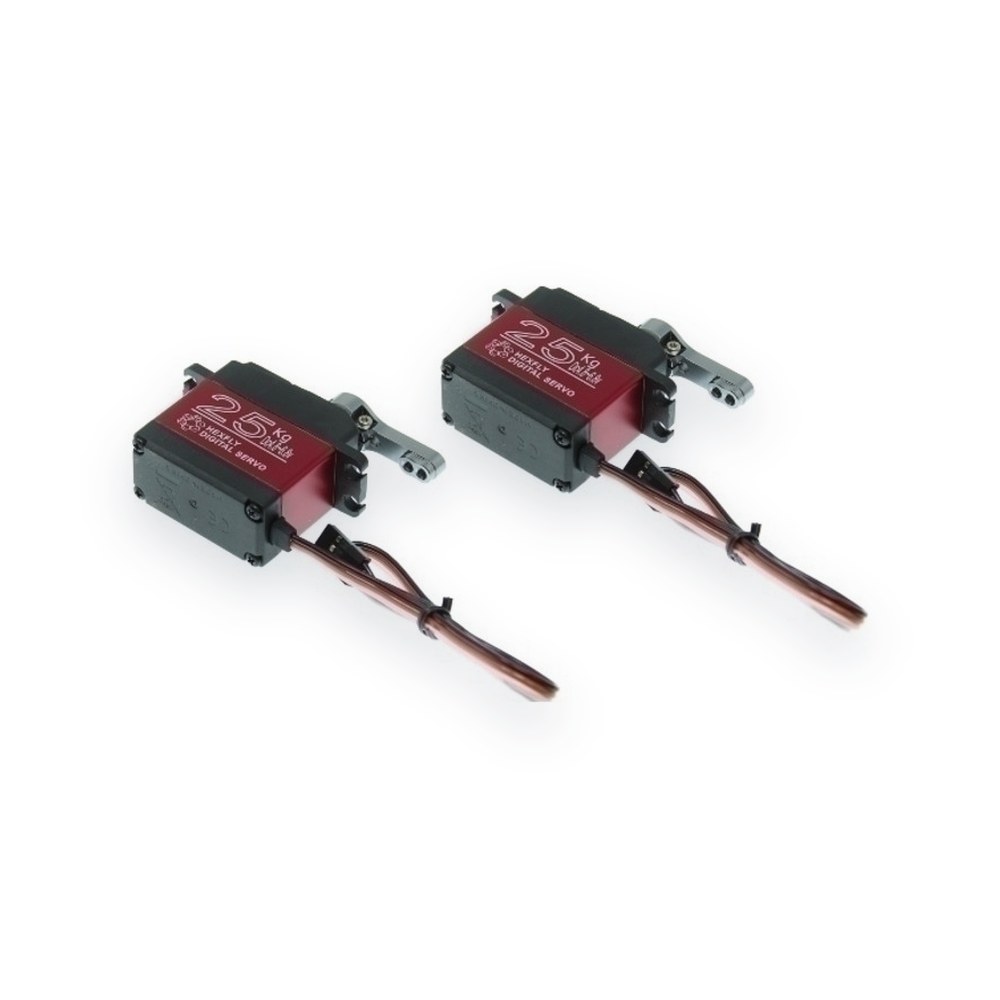

A set of two 25kg high torque waterproof digital servos from Hexfly, model HX-3225. Two servos are included with this part number. Each has metal gears, a CNC aluminum center case for heat dissipation, and an aluminum 25T servo arm. The gears are hard anodized metal for accuracy and longer life.

Specifications

  • Torque up to 25kg/cm at 6.8V
  • Operating voltage 4.8 to 6.8V
  • Speed 0.14 sec/60 degrees at 5.0V, 0.13 sec/60 degrees at 6.8V
  • Stall torque 21kg/cm at 5.0V, 25kg/cm at 6.8V
  • Dead band 3s
  • Working frequency 50 to 333Hz
  • Connector wire 300mm (11.8")
  • Gear type metal, motor type DC
  • Servo size 40 x 20 x 40.5mm
  • Weight 67g
  • 270 degree rotation
  • Fits Align T-Rex 250, 450, 500, 550, 600 and 700.

Fits

Align T-Rex 250Align T-Rex 450Align T-Rex 500Align T-Rex 550Align T-Rex 600Align T-Rex 700Arrma 1:10 2WD ADX-10 BuggyArrma 1:10 2WD Fury (old)Arrma 1:10 2WD Granite MegaArrma 1:10 2WD Raider BLX BuggyArrma 1:10 4x4 Vorteks 3S BLXArrma 1:10 Mojave Desert TruckAssociated 1:10 Apex Touring V-TypeAssociated B44.xAssociated RC-10 DS
