RC4Z-E0002RC4WD 540 Crawler Brushed Motor, 65T
RC4WD Electric Motors
$24.99
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

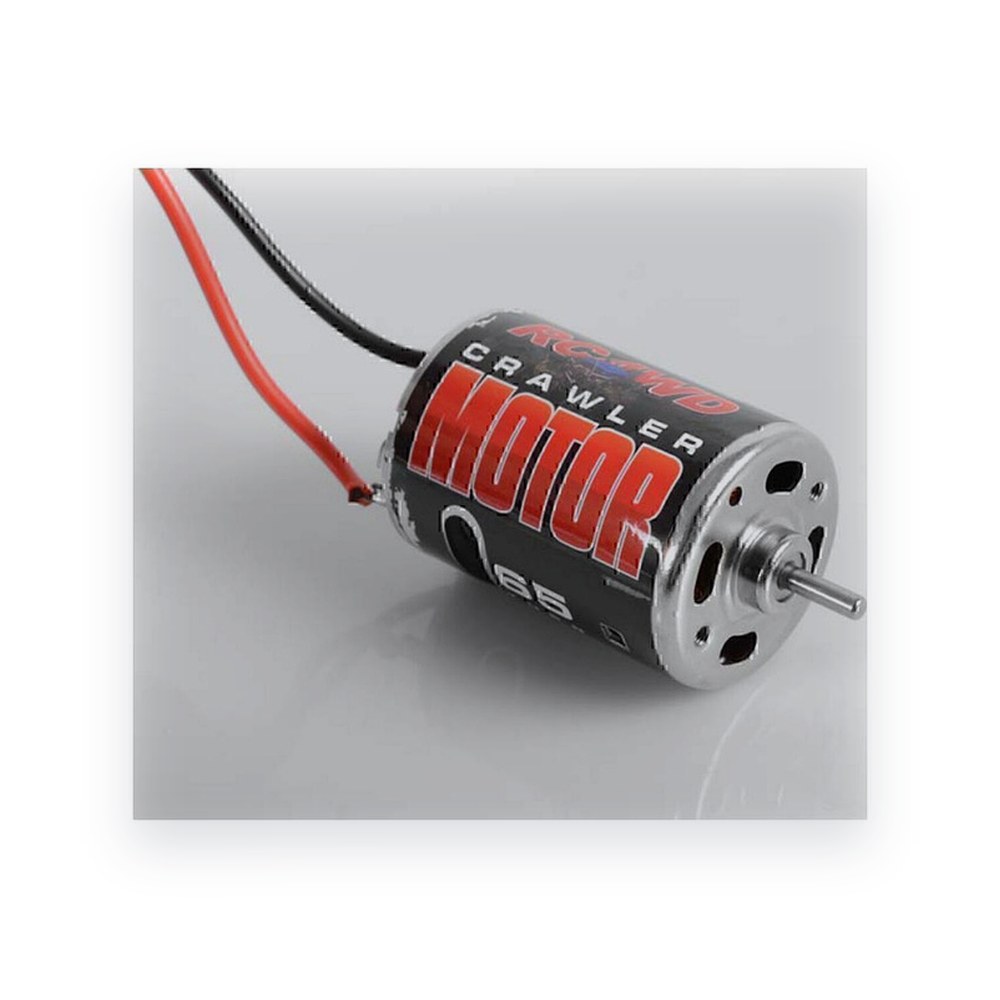

A 65T 540 size brushed boost crawler motor, built for rock crawling and scale driving. It is custom made to fit the popular rock crawlers, including the Bully, AX10, and Trail Finder.
Features
- Polished bushings
- Built-in capacitor
Contents
- 1x 65T brushed boost crawler motor
- 18AWG motor leads with connectors
Specifications
- Can length: 2.08in (52.9mm)
- Can diameter: 1.39in (35.5mm)
- Shaft length: 0.43in (11mm)
- Shaft diameter: 0.12in (3.1mm)
- RPM at no load: 7000 at 7.2V, 0.65A current (+/-10%)
- RPM at max efficiency: 5900 at 7.2V, 2.79A current
- Operating temperature: -22F to 176F (-30C to +80C)
- Motor end play: 0.50mm max
- Fits: Axial AX-10 Deadbolt, Axial AX-10 Ridgecrest Crawler, Axial AX-10 Scorpion Crawler, Axial SCX-10 II, Axial SCX-10 II 6 wheel, Axial SCX-10 II Deadbolt
